| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-29-1068 |
| Color: | Natural |
| Series: | 5569 - Mini-Fit Jr. |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit Jr. |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 4.2 mm |
| Voltage: | 600 V |
| Material: | Nylon |
| Orientation: | Right Angle |
| Keying: | No |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Matte Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Number of Contacts Loaded: | 6 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 2.540 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.78 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Matte Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 4.2 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0039291068 5569-06A1 |
| SKU: | MOL39-29-1068 |
39-29-1068
| Heilind Number: | MOL39-29-1068 |
| Manufacturer: | Molex |
| Manufacturer Number: | 39-29-1068 |
| Datasheet: | Application Specification |
| ECAD Model: | |
Description:

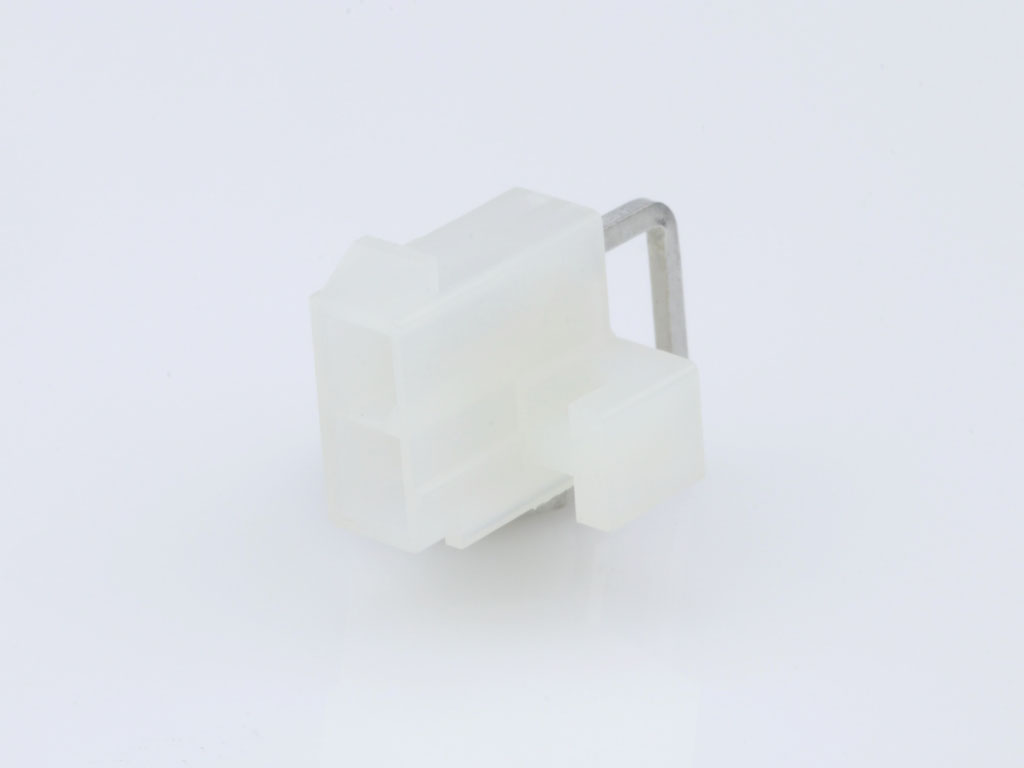

Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 6 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
More >>Specifications
Detailed Description
Introducing the Molex Mini-Fit Jr. Header, a versatile and durable component for your PCB connectivity needs. This dual-row header features a right-angle design with a convenient PCB mounting flange, making it easy to install in tight spaces. With 6 circuits and PA Polyamide Nylon 6/6 construction, it offers reliable performance in a wide range of applications. The tin (Sn) plating ensures excellent conductivity, while its natural color adds a sleek finish to your board. Rated for 13 A and 600 V, this header is suitable for power and signal transmission. Its brass contacts and through-hole termination method guarantee secure and stable connections, even in harsh environments. RoHS compliant and lead-free process capable, it meets strict environmental standards. Trust the Mini-Fit Jr. Header for high-quality, high-performance PCB connectivity.
