| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39100-1904 |
| Color: | White |
| Series: | 39100 - Eurostyle Two Screw |
| Amperage: | 20 A |
| Connector Type: | Eurostyle Two Screw |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Contact Material: | Stainless Steel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Body Orientation: | Straight |
| Pitch: | 8 mm |
| Voltage: | 300 V |
| Material: | Nylon |
| Orientation: | Vertical |
| Component Type: | One Piece |
| Operating Temperature Range: | -40 - 105 °C |
| Number of Contacts Loaded: | 4 |
| Panel Mount: | Mounting Holes Between Circuit |
| PCB Retention: | Yes |
| Polarized to Mate: | No |
| Wire Size: | 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG |
| Connector System: | Wire to Wire |
| Termination Pitch: | 8 mm |
| Lock to Mating Part: | No |
| Stackable: | No |
| Part Aliases: | 0391001904 M800-01-04-5 |
| SKU: | MOL39100-1904 |
39100-1904
Specifications
Detailed Description
Introducing the 39100-1904 Eurostyle Two Screw Barrier Terminal Block, a high-performance connectivity solution for your electrical applications. This terminal block, featuring a durable nylon body and stainless steel contacts, is designed for reliable operation in a wide range of environments, with a temperature rating from -40 to 105 °C. With four contacts arranged in two rows, and a 300V, 20A rating, it provides ample power and signal transmission capability. Panel mountable with included hardware, and suitable for wire sizes ranging from 22 to 12 AWG, it offers versatility in installation. RoHS compliant and in stock for immediate shipping, the 39100-1904 is the ideal choice for your barrier terminal block needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-09-2101 | 2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1190, Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel |  |
 | Molex 03-09-2011 | 2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 1 Circuit, Friction Lock, Natural | |
 | Molex 19-09-2029 | 2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 2 Circuits | |
 | Molex 19203-0014 | Krimptite Temp-Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier | |

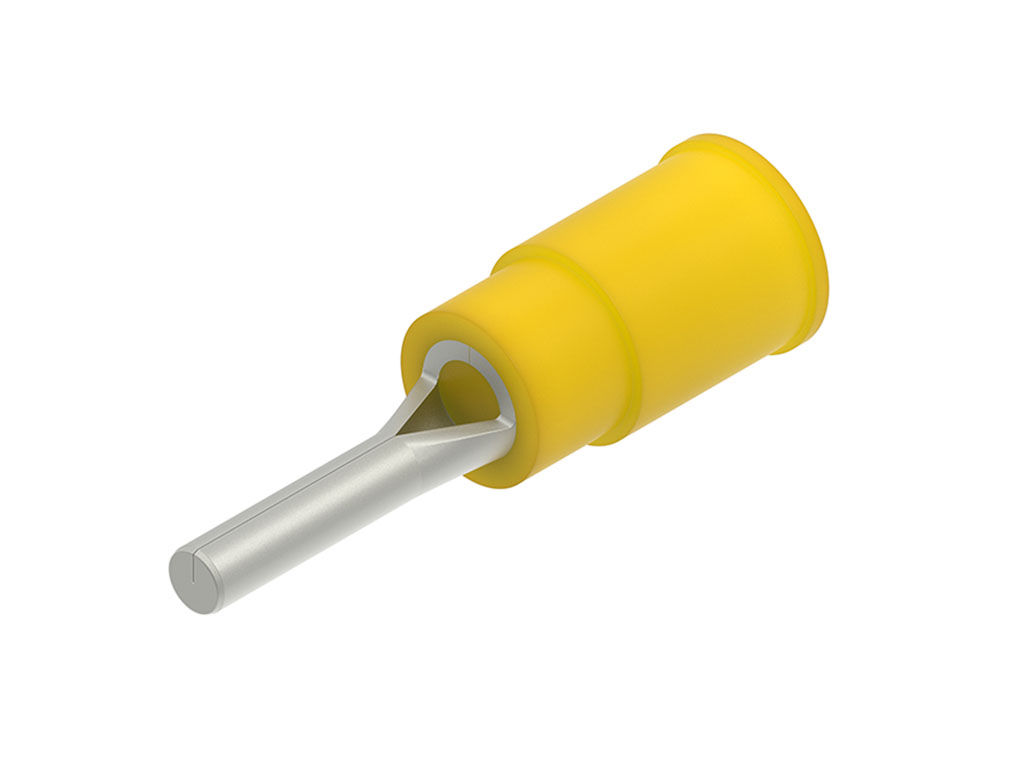

 | Molex 19212-0001 | InsulKrimp Wire Pin Terminal for 12-10 AWG Wire | |
 | Molex 39-00-0040 | Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel | |

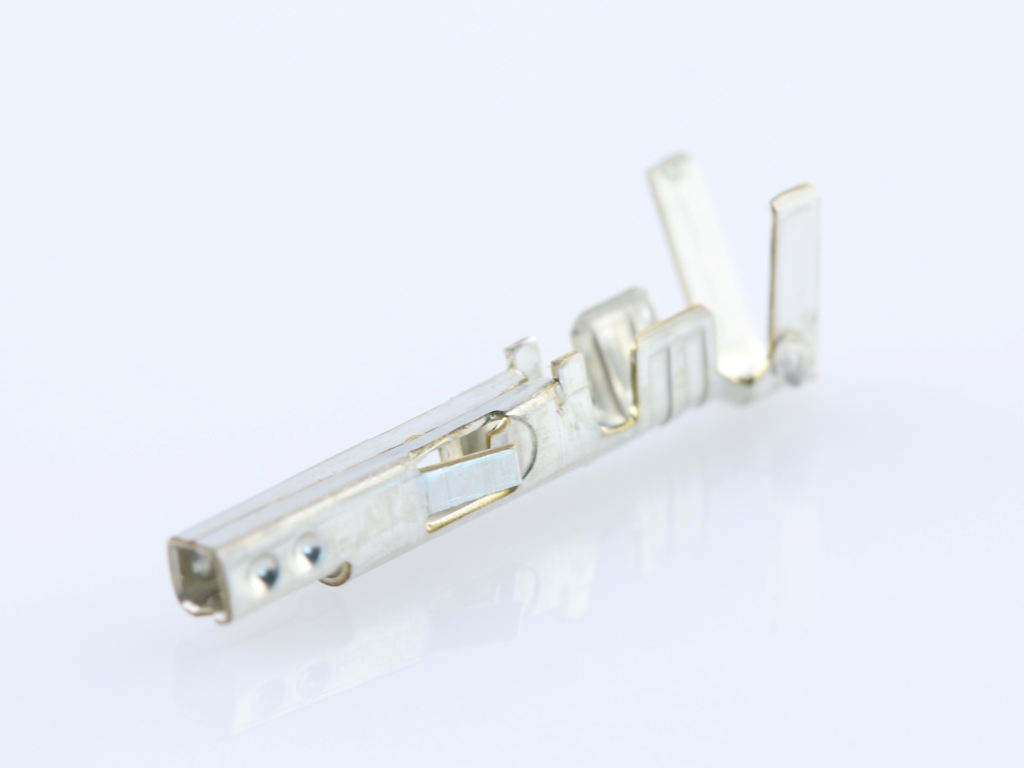

 | Molex 39-00-0207 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Nickel (Ni), 24-18 AWG, Reel | |
