03-09-2011

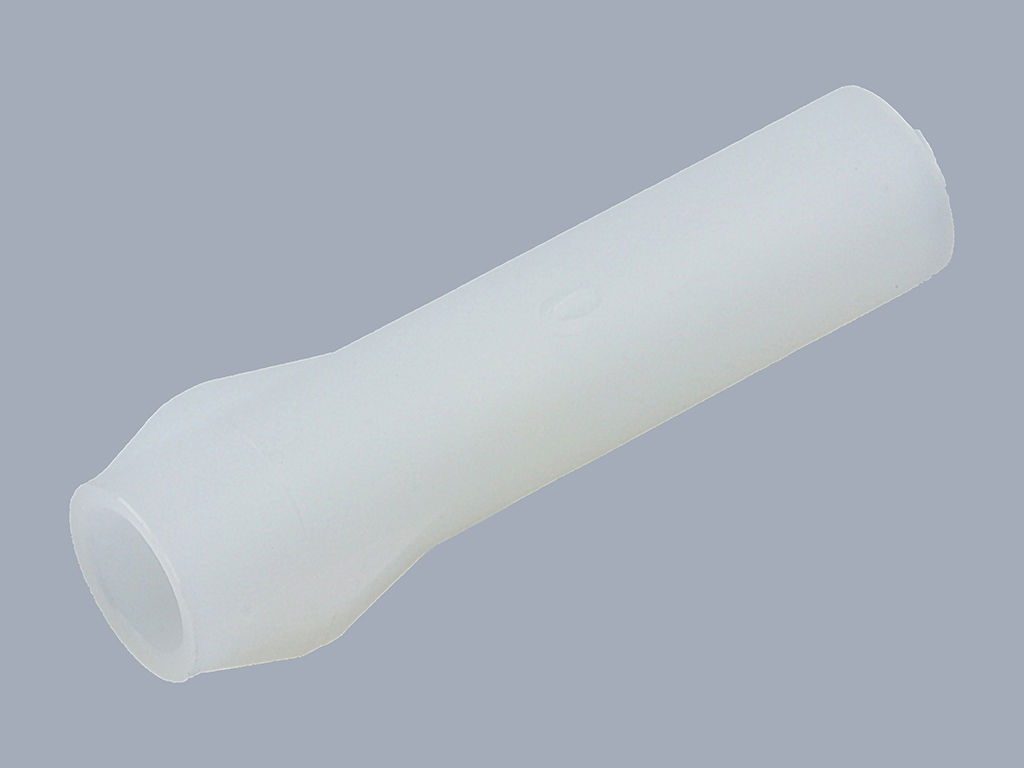

2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 1 Circuit, Friction Lock, Natural
Part Aliases: Molex 0003092011 Molex 1619-1P1A5M1A
The Standard .093" Connector System is a reliable and durable solution for power applications. With a current rating of 14 A, this connector features a single 1-row contact with a standard .093" pitch, ideal for wire-to-wire connections. Constructed with nylon housing material, it offers excellent durability and performance in a wide operating temperature range from -40 to 105 °C. Certified by CSA and UL for safety and quality, this connector is also RoHS compliant. Its natural color and stackable design make it versatile for various applications in the industrial and commercial sectors. Upgrade your power connections with the Standard .093" Connector System.
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 03-09-2011 |
| Color: | Natural |
| Series: | 1619 |
| Amperage: | 14 A |
| Connector Type: | Standard .093" |
| Gender: | Plug |
| Housing Material: | Nylon |
| Number of Contacts: | 1 |
| Number of Rows: | 1 |
| Pitch: | 5.03 mm |
| Material: | Nylon |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Connector System: | Wire to Wire |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Glow Wire Capable: | No |
| Stackable: | No |
| Product Name: | Standard .093" |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0003092011 1619-1P1A5M1A |
| SKU: | MOL03-09-2011 |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 08/07/2017 | 502368 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download |
| 03/23/2017 | 501409 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes and quantities. No changes will be made to the product as a result of the packaging change. | Download |
| 01/19/2015 | GCM 10653987 - Supplier Change. | Download |
