| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-00-0207 |
| Series: | 5556 - Mini-Fit |
| Amperage: | 9 A |
| Connector Type: | Mini-Fit |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Mating Cycles: | 30 |
| Contact Termination Plating Thickness: | 1.27 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, 24 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.3 - 3.1 mm |
| Part Aliases: | 0039000207 5556-SP |
| SKU: | MOL39-00-0207 |
39-00-0207
| Heilind Number: | MOL39-00-0207 |
| Manufacturer: | Molex |
| Manufacturer Number: | 39-00-0207 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the Molex Mini-Fit Female Crimp Terminal, a versatile and reliable solution for your power connectivity needs. This terminal, with SKU 39-00-0207, is designed for 24-18 AWG wires and features a durable construction with Tin (Sn) over Nickel (Ni) plating. With a current rating of 9 A and a voltage tolerance of 600 V, it ensures efficient power transmission in various applications. The brass contact material with Tin plating offers excellent conductivity and corrosion resistance. Suitable for wire-to-wire or wire-to-board connections, this terminal is perfect for high-density and high-vibration environments. It is RoHS compliant, guaranteeing its environmental sustainability. Upgrade your power connections with the Molex Mini-Fit Female Crimp Terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-06-6100 | 1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Series 1560, Male, with Gold (Au) Plated Brass Contact, 18-24 AWG, Reel |  |
 | Molex 08-50-0105 | KK® 396 Crimp Terminal 2478, 18-24 AWG, Reel, Brass Tin (Sn) | |
 | Molex 19004-0004 | InsulKrimp Fully Insulated Coupler, Male, for 18-22 AWG Wire, Mylar Tape | |
 | Molex 19073-0019 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 10 (M5), Length 22.00mm, Mylar Tape Carrier | |
 | Molex 35021-1001 | Board-In Right Angle Crimp Terminal 35021, Reel, Brass Tin (Sn) | |

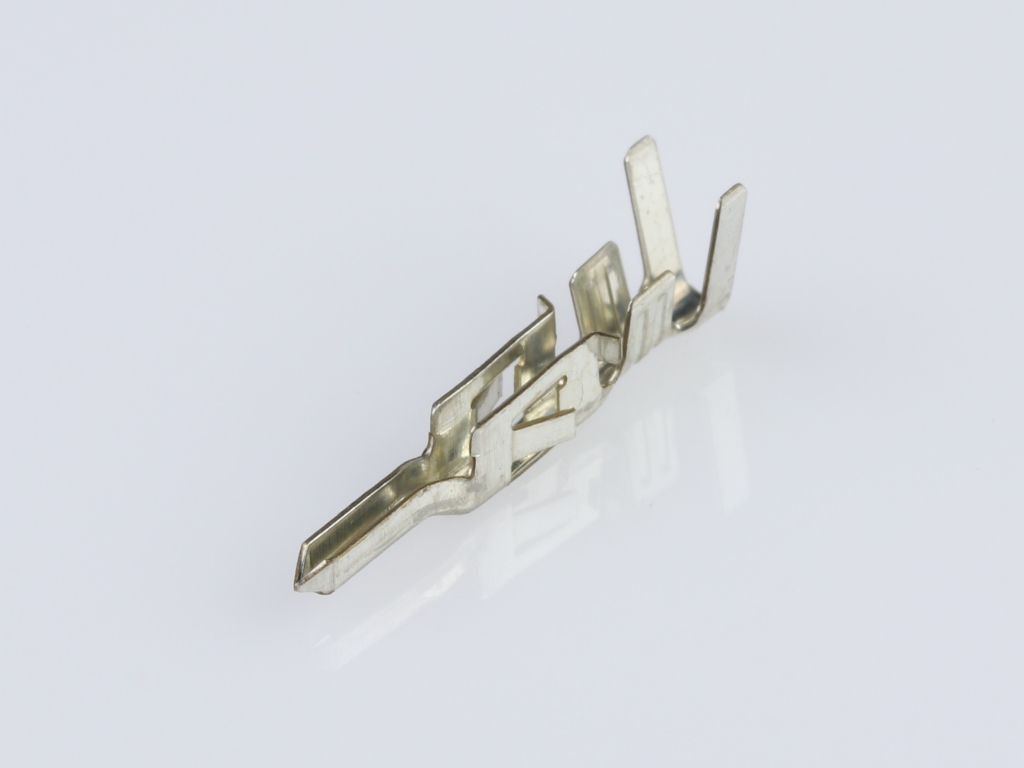

 | Molex 39-00-0121 | Mini-Fit Male Crimp Terminal, Tin (Sn) Plated Brass Contact, 24-18 AWG | |
