39-30-1082

Heilind Number:	MOL39-30-1082
Manufacturer:	Molex
Manufacturer Number:	39-30-1082
Datasheet:	Application Specification
ECAD Model:

Description:

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 8 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm Select Gold (Au) Plating

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-30-1082
Color:	Natural
Series:	5569 - Mini-Fit Jr.
Amperage:	13 A
Connector Type:	Mini-Fit Jr.
Number of Contacts:	8
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Right Angle
Pitch:	4.2 mm
Voltage:	600 V
Material:	Nylon
Orientation:	Right Angle
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.762 µm
Number of Contacts Loaded:	8
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	2.540 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.78 mm
Connector System:	Wire to Board
Contact Termination Plating:	Matte Tin
Maximum Solder Process Temperature:	240 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0039301082 5569-08A2G-210
SKU:	MOL39-30-1082

Detailed Description

39-30-1082 - Introducing the Mini-Fit Jr. Header, a versatile connectivity solution for your PCB assembly needs. This dual-row header features a convenient right-angle design with a snap-in plastic peg for secure installation. With 8 circuits and durable PA Polyamide Nylon 6/6 94V-0 construction, it offers reliable performance in a wide range of applications. The 0.76µm Select Gold (Au) plating ensures excellent conductivity and corrosion resistance, while the natural color adds a sleek finish. Rated for 13 A and 600 V, this Mini-Fit Jr. header is suitable for high-power connections. Its through-hole termination method and brass contact material guarantee robust and stable connections. With features such as PCB locking, polarized orientation, and matte tin termination plating, this header offers easy and secure installation. RoHS compliant and lead-free process capable, it meets environmental standards. Ideal for wire-to-board applications, this Mini-Fit Jr. header is a dependable choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105310-1206	Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 6 Circuits, with Kinked Pins, 0.38
	Molex 22-03-2061	KK 254 Wire-to-Board Header, Single Row, Vertical, 6 Circuits, PA Polyamide Nylon, Tin (Sn) Plating
	Molex 22-28-4020	KK 254 Breakaway Header, Vertical, 2 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm
	Molex 39-30-1022	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm Select Gold (Au) Plating
	Molex 39-30-1042	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm Select Gold (Au) Plating
	Molex 39-30-1062	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm Select Gold (Au) Plating
	Molex 42820-2224	10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right Angle, 2.36mm PCB Thickness, Silver (Ag) Plating, 2 Circuits
	Molex 43045-0214	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
	Molex 43045-0414	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
	Molex 43045-0419	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with Solder Tab, Gold, Glow-Wire Capable, Black
	Molex 43045-1414	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 14 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black

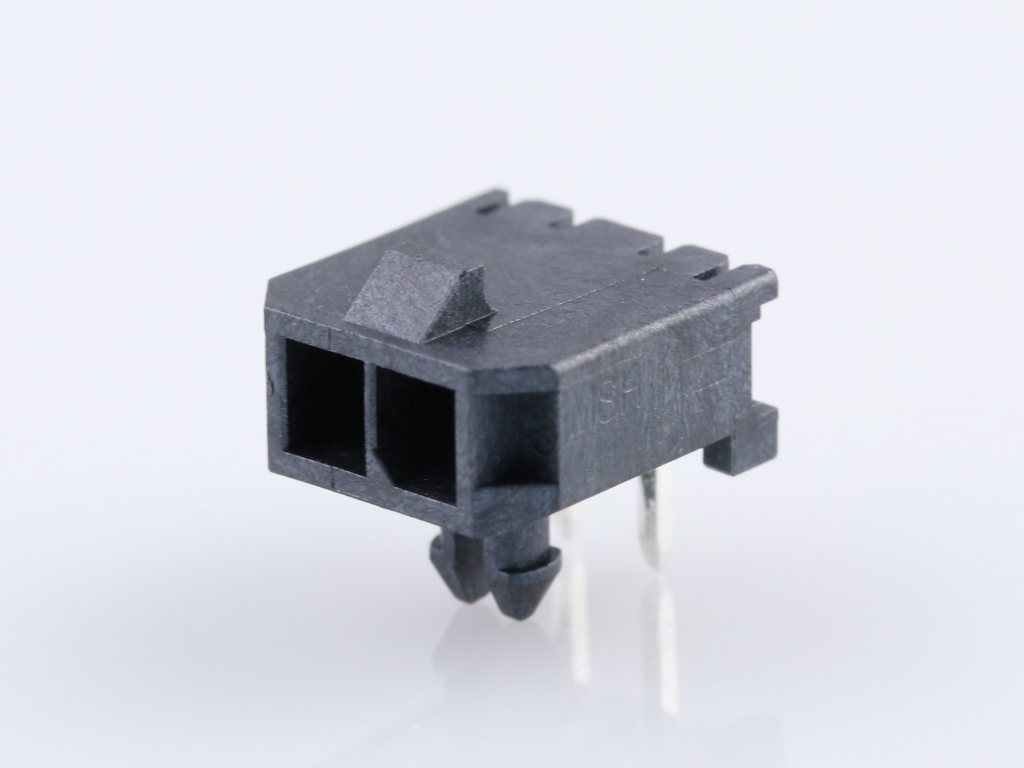

	Molex 43650-0202	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Glow-Wire Capable, Black
