| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19215-0009 |
| Series: | 19215 - Butt - VersaKrimp |
| Connector Type: | Butt, VersaKrimp |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Insulation Material: | None |
| Packaging: | Bag |
| Operating Temperature Range: | 149 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .35 - .8 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Contact Termination Plating: | Tin |
| Barrel Type: | Closed - Brazed |
| Part Aliases: | 0192150009 AS-345 |
| SKU: | MOL19215-0009 |
19215-0009
| Heilind Number: | MOL19215-0009 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19215-0009 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
The 19215-0009 is a versatile VersaKrimp Butt Splice designed for 18-22 AWG wires, offering a reliable connection for various applications. Constructed with copper contacts and tin plating, it ensures excellent conductivity and corrosion resistance. This splice, meeting LR18689 and E32244 certifications, guarantees high quality and safety standards. With a closed-brazed barrel and operating temperature of 149 °C, it provides durability and performance in demanding environments. Suitable for 22 AWG to 18 AWG wires, it accommodates .35 to .8 mm² CSA, making it a versatile solution for your connectivity needs. Rest assured, this product is RoHS compliant, further underlining its quality and environmental responsibility.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19005-0005 | InsulKrimp Fully Insulated Coupler, Female, for 14-16 AWG Wire, Box |  |
 | Molex 19036-0009 | Avikrimp Snap Plug, for 14-16 AWG Wire, Mylar Tape, 22.78mm Length | |
 | Molex 19071-0136 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19160-0002 | Closed-End Insulated Splice for 10-16 AWG Wire | |
 | Molex 19160-0009 | Closed-End Insulated Splice for 12-22 AWG Wire | |
 | Molex 19164-0013 | Perma-Seal Butt Splice for 18-22 AWG Wire | |
 | Molex 19164-0044 | Perma-Seal Butt Splice for 14-16 AWG Wire | |
 | Molex 19193-0167 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19193-0219 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0305 | VersaKrimp Ring Tongue Terminal, 2 AWG | |

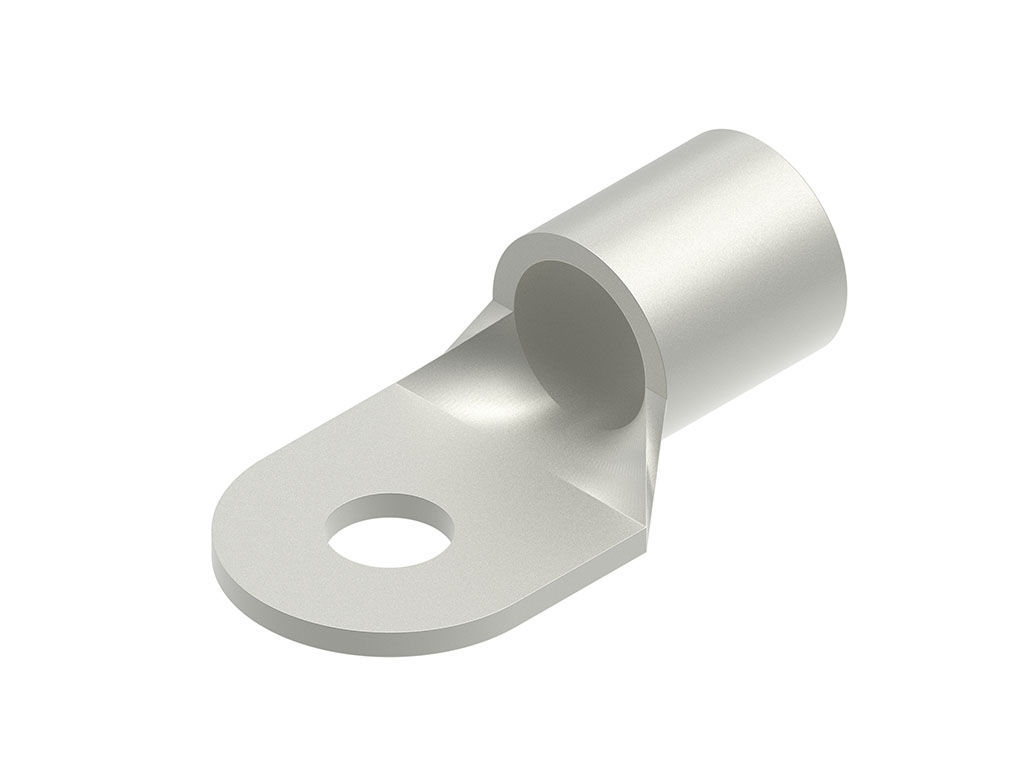

 | Molex 19193-0358 | VersaKrimp Ring Tongue Terminal for 3/0 AWG Wire | |
 | Molex 19202-0013 | NylaKrimp Butt Splice for 18-22 AWG Wire | |
 | Molex 19215-0013 | Step Down Butt Splice for 14-22 AWG Wire | |
 | Molex 19215-0018 | VersaKrimp Butt Splice for 14-16 AWG Wire | |
 | Molex 19215-0023 | Step Down Butt Splice for 10-16 AWG Wire | |

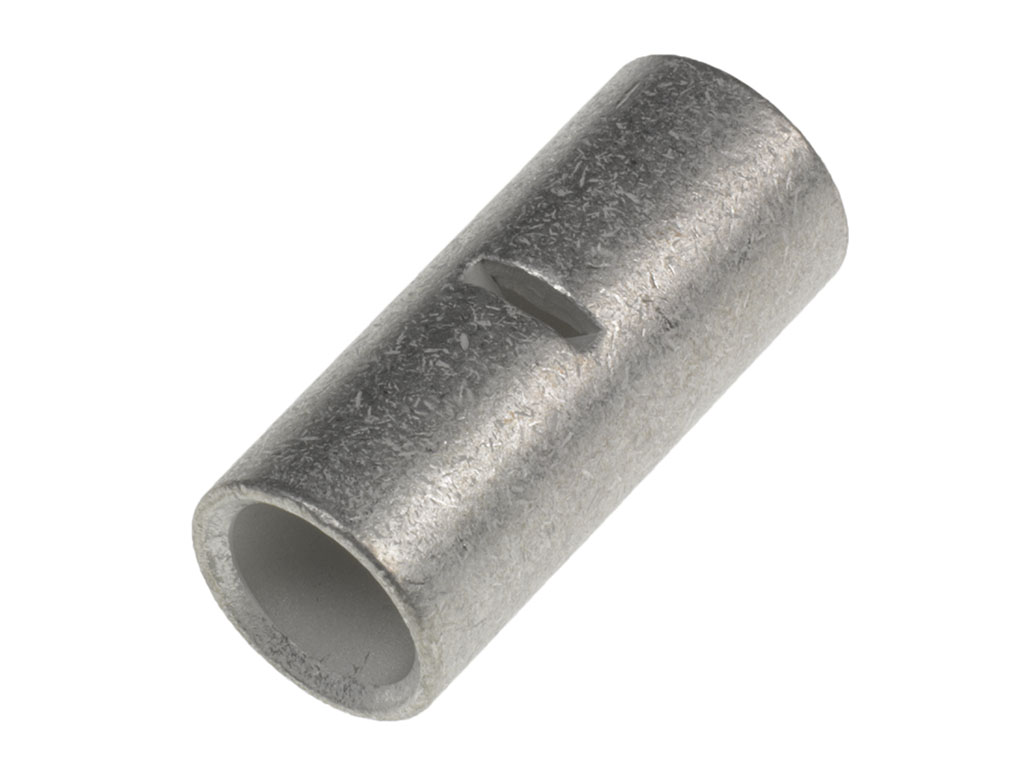

 | Molex 19215-0028 | VersaKrimp Butt Splice for 10-12 AWG Wire | |
