| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19071-0180 |
| Color: | Natural |
| Series: | 19071 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | PVC |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 8 AWG |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 6.7 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190710180 D-656-10X |
| SKU: | MOL19071-0180 |
19071-0180
Specifications
Detailed Description

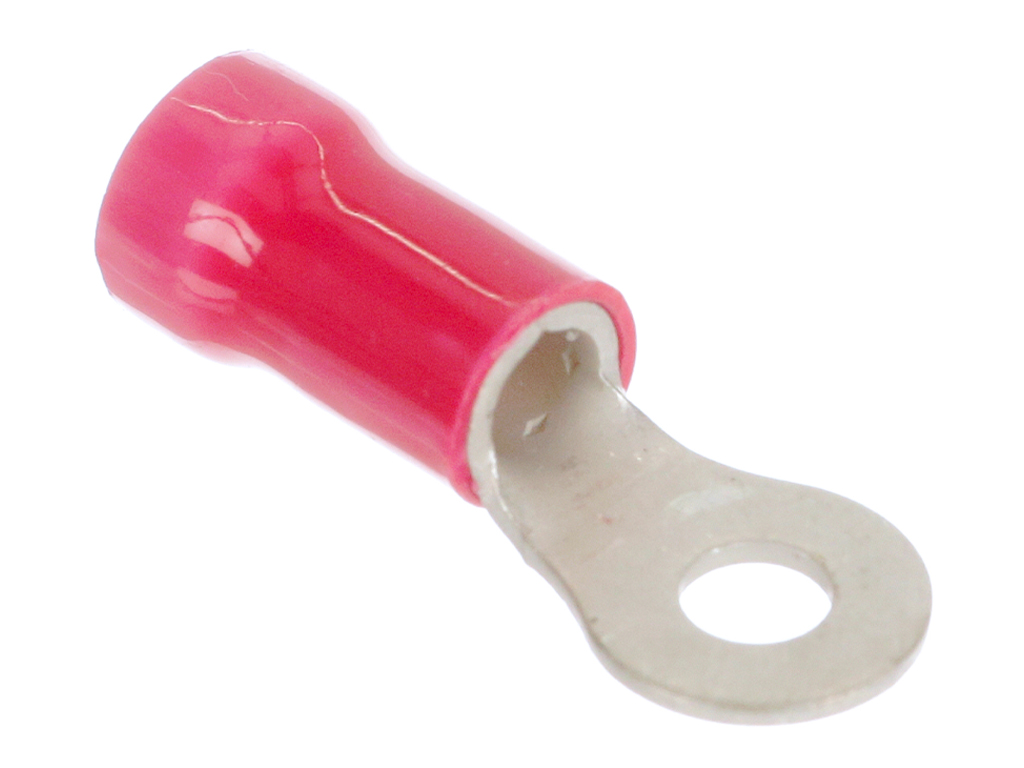

The 19071-0180 is a high-quality InsulKrimp Ring Tongue Terminal designed for 8 AWG wire connections. Featuring a durable tin contact plating and PVC insulation, this terminal ensures reliable performance in various applications. With a stud size of 10 (M5) and CSA/LR18689 and UL/E32244 certifications, it guarantees both mechanical and electrical integrity. The closed barrel design and 6.7mm wire insulation diameter provide secure and efficient installation. Packaged in a convenient bag, this natural-colored terminal is RoHS compliant, making it an environmentally friendly choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19070-0012 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire |  |
 | Molex 19070-0015 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19071-0140 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19071-0178 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 35363-0360 | 2.00mm Pitch Sherlock Wire-to-Board Header, Right Angle, with Positive Lock, 3 Circuits | |
 | Molex 501647-1000 | 2.00mm Pitch iGrid Wire-to-Board Crimp Terminal, Female, 22-26 AWG, Reel | |
 | Molex 55755-0419 | 2.00mm Pitch MicroTPA Wire-to-Board Header, Vertical, Shrouded, Kinked PC Tail, with Inner Positive Lock, 4 Circuits | |
 | Molex 59370-8100 | 2.00mm Pitch Crimp Terminal, Female, 22-28 AWG, Bag | |
 | Molex 87760-1816 | 2.00mm Pitch Milli-Grid Header, Right Angle, Through Hole, 18 Circuits, 0.38 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 03/04/2019 | 506690 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change. | Download | |||
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19071-0180 |
| Other Names: | 0190710180 D-656-10X |
