| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19070-0015 |
| Series: | 19070 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | PVC |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .35 - .8 mm² |
| Wire Insulation Diameter: | 3.7 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190700015 AA-221-10X |
| SKU: | MOL19070-0015 |
19070-0015
Specifications
Detailed Description
Introducing the 19070-0015, a high-quality InsulKrimp Ring Tongue Terminal designed for 18-22 AWG wires. This versatile connector features a durable tin contact plating and is suitable for studs with a size 10 (M5). With PVC insulation and a CSA agency certification, it ensures reliable performance in various applications. The closed barrel design accommodates wire sizes ranging from 22 AWG to 18 AWG, with a wire insulation diameter of 3.7 mm. Rest assured, this terminal is RoHS compliant and UL agency certified, guaranteeing both quality and environmental responsibility. Upgrade your connectivity solutions with the 19070-0015.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19011-0035 | InsulKrimp Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 18-22 AWG, Red Insulator, Loose |  |
 | Molex 19070-0017 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19070-0086 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19070-0090 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |

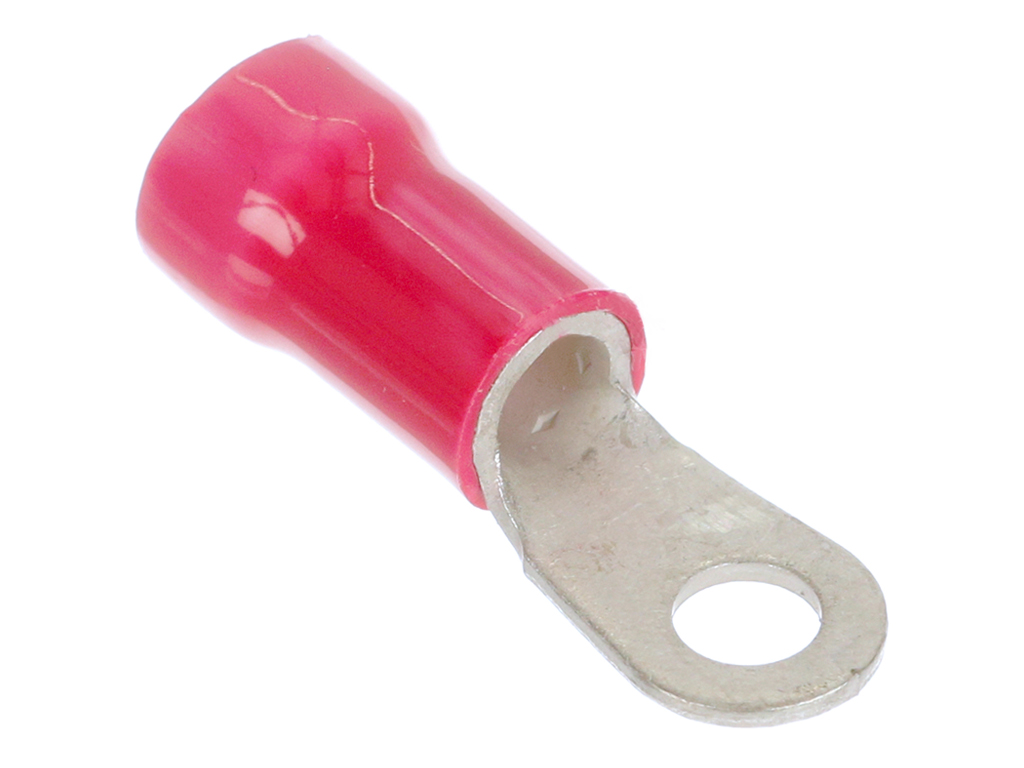

 | Molex 19071-0180 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19193-0099 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 35363-0360 | 2.00mm Pitch Sherlock Wire-to-Board Header, Right Angle, with Positive Lock, 3 Circuits | |
 | Molex 39-00-0040 | Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-00-0220 | Mini-Fit Male Crimp Terminal, Phosphor Bronze, Gold (Au), 24-18 AWG | |
 | Molex 39-01-2020 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-2025 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2045 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2085 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2105 | Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-4031 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Natural | |

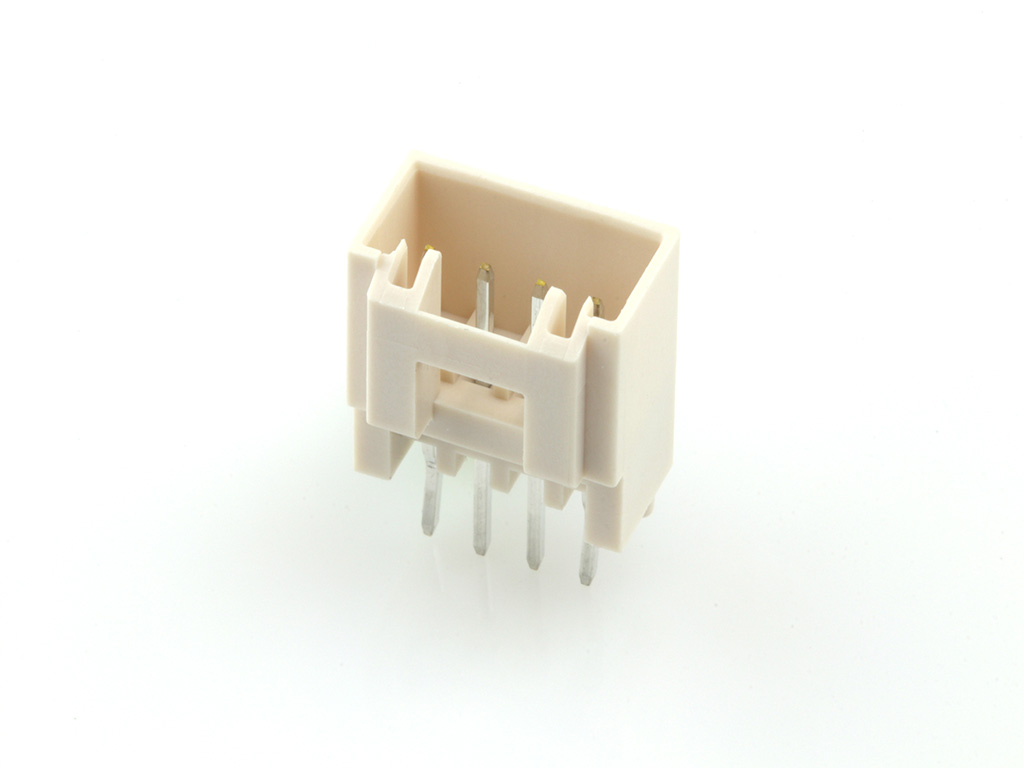

 | Molex 55755-0419 | 2.00mm Pitch MicroTPA Wire-to-Board Header, Vertical, Shrouded, Kinked PC Tail, with Inner Positive Lock, 4 Circuits | |
 | Molex 59370-8100 | 2.00mm Pitch Crimp Terminal, Female, 22-28 AWG, Bag | |
 | Molex 64320-1301 | CMC Wire Cap for 48 Circuits and 28 Circuits, CMC Receptacle Mat Sealed | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19070-0015 |
| Other Names: | 0190700015 AA-221-10X |
