172709-0002

Heilind Number:	MOL172709-0002
Manufacturer:	Molex
Manufacturer Number:	172709-0002
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 2 Circuits, White

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Kits RJ Connector Accessories
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172709-0002
Color:	White
Series:	172709 - Mini-Fit TPA2 - TPA - Term Pos Assurance
Accessory Type:	Terminal Position Assurance
Connector Type:	Mini-Fit TPA2, TPA - Term Pos Assurance
Number of Contacts:	2
Number of Rows:	1
Material:	Nylon
Component Type:	Terminal Position Assurance
Operating Temperature Range:	-40 - 105 °C
Number of Contacts Loaded:	2
Lock to Mating Part:	Yes
Part Aliases:	1727090002
SKU:	MOL172709-0002

Detailed Description

Introducing the 172709-0002, a vital accessory for Mini-Fit TPA2 connectors. This Terminal Position Assurance (TPA) Retainer ensures secure and reliable connections, featuring a 4.20mm Pitch and UL 94V-0 certification for enhanced safety. Crafted from durable Nylon with low-halogen content, it's ideal for a wide range of applications. With 2 Circuits and a sleek White design, this TPA Retainer not only provides functionality but also adds a touch of professionalism to your setup. Engineered for efficiency, it locks to the mating part, guaranteeing proper alignment and contact integrity. RoHS compliant and meticulously tested, it's a trusted solution for your connectivity needs. Upgrade your RJ Connector system with the 172709-0002 and experience seamless performance like never before.

Frequently Bought Together

Product	Part #	Description	Stock

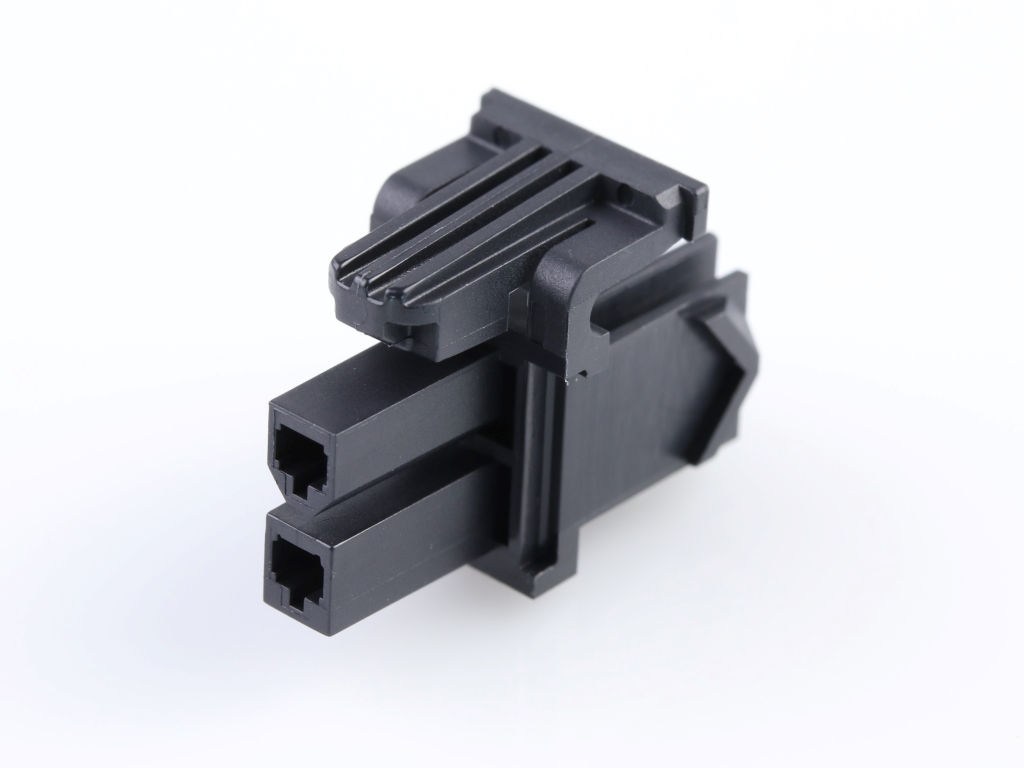

	Molex 172708-0002	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 2 Circuits
	Molex 172708-0004	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 4 Circuits
	Molex 172708-0006	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits
	Molex 172708-0008	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits
	Molex 172708-0010	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits
	Molex 172708-0016	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 16 Circuits

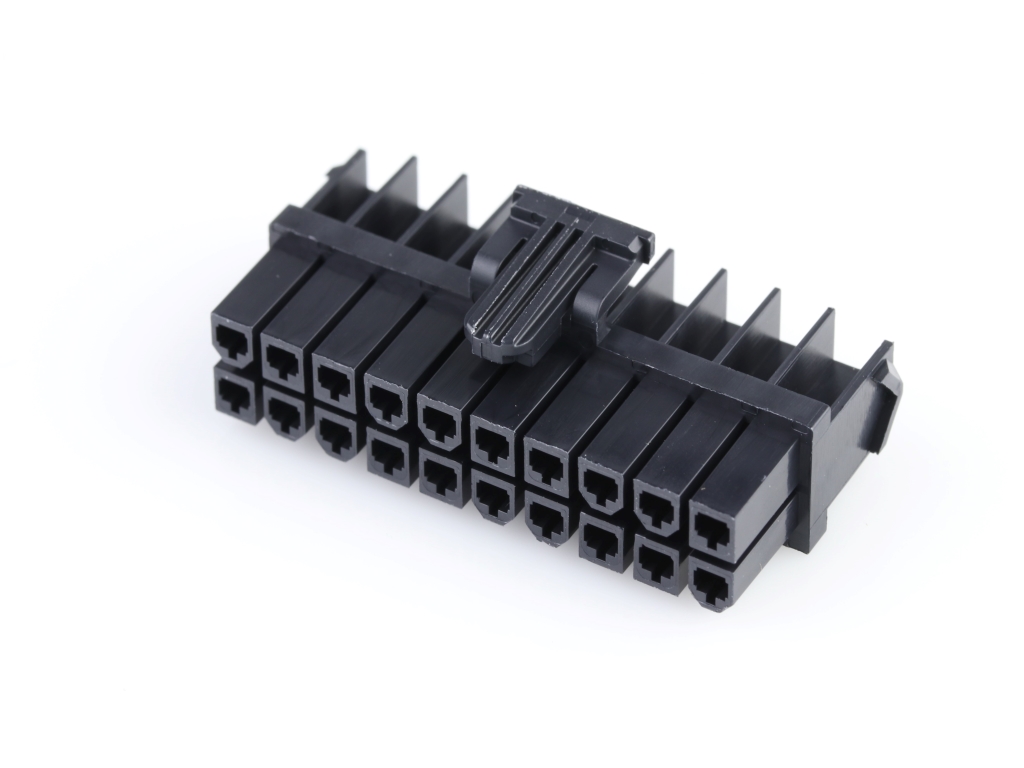

	Molex 172708-0020	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 20 Circuits

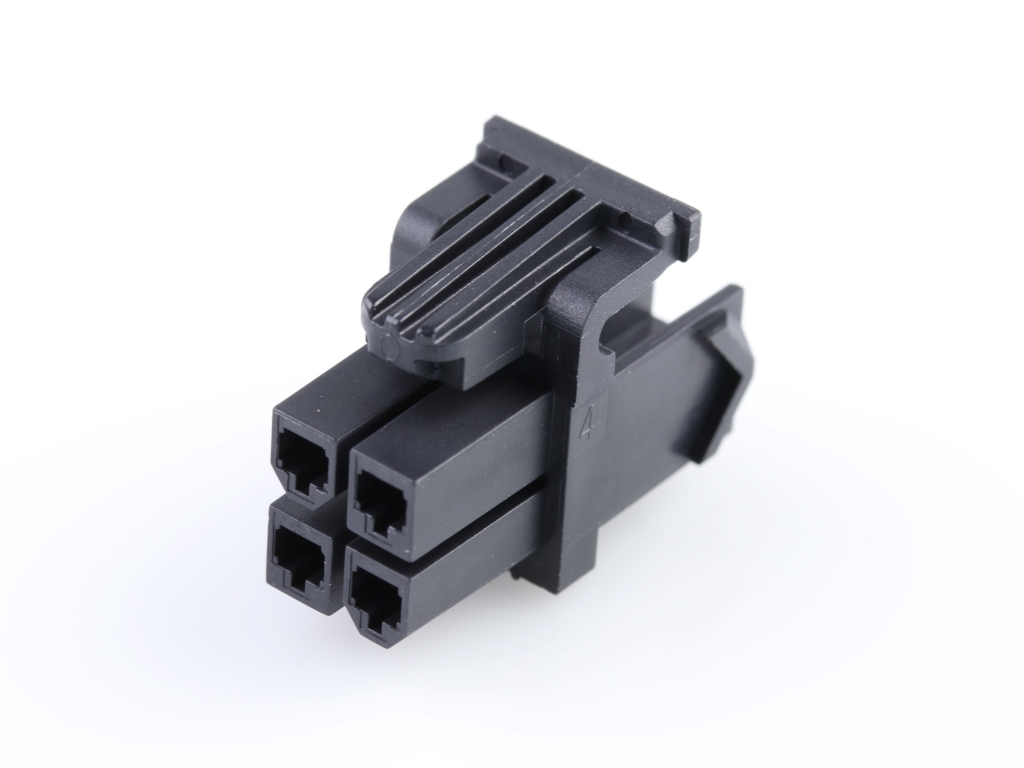

	Molex 172708-0104	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 4 Circuits
