| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172264-3006 |
| Color: | Black |
| Series: | 172264 - Ultra-Fit |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Material: | Nylon |
| Component Type: | Terminal Position Assurance |
| Operating Temperature Range: | -40 - 120 °C |
| Number of Contacts Loaded: | 6 |
| Lock to Mating Part: | Yes |
| Product Name: | Ultra-Fit |
| Part Aliases: | 1722643006 |
| SKU: | MOL172264-3006 |
172264-3006
| Heilind Number: | MOL172264-3006 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172264-3006 |
| Datasheet: | Application Specification |
| ECAD Model: | |
Description:

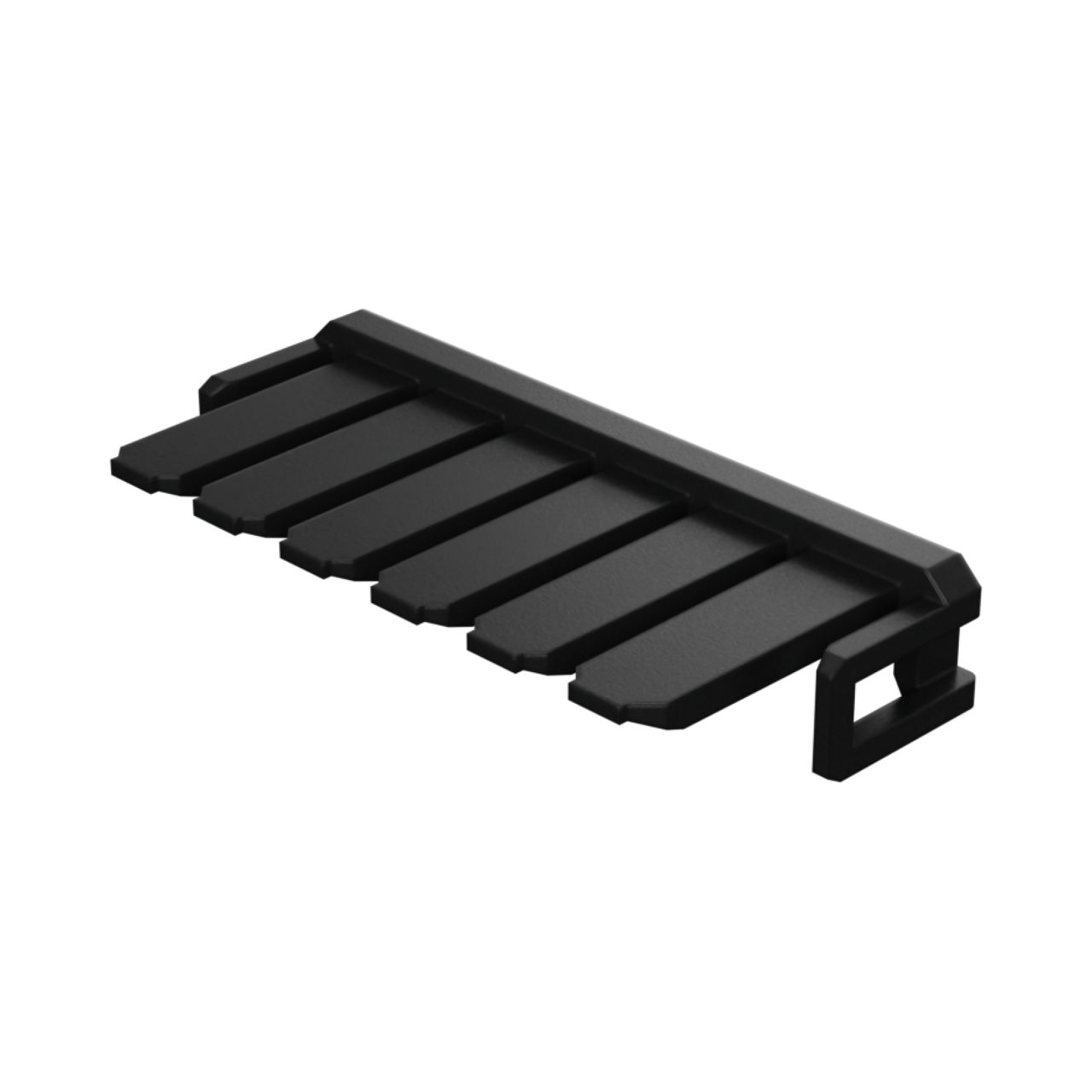

Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 6 Circuits, Black
More >>Specifications
Detailed Description
Introducing the Molex Ultra-Fit Tangless Terminal Position Assurance (TPA), designed for reliable connectivity in high-power applications. With a 3.50mm pitch and 6 circuits, this black TPA ensures secure mating of connectors, preventing accidental disconnection. Made of durable nylon, it can withstand operating temperatures ranging from -40 to 120 °C. Each of the 6 contacts is loaded for maximum performance, with a locking feature to secure it to the mating part. Part of the Ultra-Fit Connector System, this TPA is RoHS compliant, making it ideal for a wide range of applications in various industries. Trust the Ultra-Fit TPA for robust and dependable power connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105300-1300 | Cut Strip - Nano-Fit Crimp Terminal, Female, 0.76 |  |
 | Molex 105307-2206 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 6 Circuits, Natural, Glow-Wire Capable | |
 | Molex 172253-7023 | Ultra-Fit Tangless Crimp Terminal, Female, Tin (Sn) Plating, 16-18 AWG | |
 | Molex 172256-3106 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 6 Circuits, Black, Glow-Wire Capable | |
 | Molex 172256-4102 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 2 Circuits, Natural, Glow-Wire Capable | |
 | Molex 172258-3112 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Black, Glow-Wire Capable | |
 | Molex 172258-4112 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Natural, Glow-Wire Capable | |
 | Molex 172264-1003 | Ultra-Fit Terminal Position Assurance (TPA) Wire-to-Board Retainer, 3.50mm Pitch, 3 Circuits, Black | |
 | Molex 172264-4002 | Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 2 Circuits, Natural | |
 | Molex 172264-4003 | Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 3 Circuits, Natural | |
 | Molex 33481-0301 | MX150 Sealed Male Connector, Single Row, 3 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 39-01-2020 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-4031 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Natural | |
 | Molex 50-57-9402 | SL Crimp Housing, Single Row, Version G, Positive Latch, 2 Circuits, Black | |
 | Molex 503149-1000 | 1.50mm Pitch CLIK-Mate Wire-to-Board Housing, Dual Row, Positive Lock, 10 Circuits, Beige | |
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 172264-3006 |
| Other Names: | 1722643006 |
