172258-3112

Heilind Number:	MOL172258-3112
Manufacturer:	Molex
Manufacturer Number:	172258-3112
Datasheet:	Product Literature
ECAD Model:

Description:

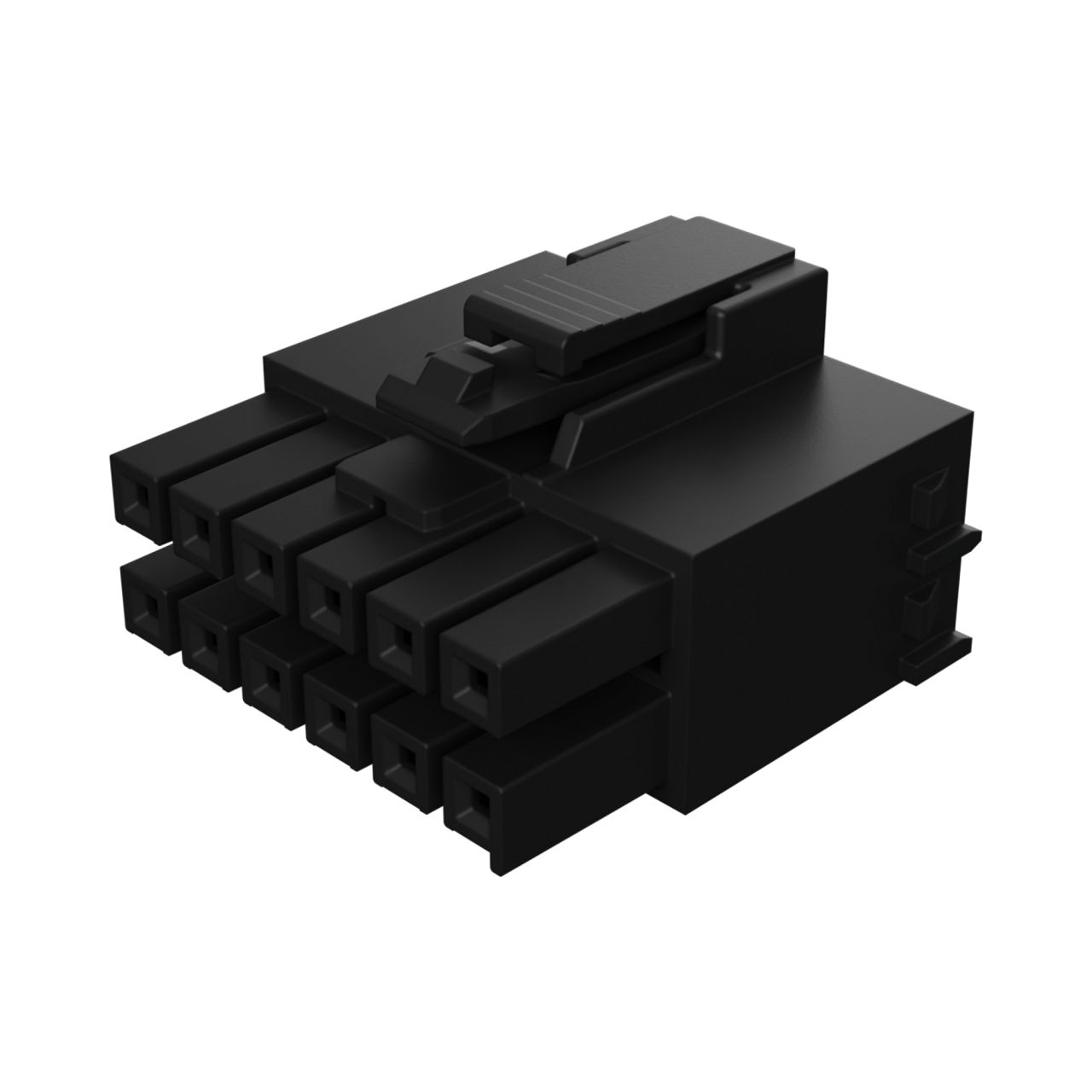

Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Black, Glow-Wire Capable

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172258-3112
Color:	Black
Series:	172258
Connector Type:	Ultra-Fit
Gender:	Receptacle
Number of Contacts:	12
Number of Rows:	2
Pitch:	3.5 mm
Material:	Nylon
Keying:	Yes
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board
Mates With:	Ultra-Fit Vertical Header Link:1722981112\|Link:1722981212\| Link:1722981312\|Link:1722991112\|Link:1722991212\|Link:1722991312 <, br>, Ultra-Fit Right-Angle Header Link:1723161112\|Link:1723161212\| Link:1723161312
Termination Pitch:	3.5 mm
Glow Wire Capable:	Yes
Lock to Mating Part:	Yes
Product Name:	Ultra-Fit
Part Aliases:	1722583112
SKU:	MOL172258-3112

Detailed Description

Introducing the 172258-3112, a high-performance Ultra-Fit Tangless Receptacle Housing designed for power applications. This housing features a 3.50mm pitch and accommodates 12 circuits with dual rows for enhanced connectivity. Constructed from durable black Nylon, it is both robust and reliable, with a wide operating temperature range of -40 to 105 °C. Engineered for safety, this housing is glow-wire capable and polarized to mate, ensuring secure connections. It also boasts keying for added precision and a locking mechanism for secure mating. RoHS compliant and in stock, the Ultra-Fit Connector System is the ideal choice for your power connectivity needs.
