| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172256-4102 |
| Color: | Natural |
| Series: | 172256 |
| Connector Type: | Ultra-Fit |
| Gender: | Receptacle |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Pitch: | 3.5 mm |
| Material: | Nylon |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Mates With: | Ultra-Fit Vertical Header Link:1722862102|Link:1722862202| Link:1722862302|Link:1722872102|Link:1722872202|Link:1722872302 <, br>, Ultra-Fit Right Angle Header Link:1723102102|Link:1723102202| Link:1723102302 |
| Termination Pitch: | 3.5 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | Yes |
| Product Name: | Ultra-Fit |
| Part Aliases: | 1722564102 |
| SKU: | MOL172256-4102 |
172256-4102
Specifications
Detailed Description
The Ultra-Fit Tangless Receptacle Housing is a vital component for power applications, featuring a 3.50mm pitch and accommodating 2 circuits in a single row configuration. Constructed from durable nylon material and designed for a wide operating temperature range of -40 to 105 °C, this natural-colored housing is also glow-wire capable for added safety. With a keying feature and polarization for secure mating, it ensures reliable connectivity. Part of the 172256 series, it is RoHS compliant and part of the Fit Family Power Connectors, offering a trusted solution for wire-to-board connections in various electronic devices.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105300-1300 | Cut Strip - Nano-Fit Crimp Terminal, Female, 0.76 |  |

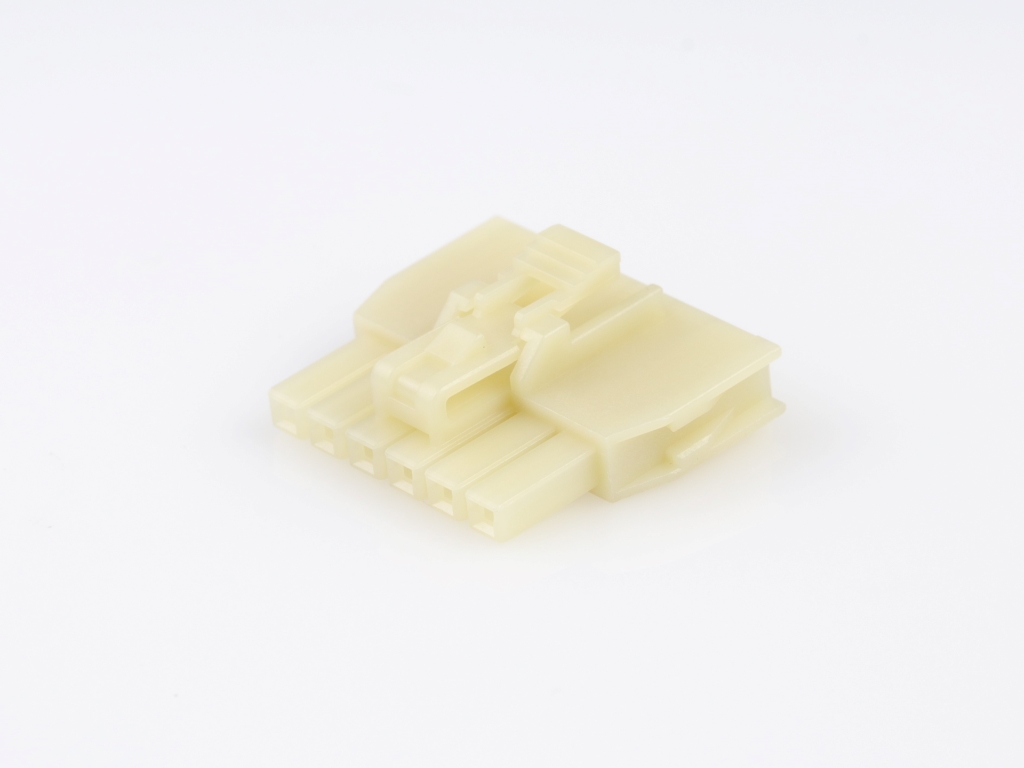

 | Molex 105307-2206 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 6 Circuits, Natural, Glow-Wire Capable | |
 | Molex 172256-3102 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 2 Circuits, Black, Glow-Wire Capable | |
 | Molex 172256-3104 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable | |
 | Molex 172256-3106 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 6 Circuits, Black, Glow-Wire Capable | |
 | Molex 172256-4103 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 3 Circuits, Natural, Glow-Wire Capable | |
 | Molex 172256-4104 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Natural, Glow-Wire Capable | |
 | Molex 172264-3006 | Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 6 Circuits, Black | |
 | Molex 172264-4002 | Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 2 Circuits, Natural | |
 | Molex 172264-4006 | Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 6 Circuits, Natural | |
 | Molex 19070-0023 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |

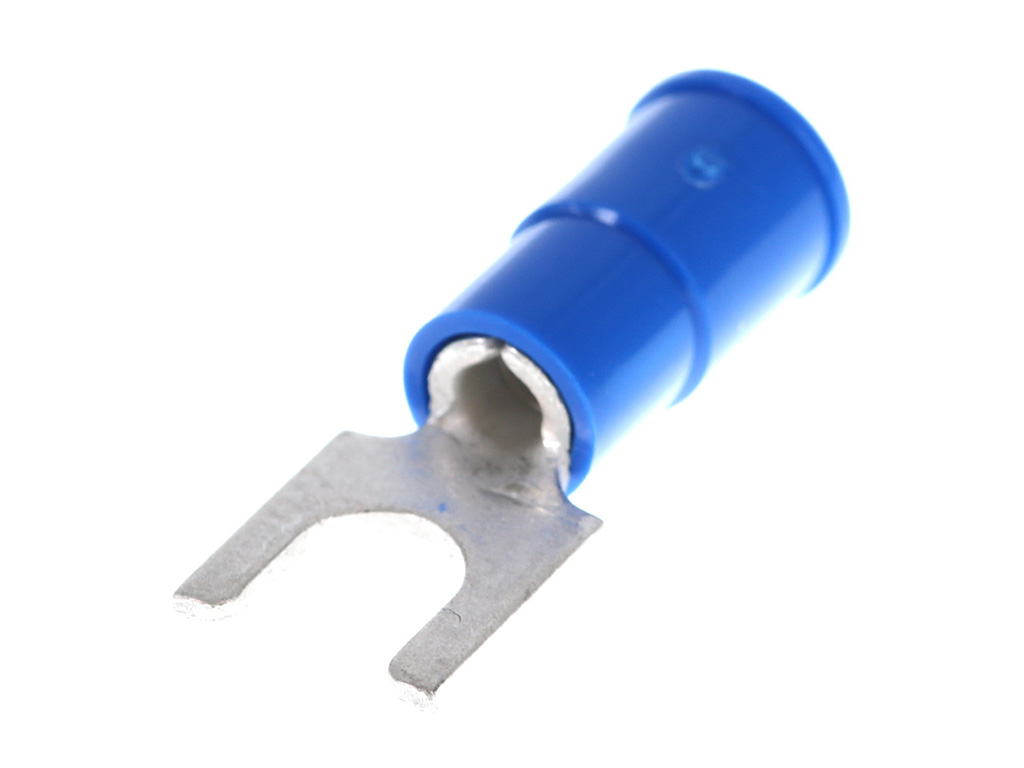

 | Molex 19130-0045 | BLOCK SPADE INSULKRIMP (B-2781-08X) | |
