| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172258-4112 |
| Color: | Natural |
| Series: | 172258 |
| Connector Type: | Ultra-Fit |
| Gender: | Receptacle |
| Number of Contacts: | 12 |
| Number of Rows: | 2 |
| Pitch: | 3.5 mm |
| Material: | Nylon |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Mates With: | Ultra-Fit Vertical Header Link:1722982112|Link:1722982212| Link:1722982312|Link:1722992112|Link:1722992212|Link:1722992312 <, br>, Ultra-Fit Right-Angle Header Link:1723162112|Link:1723162212| Link:1723162312 |
| Termination Pitch: | 3.5 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | Yes |
| Product Name: | Ultra-Fit |
| Part Aliases: | 1722584112 |
| SKU: | MOL172258-4112 |
172258-4112
| Heilind Number: | MOL172258-4112 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172258-4112 |
| Datasheet: | Product Literature |
| ECAD Model: | |
Description:

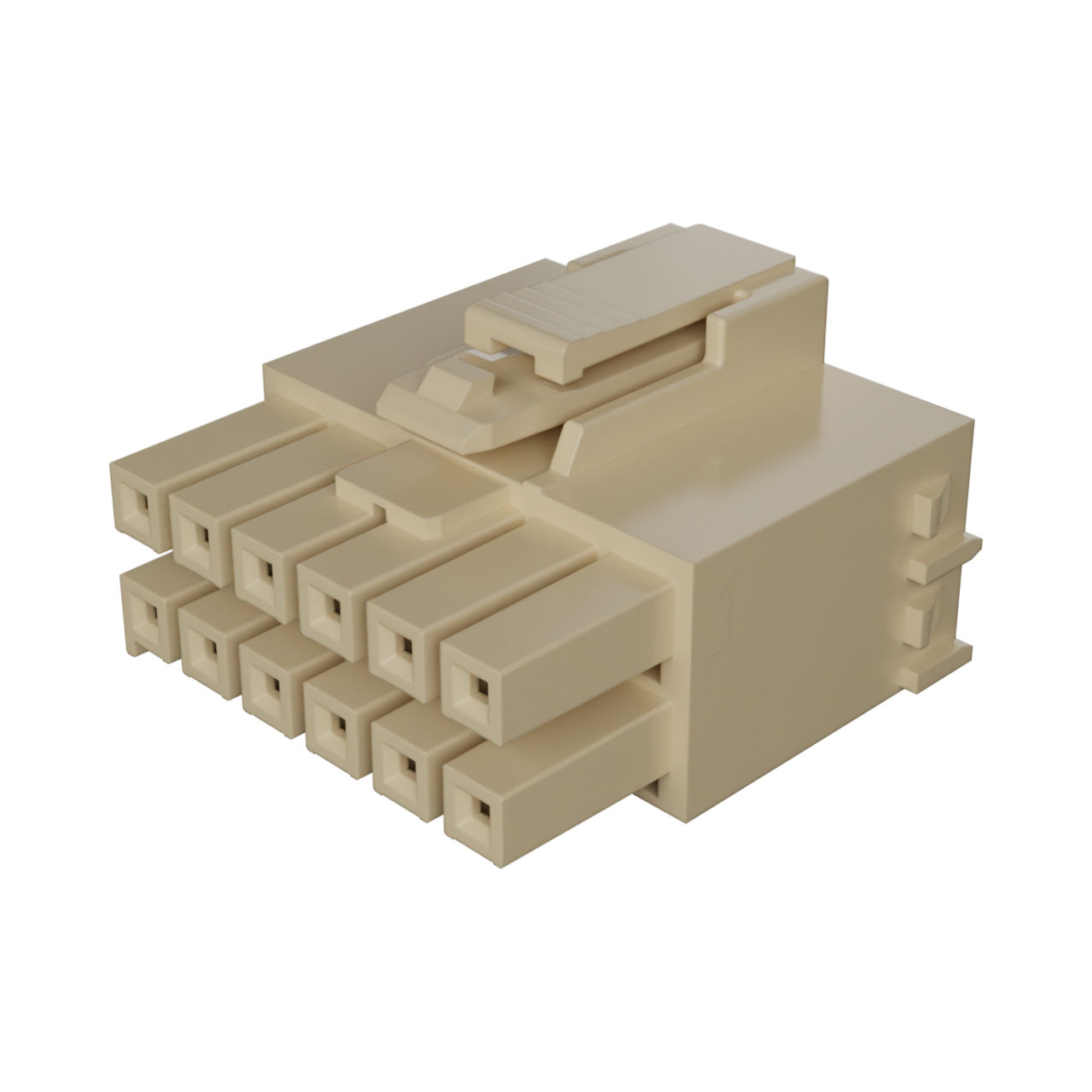

Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Natural, Glow-Wire Capable
More >>Specifications
Detailed Description
The 172258-4112 is a versatile Ultra-Fit Tangless Receptacle Housing designed for high-performance applications. With a 3.50mm pitch and featuring dual rows, this housing accommodates 12 circuits, making it ideal for power connections. Constructed from durable nylon, it ensures reliable performance even in demanding environments, with a wide operating temperature range of -40 to 105 °C. The natural color housing is glow-wire capable, adding an extra layer of safety. With keying and polarization for secure mating, it guarantees proper alignment. RoHS compliant and in stock, this Ultra-Fit housing is a dependable choice for your connectivity needs.
