08-70-0103

MOL08-70-0103
Heilind Number:MOL08-70-0103
Manufacturer:Molex
Manufacturer Number:08-70-0103
Datasheet:RoHS Certificate of Compliance
ECAD Model:
3D Model

Description:

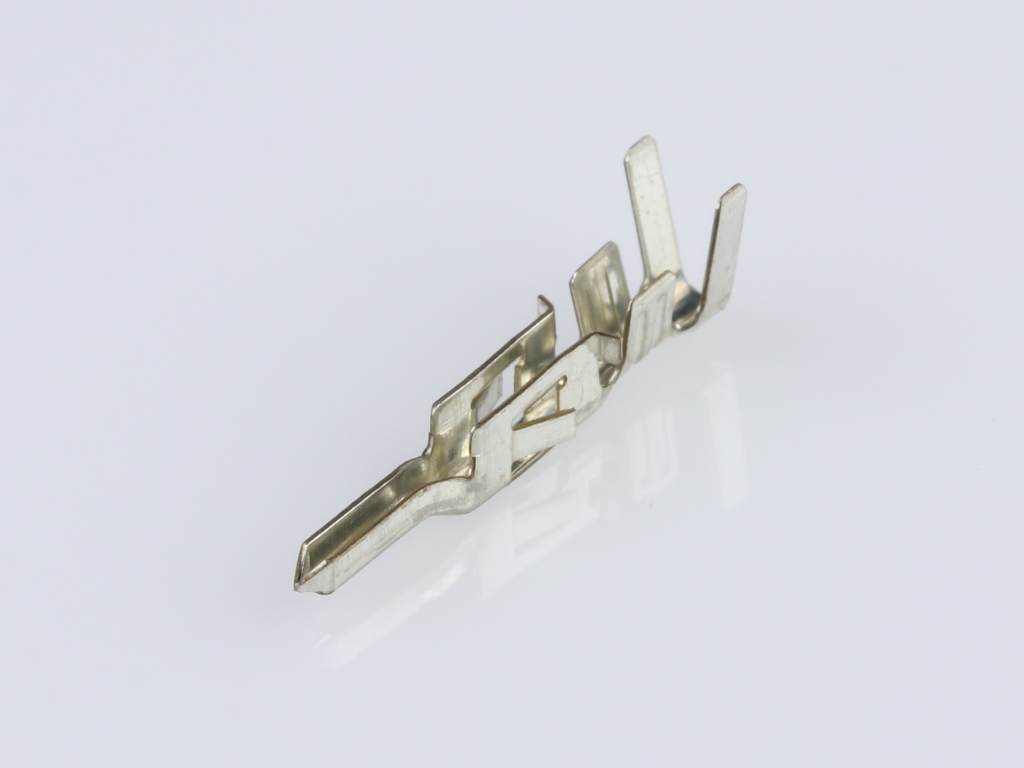

2.50mm Pitch SPOX Crimp Terminal 5241, Bag

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:Molex
Manufacturer Part Number:Molex 08-70-0103
Series:5241 - Mini-Latch
Amperage:3 A
Connector Type:Mini-Latch
Gender:Male
Termination Method:Crimp or Compression
Contact Material:Brass
Contact Plating:Tin
Circuit Application:Signal
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:.889 µm
Mating Cycles:30
Contact Termination Plating Thickness:.889 µm
Wire Size:22 AWG, 24 AWG, 26 AWG, 28 AWG
Connector System:Wire to Wire
Contact Termination Plating:Tin
Wire Insulation Diameter:1.15 - 1.9 mm
Part Aliases:0008700103 5241TL
SKU:MOL08-70-0103

Detailed Description

Introducing the Molex Mini-Latch 3A Male Connector, part number 08700103. This high-performance connector is designed for signal circuit applications, featuring durable brass contacts with tin plating for enhanced conductivity. With a crimp or compression termination method, it accommodates 24-28 AWG wires, ensuring a secure and reliable connection. Boasting a mating cycle of 30, this connector guarantees long-lasting performance. RoHS compliant and in stock for immediate shipping, the 08700103 is the perfect choice for your wire-to-wire connectivity needs.
