| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 85513-5013 |
| Color: | Black |
| Series: | 85513 - Modular Jack 8/8 - RJ45 |
| Amperage: | 1.5 A |
| Connector Type: | Modular Jack 8/8, RJ45 |
| Gender: | Female |
| Mount Type: | Surface Mount |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium Nickel |
| Body Orientation: | Straight |
| Pitch: | 1.02 mm |
| Voltage: | 125 V DC |
| Material: | High Temperature Thermoplastic |
| Number of Ports: | 1 |
| Orientation: | Vertical |
| Component Type: | PCB Jack |
| Operating Temperature Range: | -40 - 85 °C |
| Contact Mating Area Plating: | Gold over Palladium Nickel |
| Contact Mating Area Plating Thickness: | .051 µm, 1.016 µm |
| Mating Cycles: | 2500 |
| PCB Locator: | No |
| PCB Retention: | Yes |
| Contact Termination Plating Thickness: | 1.905 µm |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 045 |
| Max. Cycles at Max. Process Temperature: | 003 |
| Termination Pitch: | 1.27 mm |
| Surface Mount Compatible: | Yes |
| Waterproof Dustproof: | No |
| Non Magnetic: | Yes |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0855135013 |
| SKU: | MOL85513-5013 |
85513-5013
Specifications
Detailed Description

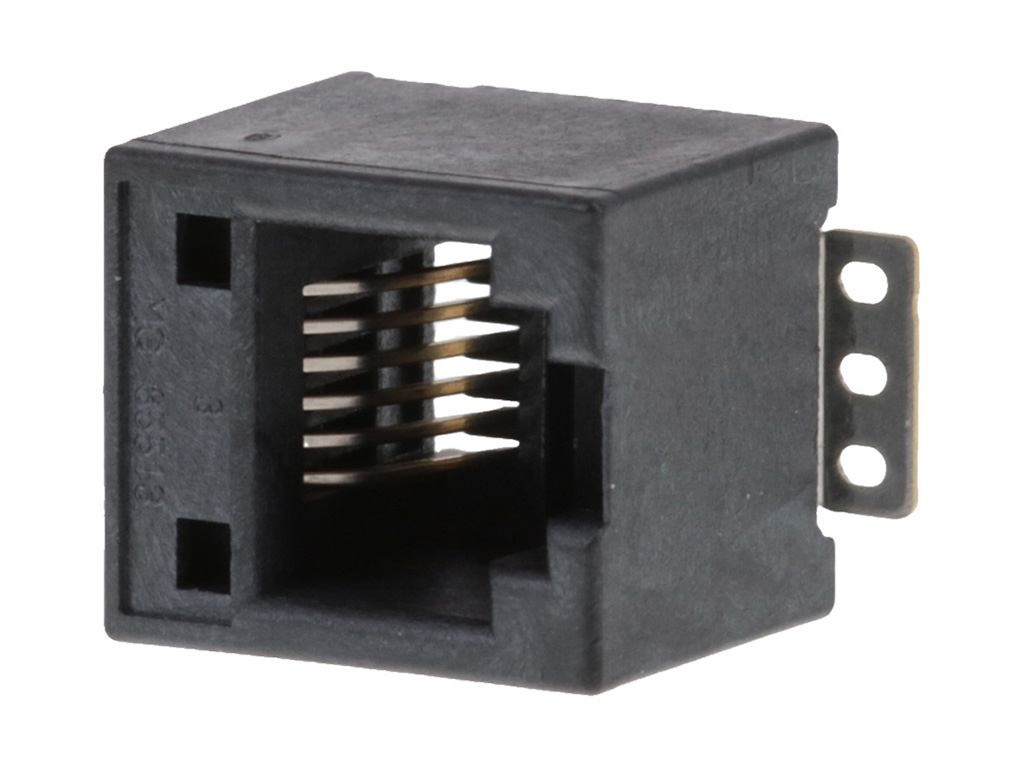

The 85513-5013 is a high-performance Modular Jack designed for vertical, top entry, surface mount applications. With 8/8 configuration and a low profile design, this black RJ45 connector is ideal for space-constrained environments. Featuring durable copper alloy contacts with gold over palladium nickel plating, it ensures reliable signal transmission with a current rating of 1.5 A and voltage of 125 V DC. The straight body orientation and vertical mounting type offer easy integration onto PCBs, while the surface mount termination method guarantees secure and efficient assembly. RoHS compliant and non-magnetic, this RJ connector is suitable for a wide range of applications in networking and telecommunications.
