| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 83611-9006 |
| Series: | 83611 - Commercial Micro-D |
| Amperage: | 1 A |
| Connector Type: | Commercial Micro-D |
| Number of Contacts: | 9 |
| Mount Type: | Panel Mount |
| Termination Method: | Through Hole |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Body Orientation: | Right Angle |
| Pitch: | 1.27 mm |
| Voltage: | 350 V AC |
| Orientation: | Right Angle |
| Component Type: | Plug |
| Tail Length: | 2.79 mm |
| Operating Temperature Range: | -40 - 125 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 9 |
| Mating Cycles: | 500 |
| Shielded: | Yes |
| PCB Retention: | Yes |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.52 mm |
| Supplier Product Group: | Micro-D Connectors |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 030 |
| Lock to Mating Part: | Yes |
| Surface Mount Compatible: | No |
| Part Aliases: | 0836119006 |
| SKU: | MOL83611-9006 |
83611-9006
| Heilind Number: | MOL83611-9006 |
| Manufacturer: | Molex |
| Manufacturer Number: | 83611-9006 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 83611-9006, a high-performance Commercial Micro-D connector designed for reliable signal and power transmission in demanding environments. With a rugged construction and gold contact plating, this connector ensures excellent conductivity and durability, even in extreme temperatures ranging from -40 to 125 °C. Featuring a right-angle body orientation and panel mount design, it offers easy and secure installation in tight spaces. With 9 contacts and a voltage rating of 350 V AC, it is perfect for a wide range of applications. RoHS compliant and lead-free process capable, the 83611-9006 is not only environmentally friendly but also meets the highest industry standards for quality and performance. Upgrade your connectivity solution today with this top-of-the-line Micro-D connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105133-0011 | Micro-USB B Receptacle, Vertical, Surface Mount, 6.70mm Height, 2.30mm Solder Tabs, Lead-Free |  |
 | Molex 106110-1000 | ST Adapter, Metal Body, Ceramic Alignment Sleeve, D-Hole Mount Style | |

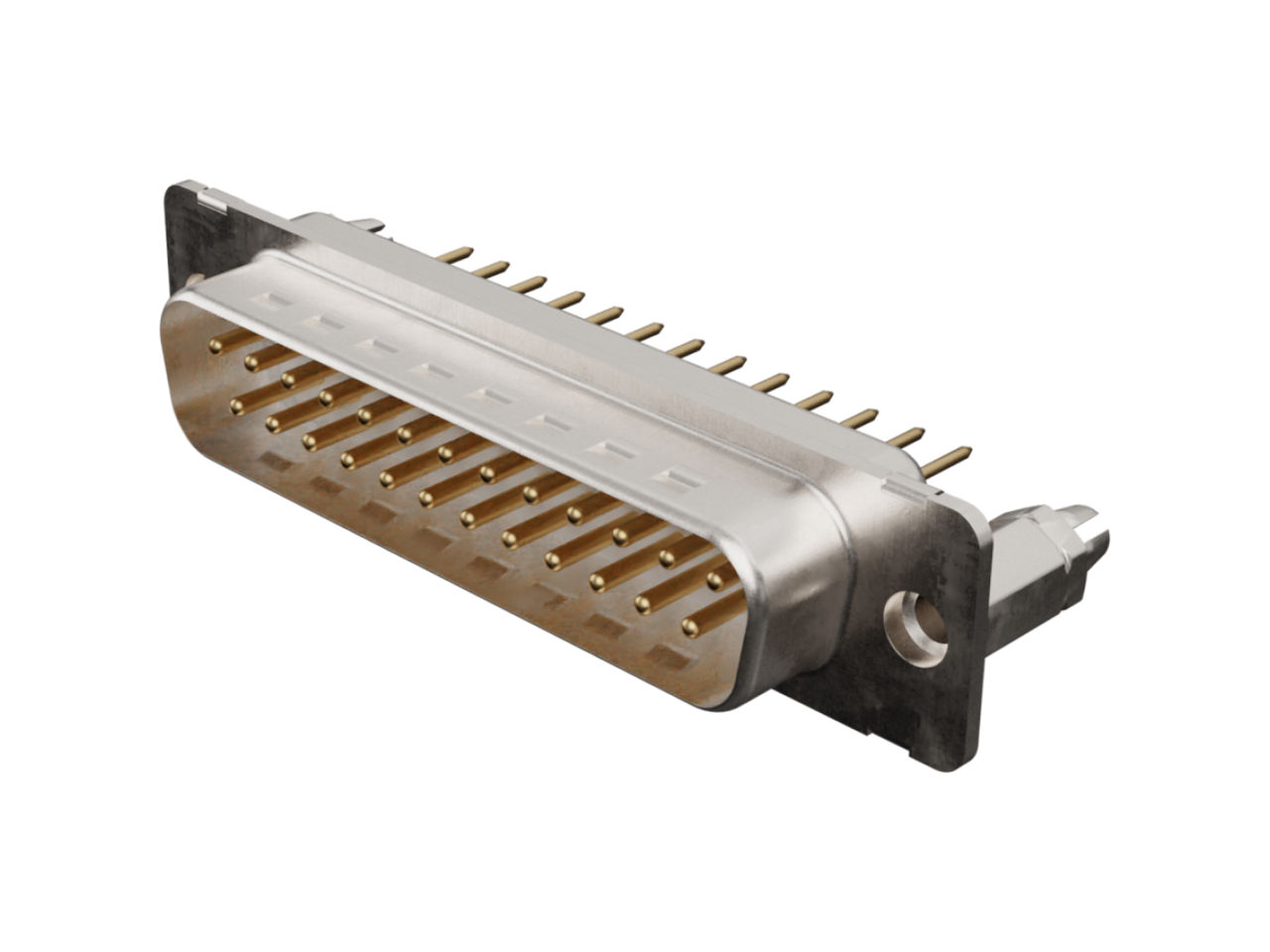

 | Molex 173109-0286 | FH25P22G2-0904 FCT DSUB STR PC PLG 25 PN W/SNAPIN M3 | |
