173109-0286

ICC Number:	MOL173109-0286
Manufacturer:	Molex
Manufacturer Number:	173109-0286
ECAD Model:

Description:

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 11.70mm Tail Length, Gold Plating, 200 Mating Cycles, 8.10mm M3 Snap-in Bolt, 25 Circuits, Heat Resistant Natural Insulator

Specifications

Attribute	Value
Product Category:	Rectangular Connectors D-Shaped Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 173109-0286
Gender:	Male
Housing Material:	Steel
Number of Contacts:	25
Termination Method:	Solder
Contact Material:	Copper Alloy
Contact Plating:	Gold Over Nickel
Insulation Material:	Polycyclohexylenedimethylene Terephthalate
Shielded:	Yes
Current Rating:	7.5 A
D-Sub Shell Size:	S3
Operating Temperature:	-55 to 150 °C
Mounting Angle:	Straight
Mounting Type:	Panel Mount, Screw Mount, Through Hole
D-Sub Connector Type:	Standard
SKU:	MOL173109-0286

Frequently Bought Together

Product	Part #	Description	Stock

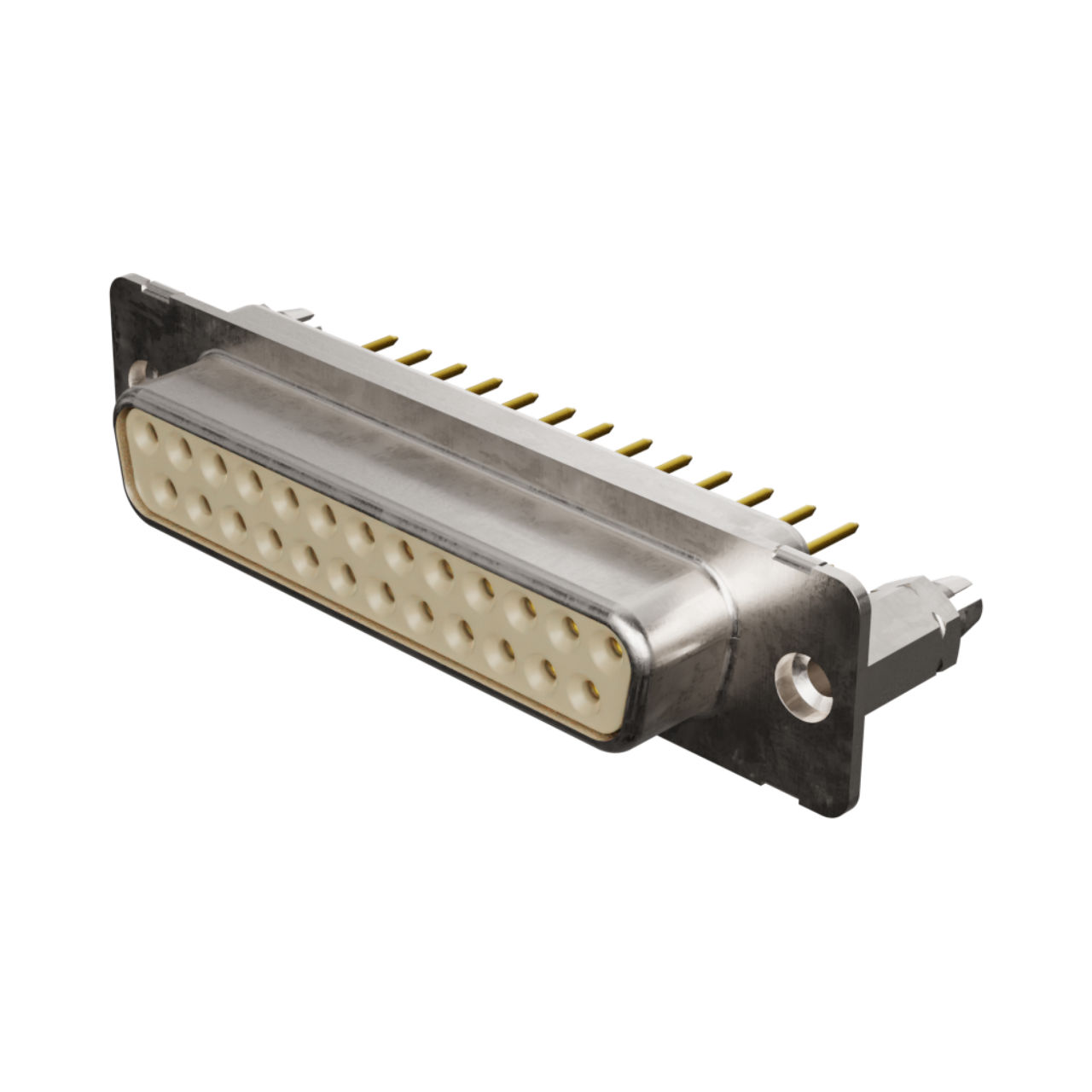

	Molex 173109-0244	FCT Standard-Density D-Sub Connector, Female, Straight, PCB Through Hole, 11.70mm Tail Length, Gold Plating, 200 Mating Cycles, 8.10mm M3 Snap-in Bolt, 25 Circuits, Heat Resistant Natural Insulator
	Molex 208658-1001	HDMI v2.1 Receptacle, Right-Angle, 0.76Âµm Gold(Au) Plating, 1.80mm Tab, Tape and Reel, 19 Circuits

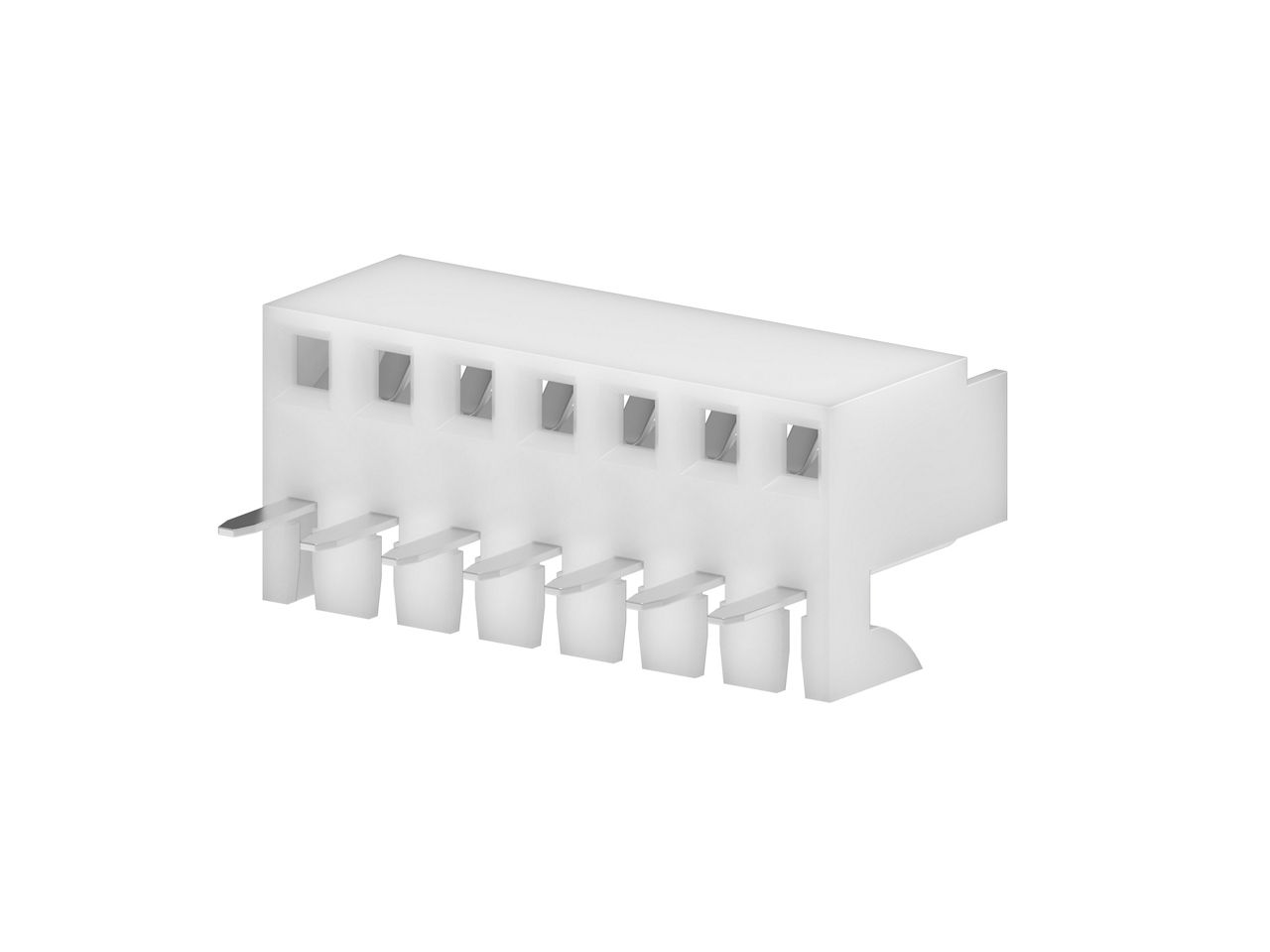

	Molex 22-14-2074	KK 254 PC Board Connector, Bottom Entry, End-to-End Stackable, 2.54µm Tin (Sn) Plating, 7 Circuits
