| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 90156-0144 |
| Color: | Black |
| Series: | 90156 - C-Grid III |
| Connector Type: | C-Grid III |
| Gender: | Receptacle |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Pitch: | 2.54 mm |
| Material: | PPO |
| Packaging: | Bag |
| Operating Temperature Range: | -55 - 105 °C |
| Circuit Application: | Signal |
| Connector System: | Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Breakaway: | No |
| Part Aliases: | 0901560144 |
| SKU: | MOL90156-0144 |

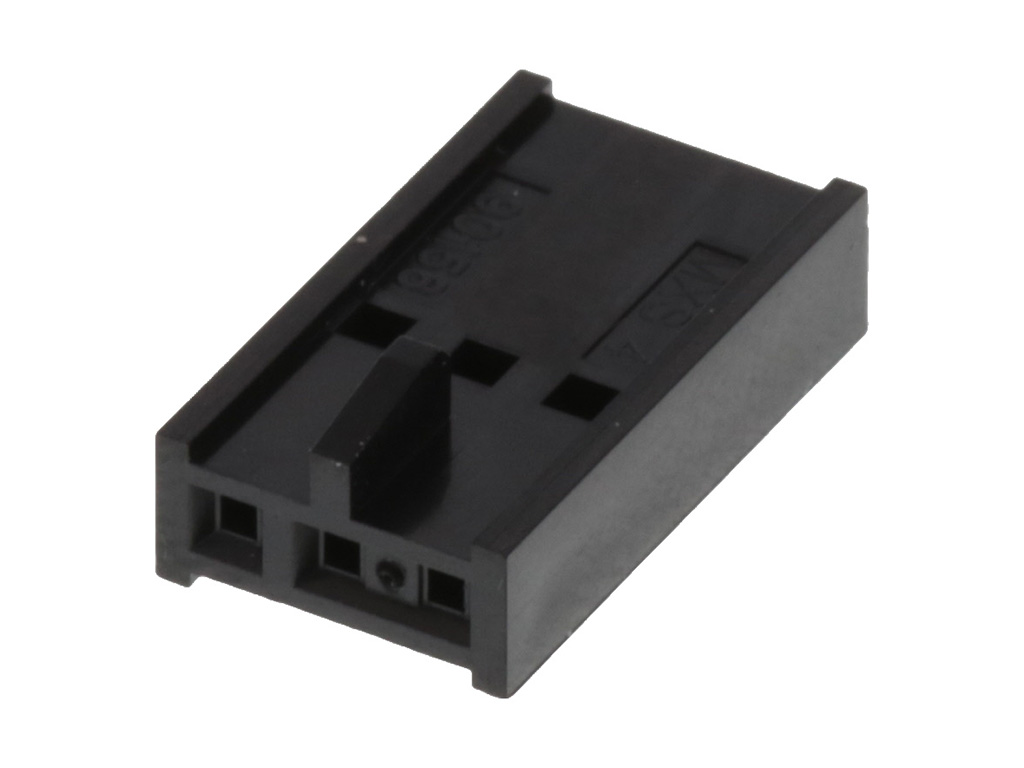

90156-0144
Specifications
Detailed Description
Introducing the Molex C-Grid III 90156 Series Connector, featuring a sleek black design that adds a touch of sophistication to your electronic projects. This versatile connector boasts 4 contacts arranged in a single row, with a standard 2.54mm pitch for seamless integration. Crafted from durable PPO material, it ensures reliable performance even in harsh environments, with an operating temperature range of -55 to 105°C. Certified by CSA and UL for quality assurance, this RoHS-compliant connector is a safe and eco-friendly choice. Designed for wire-to-board applications, it offers secure and efficient connectivity for your signal circuits. With its innovative locking mechanism and compact size, the 90156-0144 is perfect for use in a wide range of electronic devices. Upgrade your connectivity solutions with the Molex C-Grid III 90156 Series Connector.
