| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 83000-0083 |
| Series: | 83000 - Commercial Micro-D |
| Connector Type: | Commercial Micro-D |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Beryllium Copper |
| Contact Plating: | Tin |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Gold |
| Wire Size: | 26 AWG, 28 AWG |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | .75 mm |
| Part Aliases: | 0830000083 |
| SKU: | MOL83000-0083 |
83000-0083
Specifications
Detailed Description
The 83000-0083 is a high-quality Commercial Micro-D Socket Terminal designed for reliable wire-to-board connections in signal applications. Featuring a female connector type, it is compatible with 26-28 AWG wire sizes and can be easily terminated via crimp or compression methods. Constructed from durable beryllium copper with a tin contact plating, this terminal ensures excellent conductivity and corrosion resistance. The contact mating area is further enhanced with gold plating, guaranteeing a secure and stable connection. RoHS compliant and available for immediate shipment, the 83000-0083 is the perfect choice for your commercial micro-connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-70-1031 | SPOX Crimp Terminal 5194, 18-24 AWG, Brass, Reel |  |
 | Molex 19002-0024 | Avikrimp Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Box | |
 | Molex 19007-0021 | Flag InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Box, Tab 6.35 x 0.81mm | |
 | Molex 22-01-3047 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 4 Circuits, Natural | |
 | Molex 39-01-2045 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Natural | |
 | Molex 44441-2003 | 7.50mm Pitch Sabre Receptacle Crimp Housing, UL 94V-0, 3 Circuits, Black | |
 | Molex 56134-9000 | 2.00mm Pitch Crimp Terminal, Female, 22-28 AWG, Copper Alloy, Reel | |
 | Molex 83421-9014 | 1.27mm Pitch Commercial Micro D, Cable Receptacle Kit, 9 Circuits | |

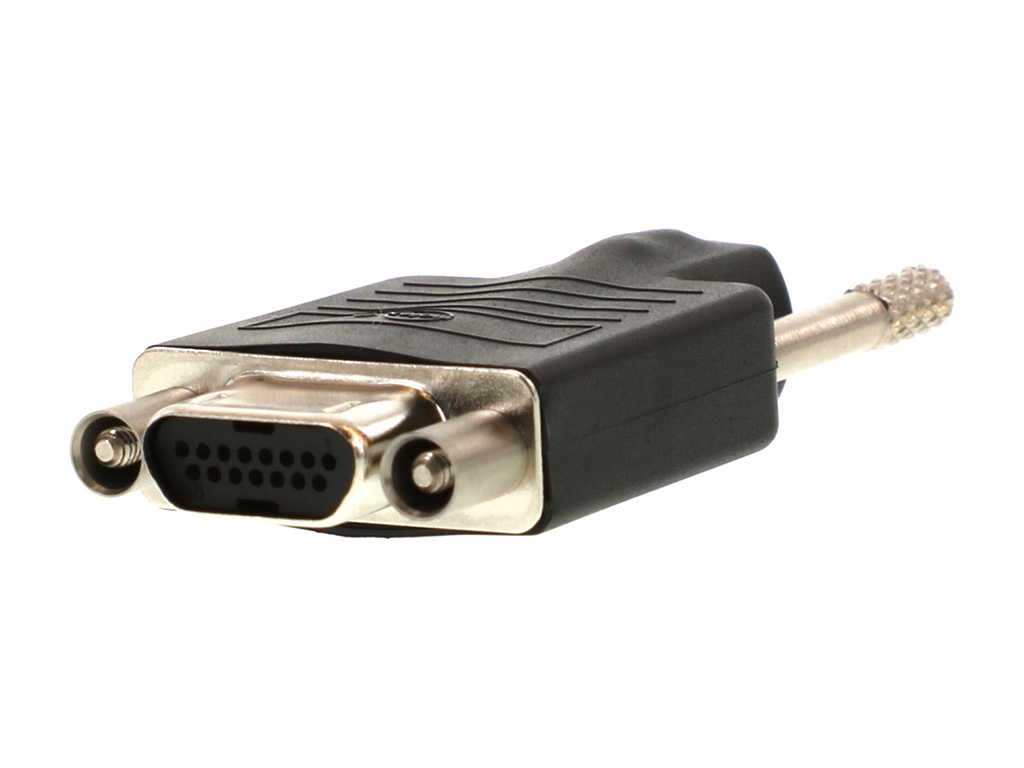

 | Molex 83422-9014 | 1.27mm Pitch Commercial Micro D, Cable Receptacle Kit, 15 Circuits | |
 | Molex 83424-9014 | 1.27mm Pitch Commercial Micro D, Cable Receptacle Kit, 25 Circuits | |
 | Molex 83611-9006 | 1.27mm Pitch Commercial Micro D, PCB Mount, Right-Angle Plug, 9 Circuits | |
 | Molex 90119-2121 | C-Grid III Crimp Terminal, 26-28 AWG, Bag, 0.38 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/05/2021 | 509104 - Equipment Transfer, Production Transfer or Rearrangement. due to the closing of our Shannon, Ireland facility we are moving the stamping die to an outside supplier in Taiwan, we are also building a back up die to be used in the even something should happen to current stamping die and we need to maintain continuity of supply. no change to the parts them selves. | Download | |||
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
