56134-9000

Heilind Number:	MOL56134-9000
Manufacturer:	Molex
Manufacturer Number:	56134-9000
Datasheet:	Product Specification
ECAD Model:

Description:

2.00mm Pitch Crimp Terminal, Female, 22-28 AWG, Copper Alloy, Reel

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 56134-9000
Series:	56134 - MicroClasp - MUO 2.5
Connector Type:	MicroClasp, MUO 2.5
Gender:	Female
Termination Method:	Crimp or Compression
Contact Material:	Copper-Nickel-Silicon
Contact Plating:	Tin
Circuit Application:	Signal
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	.889 µm
Contact Termination Plating Thickness:	.914 µm
Wire Size:	22 AWG, 24 AWG, 26 AWG, 28 AWG
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Wire Insulation Diameter:	.9 - 1.7 mm
Part Aliases:	0561349000
SKU:	MOL56134-9000

Detailed Description

Introducing the Molex MicroClasp MUO 2.5 Female Connector, a versatile and reliable solution for your signal circuit applications. This connector, part of the 56134 series, features a durable construction with copper-nickel-silicon contacts plated with tin for enhanced conductivity and longevity. Suitable for wire sizes ranging from 24 to 28 AWG, it offers flexible termination options via crimp or compression methods. With a compact MicroClasp design, it ensures secure and space-saving connectivity in wire-to-board systems. Rest assured, this connector is RoHS compliant, making it a sustainable choice for your projects. Upgrade to the Molex MicroClasp MUO 2.5 Female Connector for high-performance and dependable signal transmission.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 16-02-0105	SL Crimp Terminal, Series 70021, Male, with Tin (Sn) Plated Contact, 30-24 AWG, Reel
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0040	Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-01-2020	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 39-01-2040	Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural
	Molex 43025-0400	Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43025-0600	Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43030-0001	Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 24-20 AWG, Reel
	Molex 502579-0000	CLIK-Mate 1.50mm Pitch Wire-to-Board Crimp Terminal, Tin Plating, 24-28 AWG, Reel
	Molex 51353-0800	2.00mm Pitch MicroClasp Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 8 Circuits, White

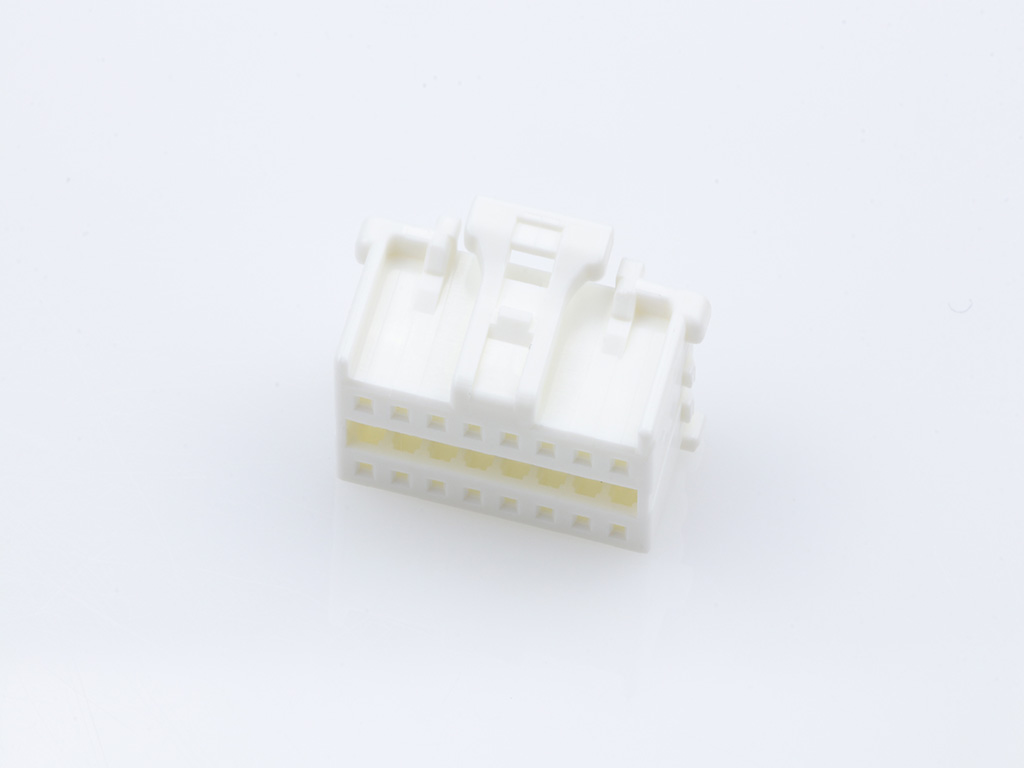

	Molex 51353-1600	2.00mm Pitch MicroClasp Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 16 Circuits, White
