| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 70553-0003 |
| Gender: | Male |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Contact Material: | Brass, Phosphor Bronze |
| Contact Plating: | Gold |
| Pitch: | 2.54 mm |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 3 A |
| Voltage Rating: | 250 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| PCB Connector Type: | Header |
| SKU: | MOL70553-0003 |
70553-0003
| ICC Number: | MOL70553-0003 |
| Manufacturer: | Molex |
| Manufacturer Number: | 70553-0003 |
| ECAD Model: | |
Description:

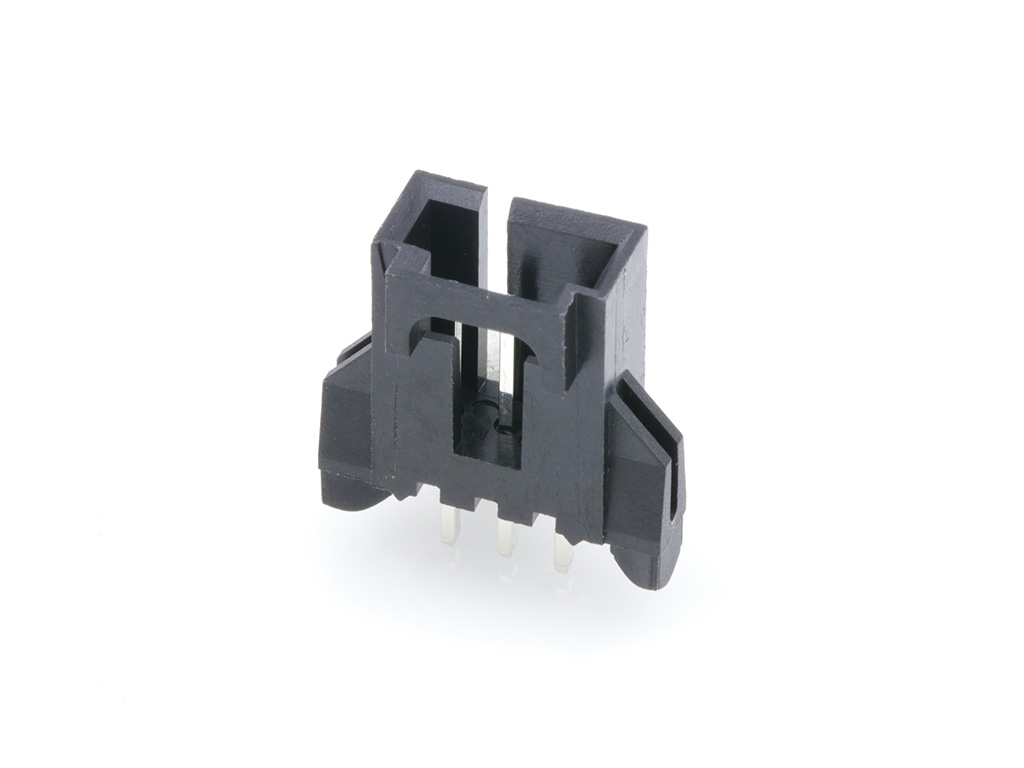

2.54mm Pitch SL Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 4 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
More >>Specifications
Detailed Description
Introducing the 70553-0003, a high-performance PCB pin header designed for reliable wire-to-board connections. This black SL connector features a durable construction with a right-angle body orientation, perfect for space-saving applications. With 4 contacts and a 3A amperage rating, it ensures efficient power transmission. The brass and phosphor bronze contact material, plated with gold for enhanced conductivity, guarantees long-term durability. Operating at temperatures ranging from -40 to 105°C and with a voltage rating of 250V, this connector is suitable for a wide range of environments. RoHS compliant and lead-free solder process capable, the 70553-0003 is not only reliable but also environmentally friendly, making it the ideal choice for your connectivity needs.
