39-30-3037

Heilind Number:	MOL39-30-3037
Manufacturer:	Molex
Manufacturer Number:	39-30-3037
Datasheet:	Application Specification
ECAD Model:

Description:

Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, PA Polyamide Nylon 6/6, 94V-2, (Au) Plating

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-30-3037
Color:	Natural
Series:	5569 - Mini-Fit Jr.
Amperage:	13 A
Connector Type:	Mini-Fit Jr.
Number of Contacts:	3
Number of Rows:	1
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Right Angle
Pitch:	4.2 mm
Voltage:	600 V
Material:	Nylon
Orientation:	Right Angle
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.762 µm
Number of Contacts Loaded:	3
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	2.540 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.78 mm
Connector System:	Wire to Board
Contact Termination Plating:	Matte Tin
Maximum Solder Process Temperature:	240 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-2
Part Aliases:	0039303037 5569-03A4G
SKU:	MOL39-30-3037

Detailed Description

Introducing the Molex Mini-Fit Jr. Header, a high-quality connector for your PCB needs. This single-row, right-angle header features a convenient snap-in plastic peg for secure installation. With 3 circuits and durable PA Polyamide Nylon 6/6 construction, it offers reliable performance in a variety of applications. The (Au) gold plating ensures excellent conductivity, while the 600V voltage rating and 13A current capacity make it suitable for power and signal transmission. Its through-hole termination method and brass contact material guarantee strong and stable connections. Designed for versatility, this header is ideal for wire-to-board applications. RoHS compliant and lead-free solder capable, it meets international standards for environmental responsibility. Trust in the Molex Mini-Fit Jr. Header for efficient and dependable connectivity in your projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 22-01-1052	2.50mm Pitch KK Wire-to-Board Housing, Female, Friction Lock, for 2759/5159 Crimp Terminals, 5 Circuits
	Molex 39-00-0182	Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 24-18 AWG
	Molex 39-29-6248	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 24 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-30-1041	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76µm Select Gold (Au) Plating
	Molex 39-30-1201	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 20 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76µm Select Gold (Au) Plating
	Molex 39-30-1241	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 24 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76µm Select Gold (Au) Plating
	Molex 43020-0801	Micro-Fit 3.0 Plug Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43025-0400	Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43025-2400	Micro-Fit 3.0 Receptacle Housing, Dual Row, 24 Circuits, UL 94V-0, Black
	Molex 43045-0613	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
	Molex 43640-0401	Micro-Fit 3.0 Plug Housing, Single Row, 4 Circuits, UL 94V-0, Low-Halogen, Black

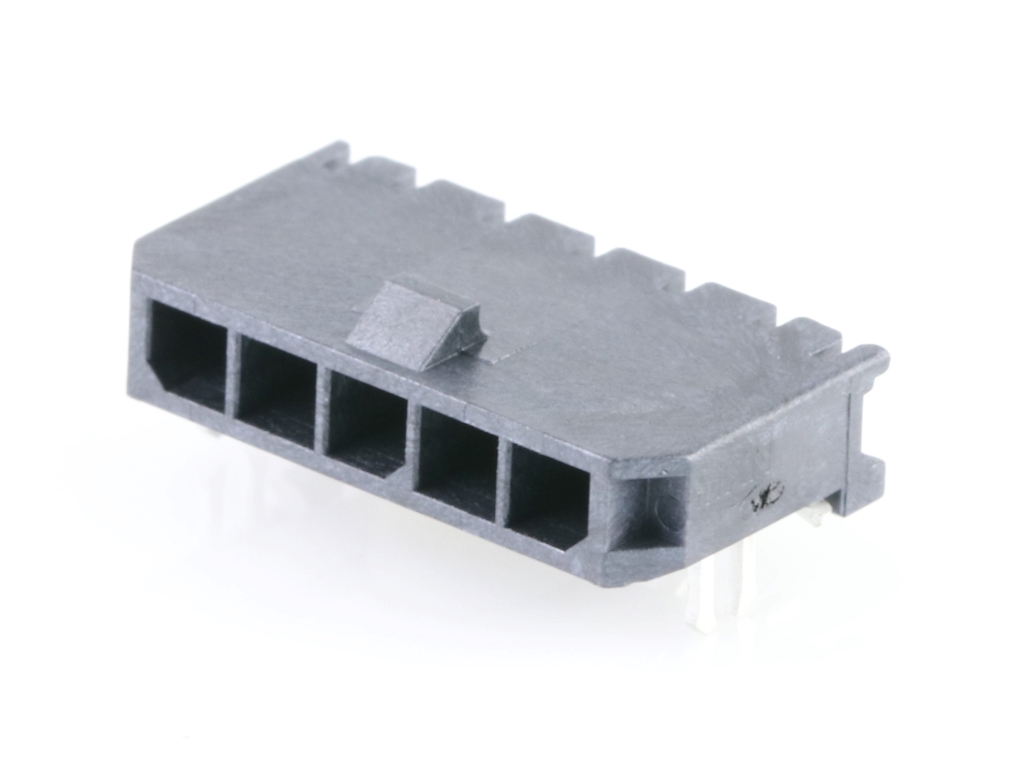

	Molex 43650-0510	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
