70246-1004

Heilind Number:	MOL70246-1004
Manufacturer:	Molex
Manufacturer Number:	70246-1004
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.13

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70246-1004
Series:	70246 - C-Grid
Amperage:	2.5 A
Connector Type:	C-Grid
Number of Contacts:	10
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 VDC
Orientation:	Vertical
Keying:	No
Tail Length:	3.43 mm
Packaging:	Tray
Operating Temperature Range:	-55 - 120 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.127 µm
Number of Contacts Loaded:	10
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Contact Termination Plating Thickness:	1.905 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
CSA Agency Certification:	LR19980
UL Agency Certification:	E29179
Contact Termination Plating:	Tin-Lead
Maximum Solder Process Temperature:	235 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0702461004
SKU:	MOL70246-1004

Detailed Description

Introducing the 70246-1004, a high-performance 2.54mm pitch C-Grid connector designed for reliable wire-to-board connections in electronic applications. With a low amperage rating of 2.5A and a voltage tolerance of 250VDC, this connector is ideal for use in various electronic devices. Featuring 10 gold-plated brass contacts in a straight, two-row configuration, it ensures secure and efficient signal transmission. Its through-hole termination method and vertical orientation make it easy to install on a standard 1.6mm PCB. Certified by CSA and UL for quality and safety, this connector is RoHS compliant, making it suitable for environmentally sensitive applications. Whether you're prototyping a new circuit or in need of a reliable connector for production, the 70246-1004 is the perfect choice for your project.

Frequently Bought Together

Product	Part #	Description	Stock

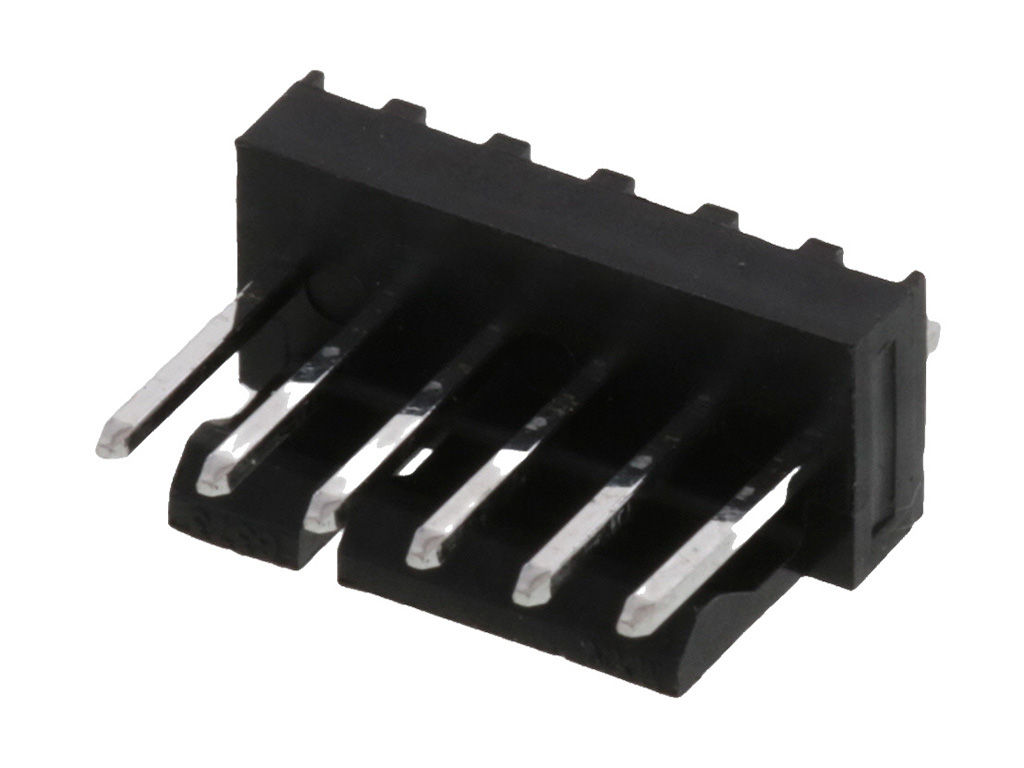

	Molex 171856-0006	2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 12.95mm, Bag, 6 Circuits
	Molex 22-23-2081	KK 254 Solid Header, Vertical, with Friction Lock, 8 Circuits, Tin (Sn) Plating
	Molex 39-29-1068	Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 6 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
	Molex 39-29-1088	Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 8 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
	Molex 39-29-3026	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-1021	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76µm Select Gold (Au) Plating
	Molex 70543-0005	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 6 Circuits, 0.38

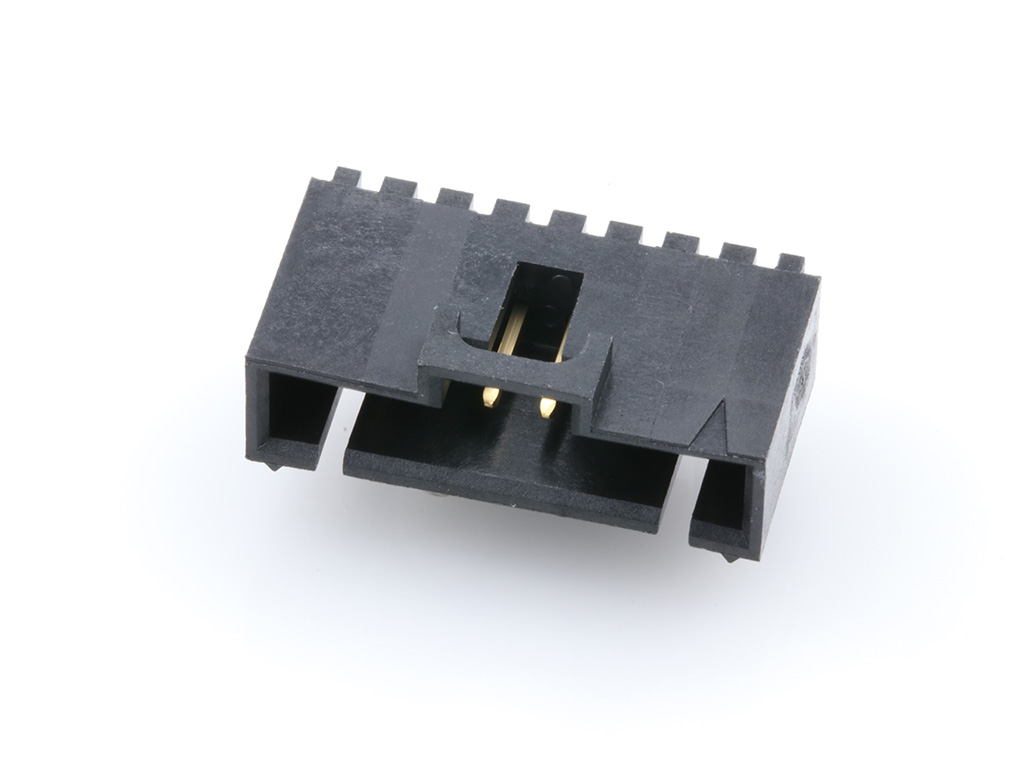

	Molex 70553-0042	2.54mm Pitch SL Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 8 Circuits, Tin (Sn) Plating
