70246-1001

Heilind Number:	MOL70246-1001
Manufacturer:	Molex
Manufacturer Number:	70246-1001
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70246-1001
Series:	70246 - C-Grid
Amperage:	2.5 A
Connector Type:	C-Grid
Number of Contacts:	10
Number of Rows:	2
Termination Method:	Through Hole
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 VDC
Orientation:	Vertical
Keying:	No
Tail Length:	3.43 mm
Operating Temperature Range:	-55 - 120 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	10
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Contact Termination Plating Thickness:	1.905 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	235 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0702461001
SKU:	MOL70246-1001

Detailed Description

Introducing the 70246-1001, a high-performance C-Grid connector designed for reliable wire-to-board connections in electronic applications. With a low amperage rating of 2.5 A and a voltage tolerance of 250 VDC, this connector is perfect for small-scale power and signal transmission. Featuring 10 gold-plated contacts in a 2-row configuration, it ensures secure and efficient connectivity. The straight body orientation and through-hole termination method make for easy installation on PCBs with a thickness of 1.6 mm. Operating flawlessly in temperatures ranging from -55 to 120 °C, this connector is suitable for a wide range of environments. RoHS-compliant and lead-free wave soldering capable, it meets international standards for environmental responsibility. Trust the 70246-1001 for your connectivity needs, where performance and reliability are paramount.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 22-05-3061	KK 254 Solid Header, Right Angle, with Friction Lock, 6 Circuits, Tin (Sn) Plating
	Molex 39-00-0039	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 24-18 AWG
	Molex 39-28-8100	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-8120	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 43045-0427	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
	Molex 43160-2104	Sabre Vertical Header, 4 Circuits, Glow Wire Capable, PCB Thickness 1.60mm, with Board Lock
	Molex 43645-0400	Micro-Fit 3.0 Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Black

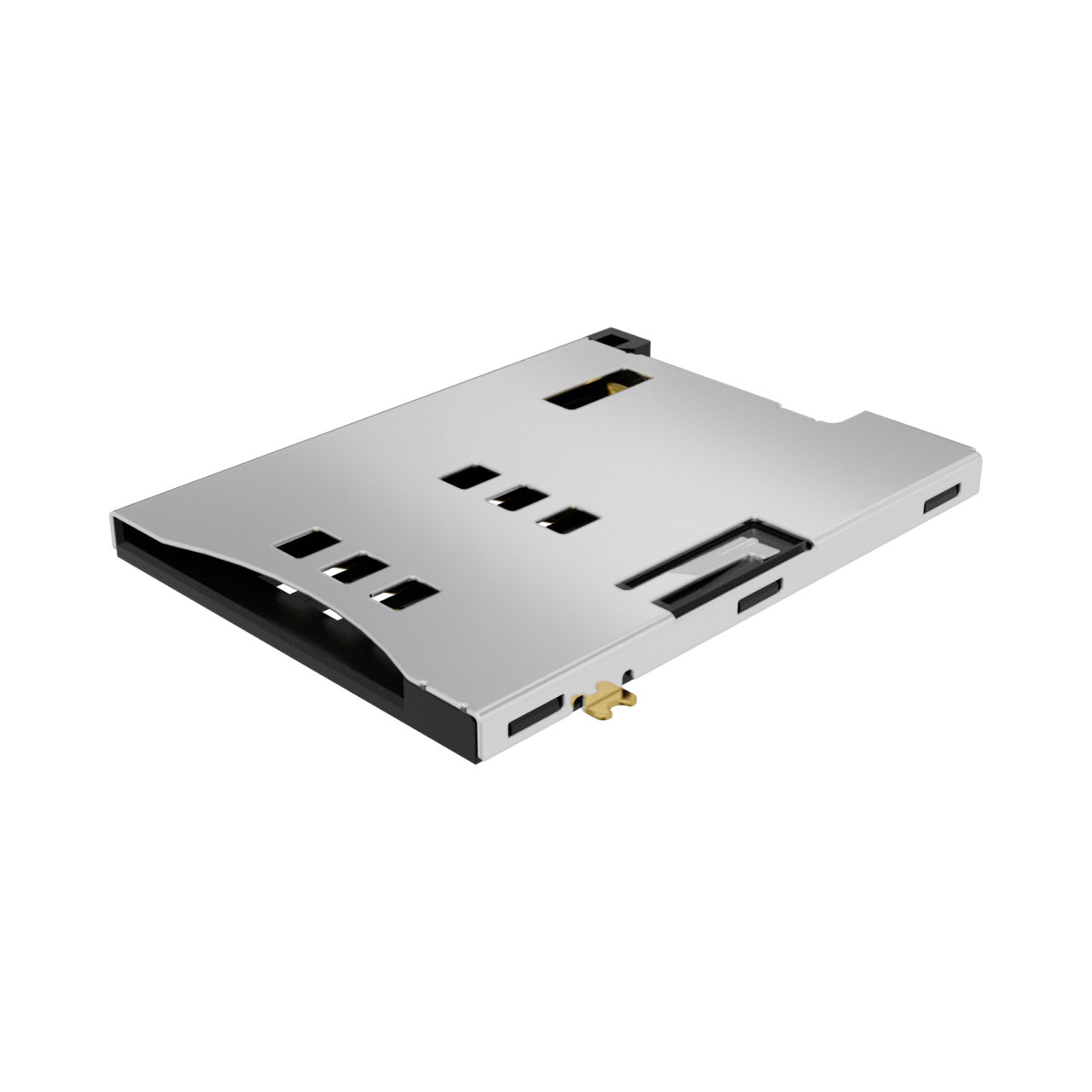

	Molex 47553-1001	1.27mm Pitch SIM Card Holder with 2 Detect Pins, 6 Circuits, Push-Push Style, Housing Height 1.80mm, with Pegs, Lead-Free
	Molex 53048-0210	1.25mm Pitch PicoBlade Header, Right Angle, 2 Circuits
	Molex 70543-0005	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 6 Circuits, 0.38

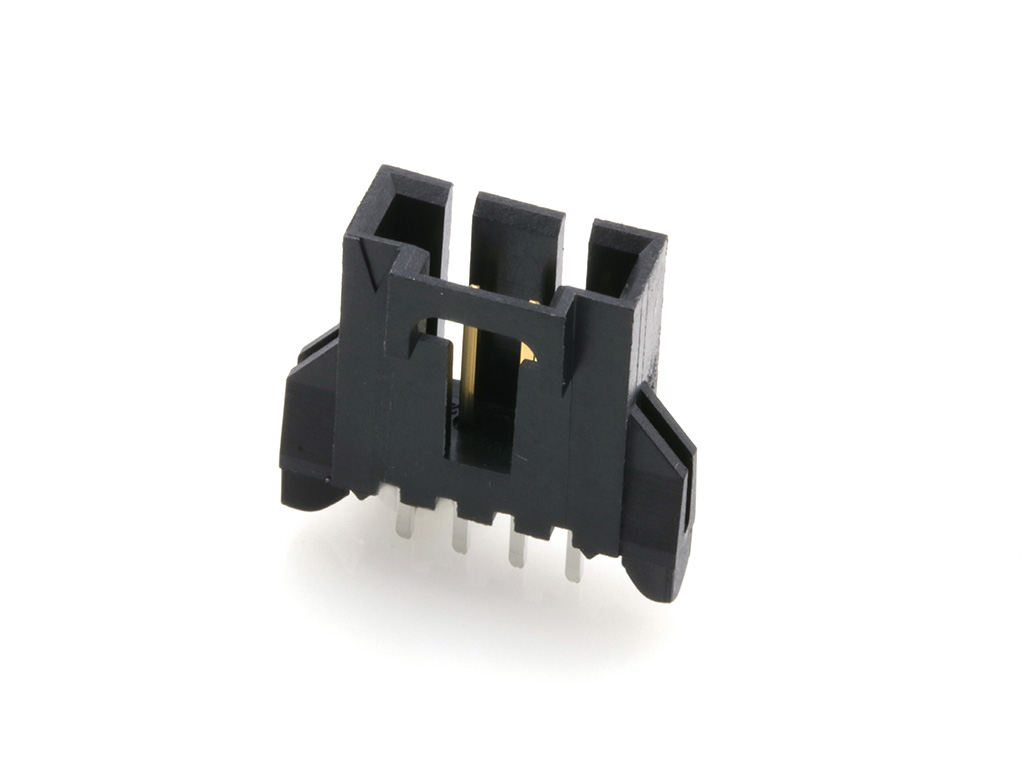

	Molex 70545-0038	2.54mm Pitch SL Header, Single Row 3.05mm Pocket Vertical, Shrouded, with Press-fit Plastic Peg, 4 Circuits, 0.38
