| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 64322-1239 |
| Series: | 64322 - CMC - CP Terminal |
| Amperage: | 6 A |
| Connector Type: | CMC, CP Terminal |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Voltage: | 14 V DC |
| Packaging: | Reel |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 1.016 µm, 3.048 µm |
| Wire Size: | 22 AWG, 24 AWG, .2 - .3 mm² |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Gold |
| Wire Insulation Diameter: | .51 - .64 mm |
| Part Aliases: | 0643221239 |
| SKU: | MOL64322-1239 |
64322-1239
| Heilind Number: | MOL64322-1239 |
| Manufacturer: | Molex |
| Manufacturer Number: | 64322-1239 |
| Datasheet: | 3D Drawing |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 64322-1239, a high-performance CMC CP Terminal designed for automotive applications. This female connector features a durable phosphor bronze construction with tin plating, ensuring reliable conductivity in harsh environments. With a low amperage rating of 6 A and a voltage tolerance of 14 V DC, it is ideal for signal transmission. The crimp or compression termination method accommodates 24-22 AWG wires, providing a secure and efficient connection. Gold-plated contact termination further enhances conductivity, while RoHS compliance guarantees eco-friendly usage. Packaged on a convenient reel, this connector is ready for automated assembly, making it a perfect choice for high-volume production in the automotive industry.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-97-5041 | Mini-Fit TPA Receptacle Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 4 Circuits, Black |  |
 | Molex 15-97-5101 | Mini-Fit TPA Receptacle Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 10 Circuits, Black | |
 | Molex 15-97-5121 | Mini-Fit TPA Receptacle Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 12 Circuits, Black | |
 | Molex 19436-0411 | MX150L 4 Circuit Rear Mount Flange Sealed Panel Mount Plug for 10-12 AWG Wire, with Gasket, Black | |
 | Molex 33472-0606 | MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 34791-0021 | Mini50 Unsealed Receptacle, Single Row, Non-Bridged, without CPA, 2 Circuits, Polarization Option B, Gray | |
 | Molex 34791-0022 | Mini50 Unsealed Receptacle, Single Row, Non-Bridged, without CPA, 2 Circuits, Polarization Option C, Dark Gray | |
 | Molex 43030-0001 | Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 24-20 AWG, Reel | |

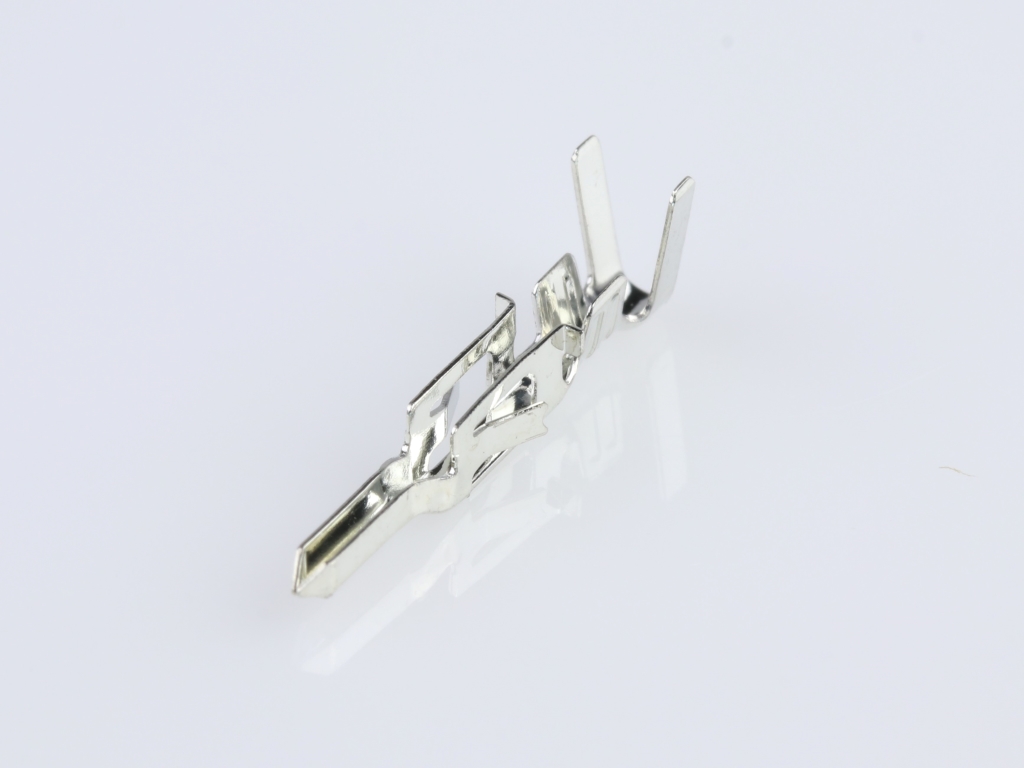

 | Molex 46012-3141 | Mini-Fit Plus Crimp Terminal, 16 AWG, Reel, Tin (Sn) Plating | |
