| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34791-0022 |
| Color: | Gray (Dark) |
| Series: | 34791 - Mini50 |
| Connector Type: | Mini50 |
| Gender: | Receptacle |
| Housing Material: | Polybutylene Terephthalate |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Pitch: | 2 mm |
| Material: | PBT |
| Keying: | Yes |
| Polarization: | C |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Termination Pitch: | 2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0347910022 |
| SKU: | MOL34791-0022 |
34791-0022
Specifications
Detailed Description
The 34791-0022 Mini50 Unsealed Receptacle offers reliable power connectivity with its two circuits and non-bridged design. Featuring a dark gray Polybutylene Terephthalate housing, this single-row receptacle is durable and operates efficiently in a wide temperature range from -40 to 105 °C. With Polarization Option C and keying for secure mating, it ensures proper alignment in applications. This wire-to-board connector is RoHS compliant, making it suitable for various industries. Its compact Mini50 series design and stackable capabilities make it a versatile and space-saving solution for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-06-0106 | Mini-Fit BMI Plug Housing, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 10 Circuits |  |
 | Molex 172952-1201 | Micro-Fit TPA Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 172953-2401 | Micro-Fit Terminal Position Assurance (TPA) Retainer, 24 Circuits, 3.00mm Pitch, UL 94V-0, Low-Halogen, Natural | |
 | Molex 19420-0003 | MX150L Female Terminal for 14-16 AWG Wire, Gold Plated, Metal Strip Carrier | |
 | Molex 33000-1004 | MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm | |
 | Molex 33011-3002 | MX150 Male Terminal, Silver Plating, 16, 18 and 20 AWG, Left Reel Payoff | |
 | Molex 33482-3601 | MX150 Sealed Male Connector, Dual Row, 6 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 33482-4801 | MX150 Sealed Male Connector, Dual Row, 8 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 34791-0020 | Mini50 Unsealed Receptacle, Single Row, Non-Bridged, without CPA, 2 Circuits, Polarization Option A, Black | |
 | Molex 34791-0021 | Mini50 Unsealed Receptacle, Single Row, Non-Bridged, without CPA, 2 Circuits, Polarization Option B, Gray | |
 | Molex 35021-1301 | 2.00/2.50mm Board-In Terminal, Right Angle, Phosphor Bronze, Pre-Plated | |
 | Molex 42815-0012 | Mini-Fit Sr. Crimp Terminal, Female, 10-12 AWG, Gold (Au) | |
 | Molex 43031-0021 | Micro-Fit 3.0 Crimp Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact, 18 AWG, .073in / 1.85mm Max Insulation Outside Diameter, Reel | |

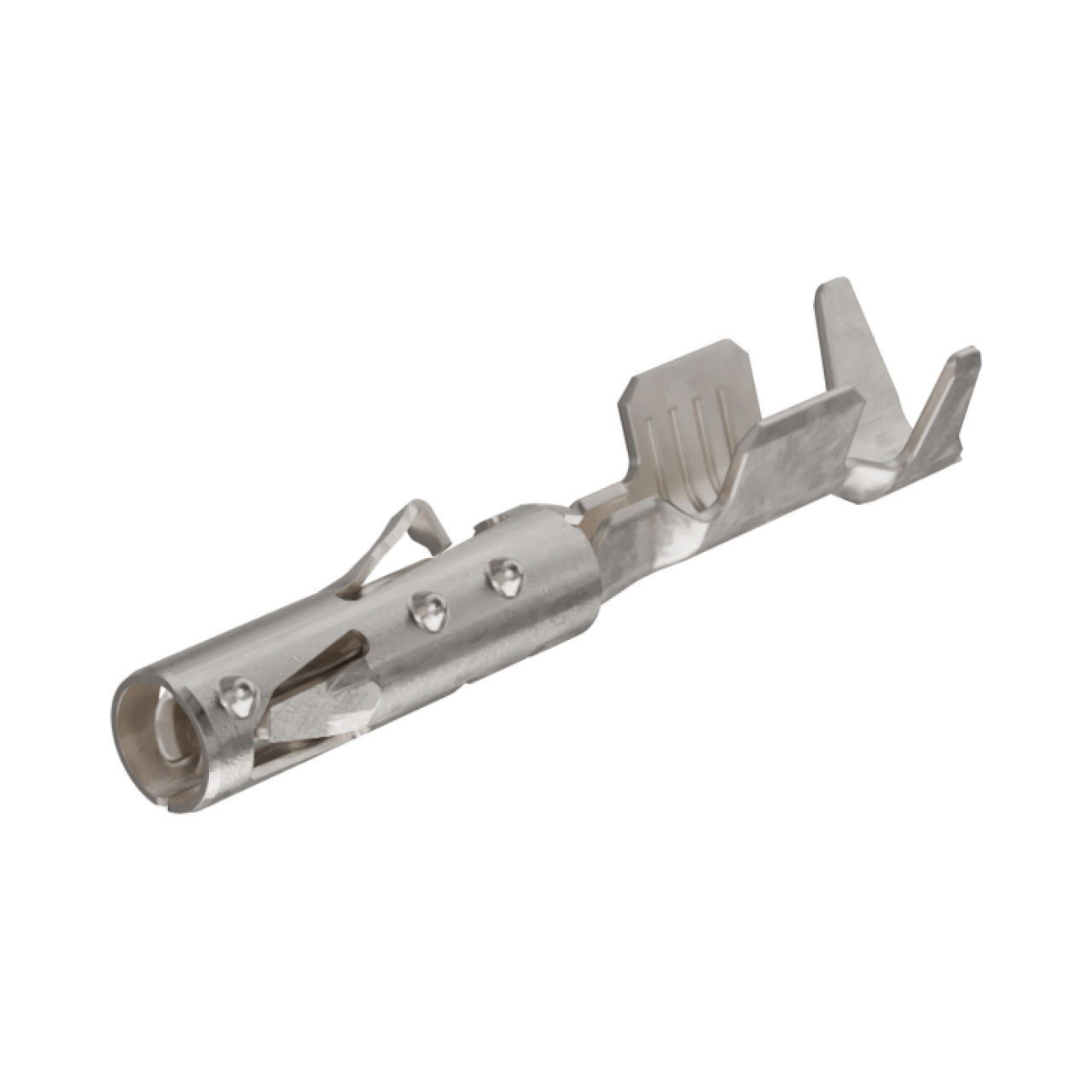

 | Molex 64322-1239 | 0.635mm CMC CP Female Terminal, Tin Plated, Selective 1.27 | |
