| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 55959-2030 |
| Color: | Natural |
| Series: | 55959 - MicroClasp |
| Amperage: | 3 A |
| Connector Type: | MicroClasp |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Body Orientation: | Right Angle |
| Pitch: | 2 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Right Angle |
| Keying: | No |
| Tail Length: | 3.2 mm |
| Packaging: | Tray |
| Operating Temperature Range: | -25 - 85 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 20 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Part Aliases: | 0559592030 |
| SKU: | MOL55959-2030 |
55959-2030
| Heilind Number: | MOL55959-2030 |
| Manufacturer: | Molex |
| Manufacturer Number: | 55959-2030 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
2.00mm Pitch MicroClasp Wire-to-Board Header, Dual Row, Right Angle, 20 Circuits
More >>Specifications
Detailed Description
Introducing the 55959-2030, a high-performance right angle MicroClasp connector designed for reliable wire-to-board connections. With 20 contacts arranged in 2 rows, this connector boasts a low 2mm pitch, making it ideal for space-constrained applications. Featuring a durable polyester construction and tin contact plating, it ensures long-lasting performance even in harsh environments. Rated for 3A and 250V, it guarantees efficient power and signal transmission. PCB retention and a 1.6mm thickness provide secure mounting, while its tray packaging facilitates easy handling. With RoHS compliance and UL agency certification, you can trust in its quality and safety. Upgrade your PCB connectivity with the 55959-2030 for seamless and dependable operation.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 53261-0671 | 1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 6 Circuits |  |

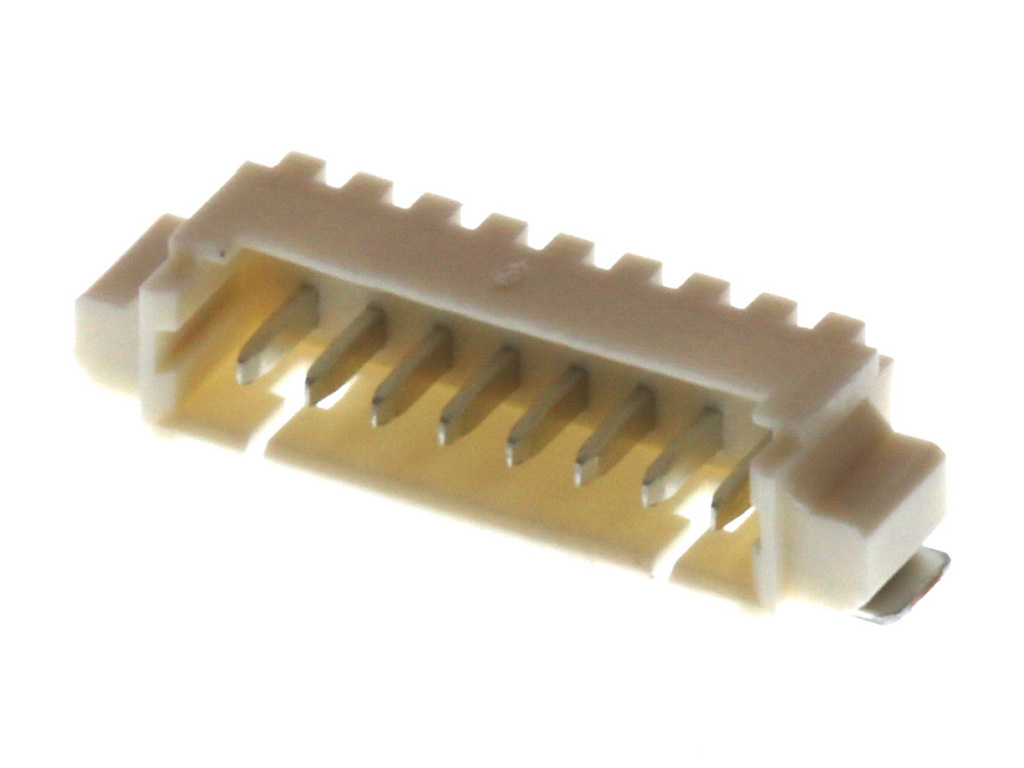

 | Molex 53261-0871 | 1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 8 Circuits | |
