53261-0871

Heilind Number:	MOL53261-0871
Manufacturer:	Molex
Manufacturer Number:	53261-0871
Datasheet:	Packaging Specifications
ECAD Model:

Description:

1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 8 Circuits

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 53261-0871
Color:	Natural
Series:	53261
Amperage:	1 A
Connector Type:	PicoBlade
Number of Contacts:	8
Number of Rows:	1
Termination Method:	Surface Mount
Contact Material:	Phosphor Bronze
Body Orientation:	Right Angle
Pitch:	1.25 mm
Voltage:	125 V
Material:	High Temperature Thermoplastic
Orientation:	Right Angle
Keying:	No
Operating Temperature Range:	-40 - 85 °C
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	1.016 µm
Number of Contacts Loaded:	8
Mating Cycles:	30
PCB Locator:	No
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	1.016 µm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Current Derating Order No:	987651-3691
Glow Wire Capable:	No
Guide to Mating Part:	Yes
Lock to Mating Part:	Yes
Mated Height:	3.4 mm
Stackable:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Product Name:	PicoBlade
Material Flammability Standard:	94V-0
Part Aliases:	0532610871
SKU:	MOL53261-0871

Detailed Description

Introducing the PicoBlade Connector System, a versatile solution for your wire-to-board and wire-to-wire connectivity needs. This high-quality connector, featuring a natural color and right-angle body orientation, is designed for surface mount termination with 1A of current and 125V of voltage. With eight PicoBlade contacts, each plated with durable tin for reliable performance, this connector offers secure PCB retention and polarization. Its high-temperature thermoplastic construction ensures durability in a wide operating temperature range from -40 to 85°C. Fully shrouded and with a mated height of 3.4mm, the PicoBlade is ideal for space-constrained applications. RoHS compliant and with 30 mating cycles, it guarantees both performance and environmental responsibility. Upgrade your connectivity with the PicoBlade Connector System.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-24-9044	Mini-Fit BMI Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6, UL 94V-0, with Tin (Sn) Plating
	Molex 39-30-0060	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 53261-0471	1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 4 Circuits
	Molex 53261-0671	1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 6 Circuits

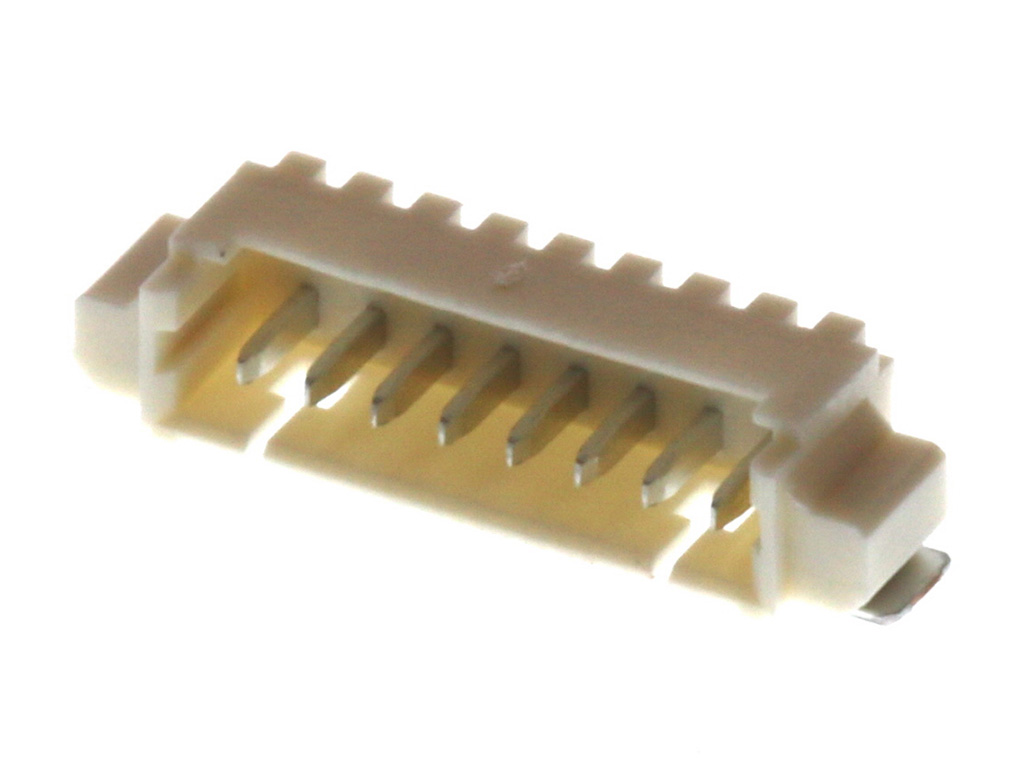

	Molex 53261-0771	1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 7 Circuits
	Molex 53261-1071	1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 10 Circuits
	Molex 53261-1271	1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 12 Circuits

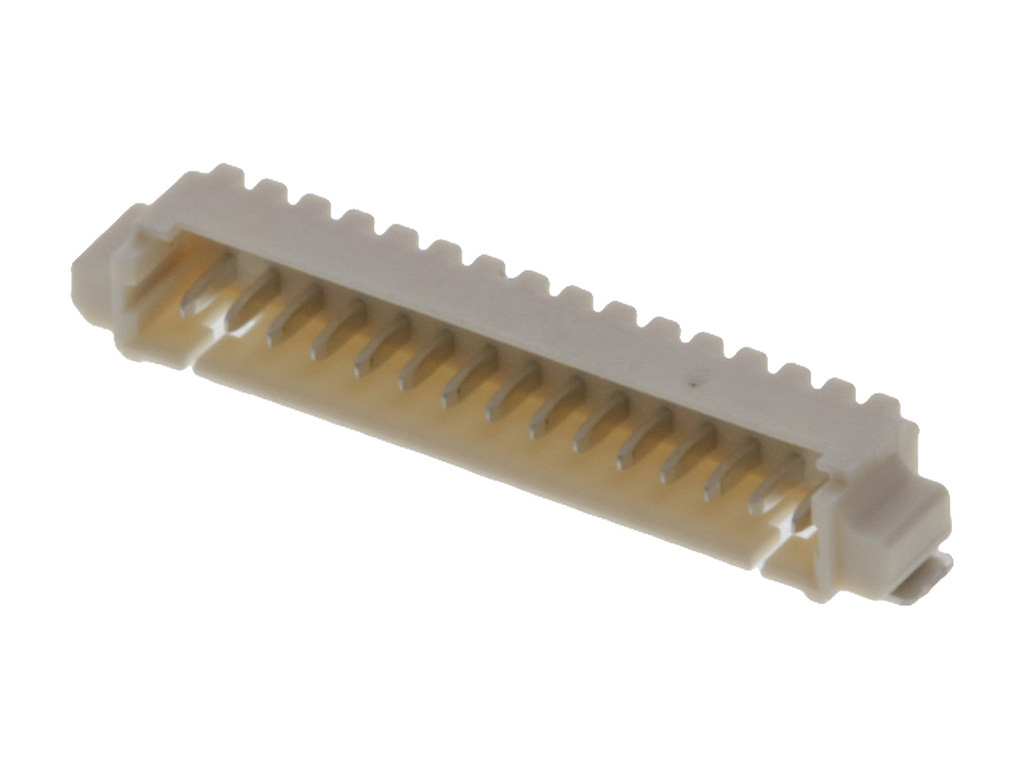

	Molex 53261-1571	1.25mm Pitch PicoBlade Header, Surface Mount, Right Angle, 15 Circuits
	Molex 53398-0271	1.25mm Pitch PicoBlade Header, Surface Mount, Vertical, 2 Circuits
	Molex 53398-0671	1.25mm Pitch PicoBlade Header, Surface Mount, Vertical, 6 Circuits

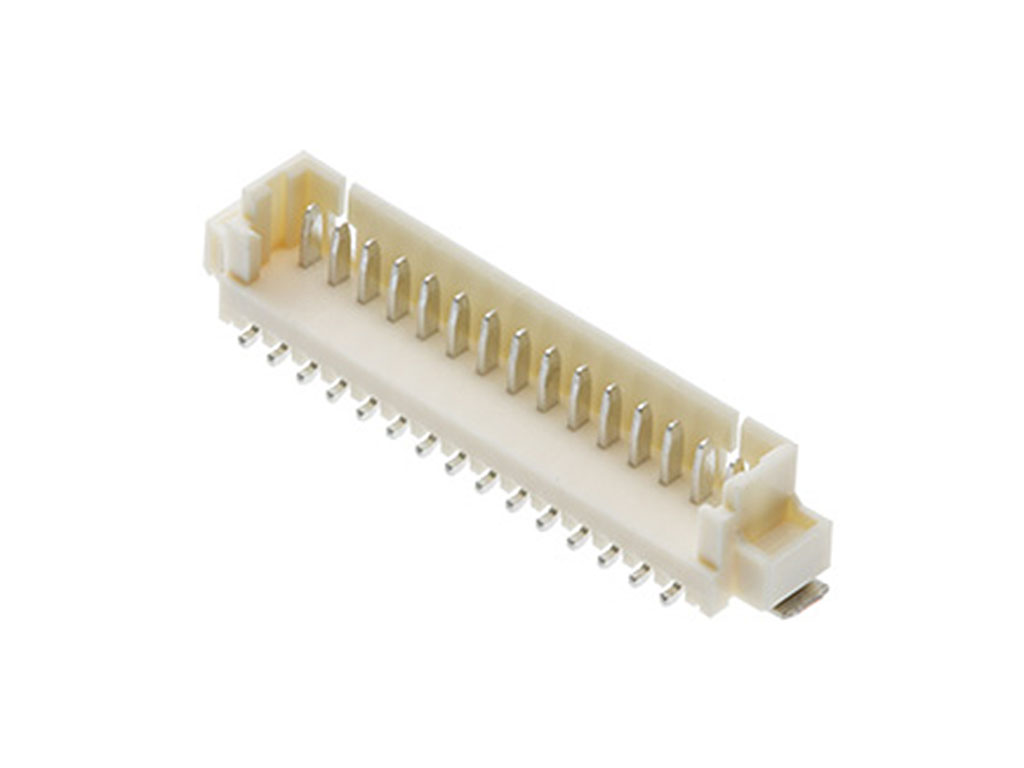

	Molex 53398-1571	1.25mm Pitch PicoBlade Header, Surface Mount, Vertical, 15 Circuits
	Molex 70543-0042	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 8 Circuits, Tin (Sn) Plating

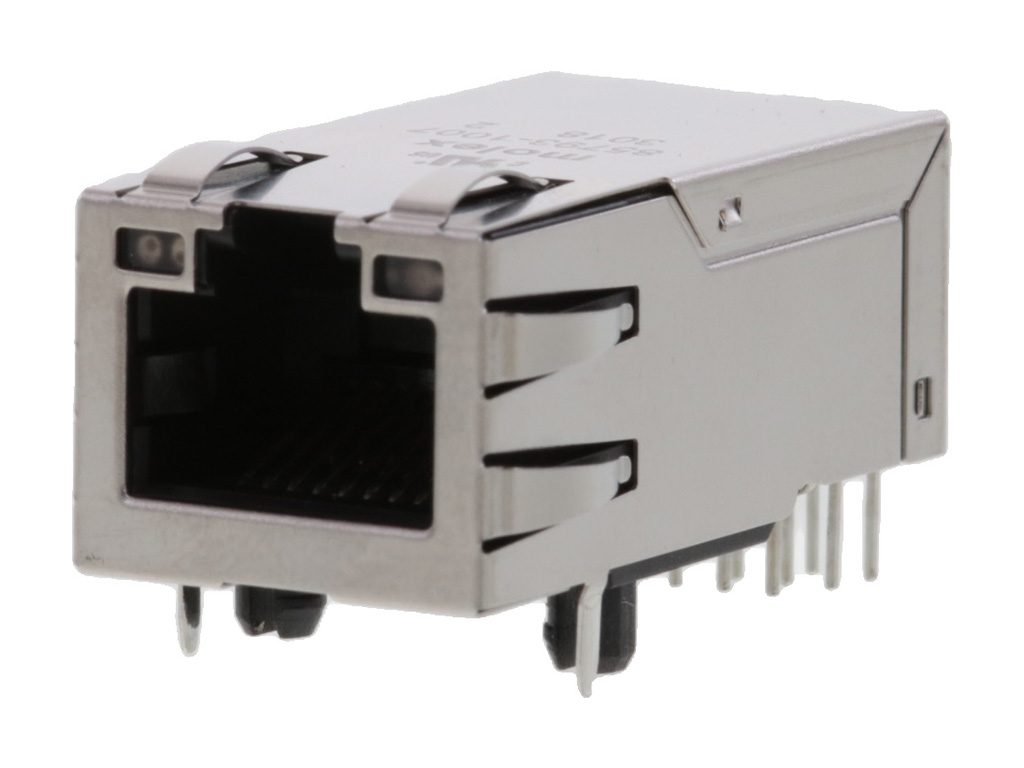

	Molex 85793-1007	Gigabit Magnetic Jack, 1x1 LEDs: Green/Yellow - Green
