53398-1071

Heilind Number:	MOL53398-1071
Manufacturer:	Molex
Manufacturer Number:	53398-1071
Datasheet:	Packaging Specifications
ECAD Model:

Description:

1.25mm Pitch PicoBlade Header, Surface Mount, Vertical, 10 Circuits

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 53398-1071
Color:	Natural
Series:	53398
Amperage:	1 A
Connector Type:	PicoBlade
Number of Contacts:	10
Number of Rows:	1
Termination Method:	Surface Mount
Contact Material:	Phosphor Bronze
Body Orientation:	Straight
Pitch:	1.25 mm
Voltage:	125 V
Material:	Nylon
Orientation:	Vertical
Tail Length:	6 mm
Operating Temperature Range:	-40 - 85 °C
Contact Mating Area Plating:	Tin
Number of Contacts Loaded:	10
Mating Cycles:	30
PCB Locator:	No
PCB Retention:	Yes
Polarized to PCB:	Yes
Polarized to Mate:	Yes
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Current Derating Order No:	987651-3691
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Mated Height:	5.7 mm
Stackable:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Partial
Product Name:	PicoBlade
Material Flammability Standard:	94V-0
Part Aliases:	0533981071
SKU:	MOL53398-1071

Detailed Description

Introducing the PicoBlade Connector System, a versatile solution for your wire-to-board and wire-to-wire connectivity needs. This straight, surface mount connector features 10 contacts with a 1.25mm pitch, allowing for precise and secure connections. Constructed with a nylon body and phosphor bronze contacts plated with tin, this connector ensures reliable performance even in demanding environments. With a low amperage rating of 1A and a voltage tolerance of 125V, it is suitable for a wide range of applications. RoHS compliant and with a wide operating temperature range from -40 to 85°C, the PicoBlade connector is a trusted choice for your PCB design projects. Its vertical orientation and partial shrouding offer added convenience and protection during assembly. Trust in the PicoBlade Connector System for efficient and durable connectivity in your electronic designs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-84-4032-YEL	6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 3 Circuits
	Molex 10-84-4040	6.35mm Pitch MLX Power Connector Header, Vertical, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
	Molex 10-84-4062	6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 6 Circuits
	Molex 10-84-4122	6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 12 Circuits
	Molex 15266-0191	0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 18 Circuits, 0.127m Cable Length, 0.27mm Cable Thickness, Tin (Sn) Plating
	Molex 172050-3064	EdgeLine+ ESP Vertical Connector, 15 Gbps, 0.75mm Pitch, 1.57mm PCB Thickness, 40.0A Power Module, 64 Circuits, 2 Power Circuits
	Molex 22-01-3067	KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 6 Circuits, Natural
	Molex 22-23-2041	KK 254 Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating
	Molex 26-60-5060	KK 396 Header, Right-Angle with Friction Lock, 6 Circuits, Tin (Sn) Plating
	Molex 39-30-0040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 503398-1892	1.10mm Pitch microSD Memory Card Connector, Normal Mount Surface Mount, Push-Push Type, 1.28mm Height
	Molex 51296-5494	0.50mm Pitch Easy-On FFC/FPC Connector, 1.30mm Height, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, 54 Circuits, Gold (Au) Contact Plating
	Molex 53047-1010	1.25mm Pitch PicoBlade Wire-to-Board Header, Vertical, with Friction Lock, 10 Circuits
	Molex 53398-0471	1.25mm Pitch PicoBlade Header, Surface Mount, Vertical, 4 Circuits
	Molex 53398-0671	1.25mm Pitch PicoBlade Header, Surface Mount, Vertical, 6 Circuits

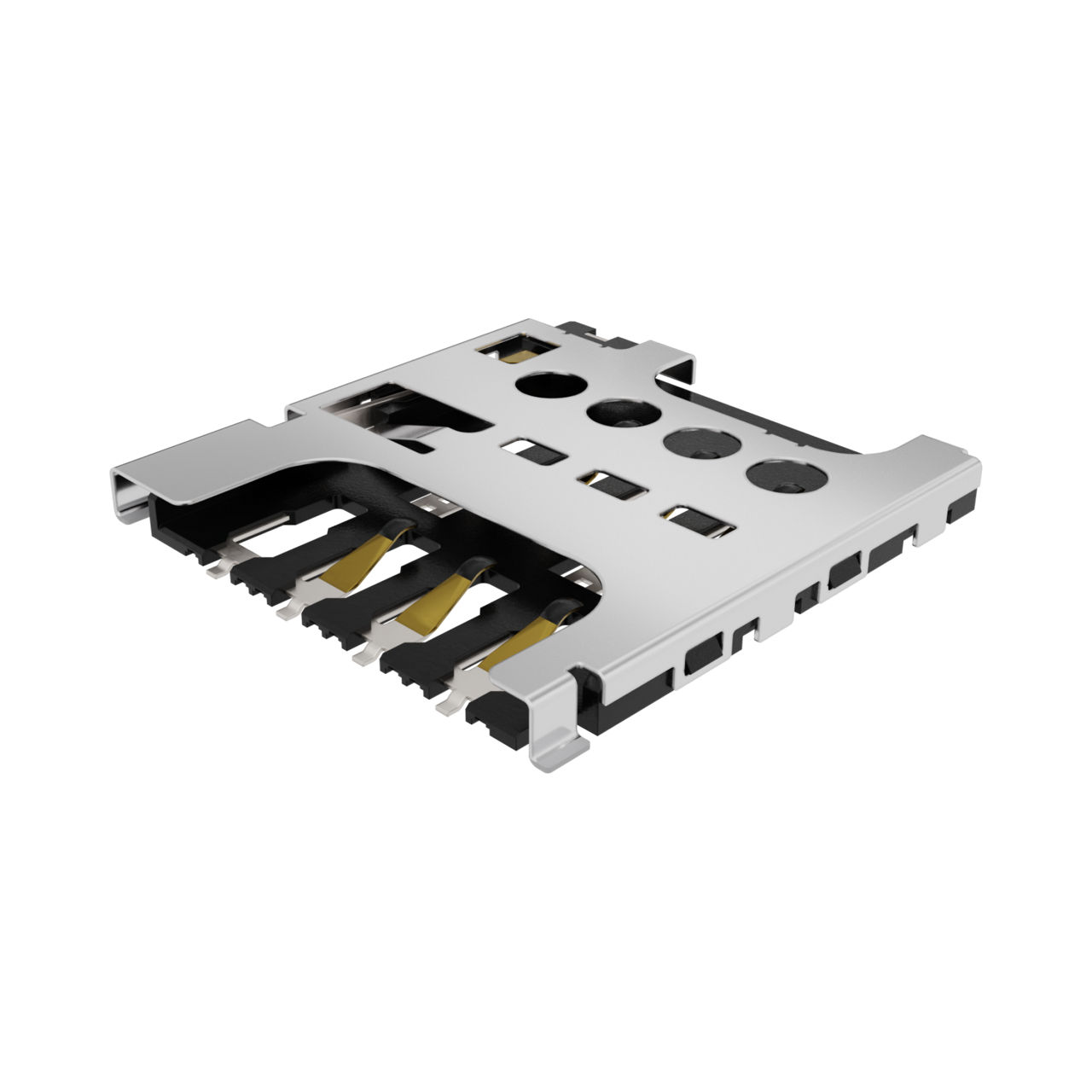

	Molex 78727-0001	1.40mm Height Push-Pull micro-SIM Card Socket with Detect Switch, Surface Mount, 6 Circuits, Low-Halogen, Lead-Free
