53398-1571

ICC Number:	MOL53398-1571
Manufacturer:	Molex
Manufacturer Number:	53398-1571
Datasheet:	Datasheet
ECAD Model:

Description:

1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 15 Circuits, 0.60mm PC Tail Length

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 53398-1571
Gender:	Male
Number of Contacts:	15
Number of Rows:	1
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Pitch:	1.25 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	1 A
Voltage Rating:	125 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Surface Mount
PCB Connector Type:	Header
SKU:	MOL53398-1571

Detailed Description

Introducing the PicoBlade Connector System, a versatile solution for your wire-to-board and wire-to-wire connectivity needs. This straight, surface mount connector features 15 contacts arranged in a single row, with a tiny 1.25mm pitch for high-density applications. Constructed with a durable nylon body and phosphor bronze contacts plated with tin, it offers reliable performance in a wide operating temperature range from -40 to 85°C. With a low amperage rating of 1A and a voltage capacity of 125V, it's perfect for small-scale power and signal transmission. This connector is RoHS compliant and features PCB retention and polarization for easy and secure installation. Upgrade your PCB connectivity with the PicoBlade Connector System.

Frequently Bought Together

Product	Part #	Description	Stock

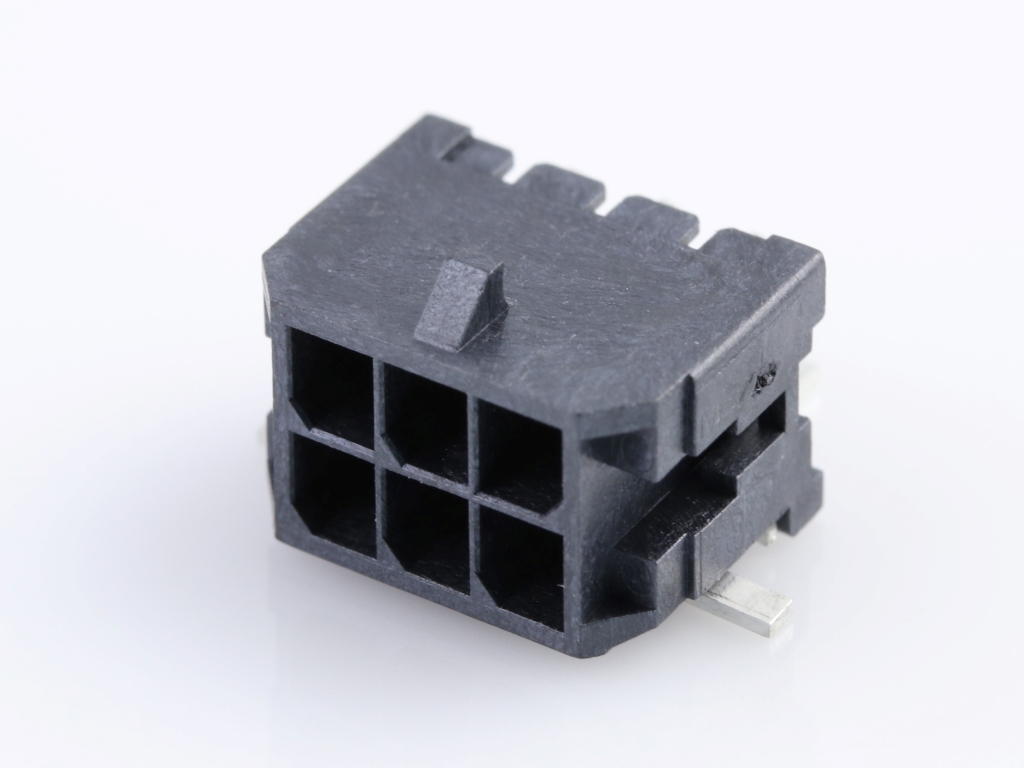

	Molex 43045-0610	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Solder Tab, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 51021-0400	1.25mm Pitch, PicoBlade Receptacle Crimp Housing, Single Row, Friction Lock, 4 Circuits, Natural
	Molex 53261-0871	1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Surface Mount, Tin (Sn) Plating, Friction Lock, 8 Circuits, Natural, Tape and Reel
	Molex 53398-0271	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 2 Circuits, Tape and Reel, 0.60mm PC Tail Length
	Molex 87438-0243	1.50mm Pitch, Pico-SPOX PCB Header, Single Row, Right-Angle, Surface Mount, Tin over Nickel Plating, Friction Lock, 2 Circuits, Beige

Product Change Notice

Effective Date	Description of Change	Download
05/31/2024	513841 - Change Supplier. This notification is to inform about addition of new metal strip supplier for part number 648971898 as new source to ensure continuity of supply for 53398 Series. No changes will be made to product as part of this change.	Download
03/31/2023	513191 - Packaging Method/Quantity Changing. The same PNs are manufactured from 2 plants, Molex Malaysia and Molex Korea, with different DU/MLQ and packaging spec. This PCN is prepared mainly to consolidate the DU(Delivery Unit)/MLQ quantity for these 2 plants. Packaging spec changes including reel diameter and outer box size increase upon SPQ, DU and MLQ quantity change.	Download
01/02/2020	507886 - Capacity Change. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product.	Download
02/10/2019	506157 - Change to Product. This letter is to inform you that changes are being made to the part(s) identified in this Notice. The change may affect the fit, form, function or appearance of the parts, or it may result in a change to the specification. The pictures below show an example of the possible differences.	Download
12/31/2017	502707 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change.	Download
