52116-0241

Heilind Number:	MOL52116-0241
Manufacturer:	Molex
Manufacturer Number:	52116-0241
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

Mizu-P25 5.00mm Pitch Waterproof Wire-to-Wire Plug Housing , 2 Circuits, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 52116-0241
Color:	Black
Series:	52116 - Mizu-P25 Waterproof - Splash Proof
Amperage:	3 A
Connector Type:	Mizu-P25 Waterproof, Splash Proof
Gender:	Plug
Housing Material:	Polyester
Number of Contacts:	2
Number of Rows:	1
Pitch:	5 mm
Material:	Polyester
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Connector System:	Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Part Aliases:	0521160241
SKU:	MOL52116-0241

Detailed Description

The Mizu-P25 5.00mm Pitch Waterproof Wire-to-Wire Plug Housing is designed for reliable signal connectivity in demanding environments. With 2 circuits housed in durable black polyester, this connector ensures secure operation even in harsh conditions, with an operating temperature range of -40 to 105 °C. Featuring a compact 5mm pitch, it is ideal for space-constrained applications. Engineered for versatility, the Mizu-P25 is RoHS compliant and features a locking mechanism for added security. Whether used in automotive, industrial, or outdoor settings, this connector guarantees high performance and longevity. Trust in the Mizu-P25 for seamless signal transmission in your critical systems.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-52-0112	KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Reel, Phosphor Bronze Tin(Sn)
	Molex 16-02-0087	SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact, Reel
	Molex 19139-0018	Avikrimp Block Spade Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Width 6.22mm
	Molex 19418-0016	MX150L 2 Circuit Receptacle for 18-22 AWG Wire, without CPA, Black
	Molex 39-01-2020	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 39-01-4030	Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-2, Natural
	Molex 43030-0002	Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze Contact, 24-20 AWG, Reel
	Molex 50-57-9402	SL Crimp Housing, Single Row, Version G, Positive Latch, 2 Circuits, Black

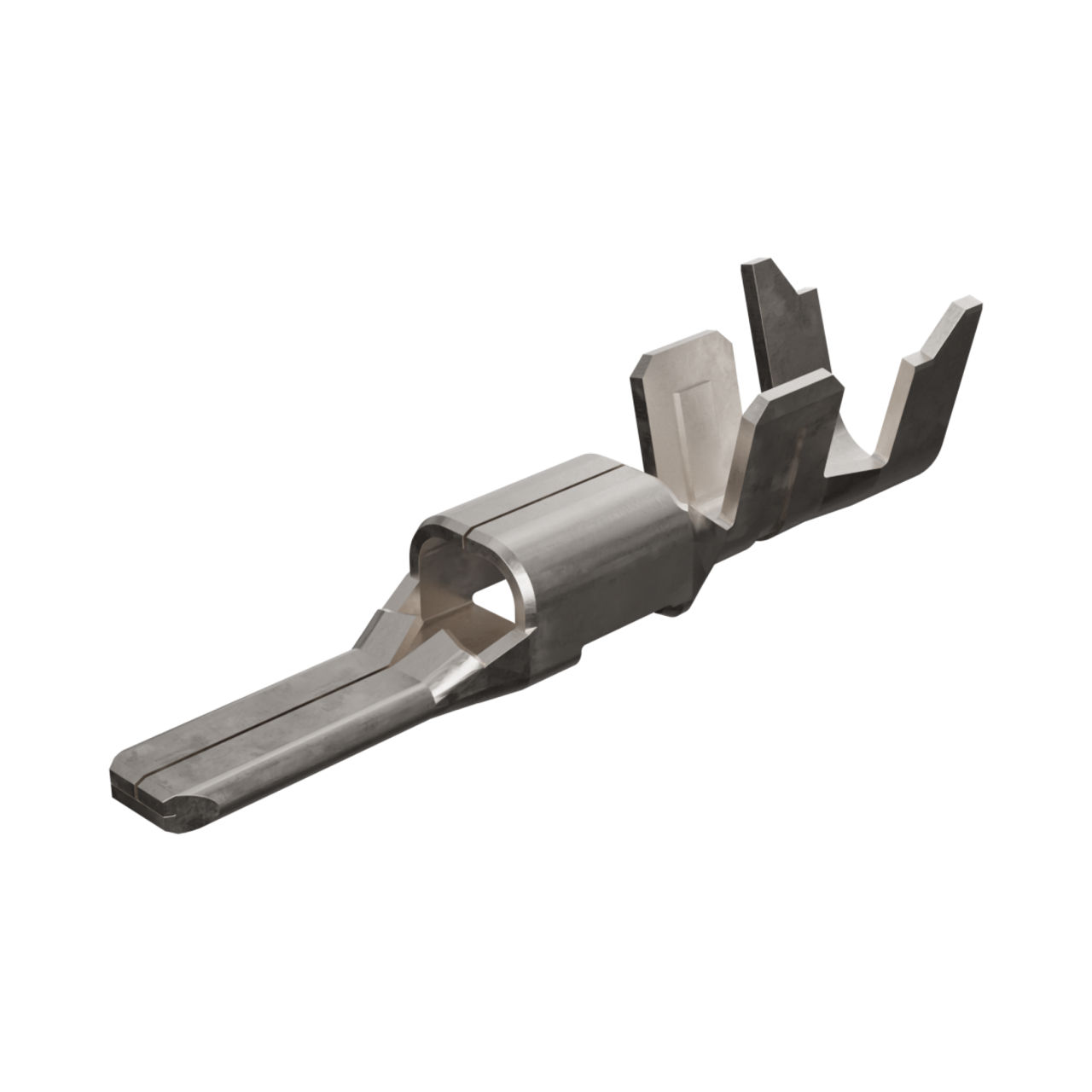

	Molex 50038-8000	2.50mm Pitch Mizu-P25 Crimp Terminal, 50038, Reel
	Molex 502578-0500	CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 5 Circuits, Beige
	Molex 503149-1200	1.50mm Pitch CLIK-Mate Wire-to-Board Housing, Dual Row, Positive Lock, 12 Circuits, Beige
	Molex 51021-0600	1.25mm Pitch PicoBlade Wire-to-Wire and Wire-to-Board Housing, Female, 6 Circuits, Natural

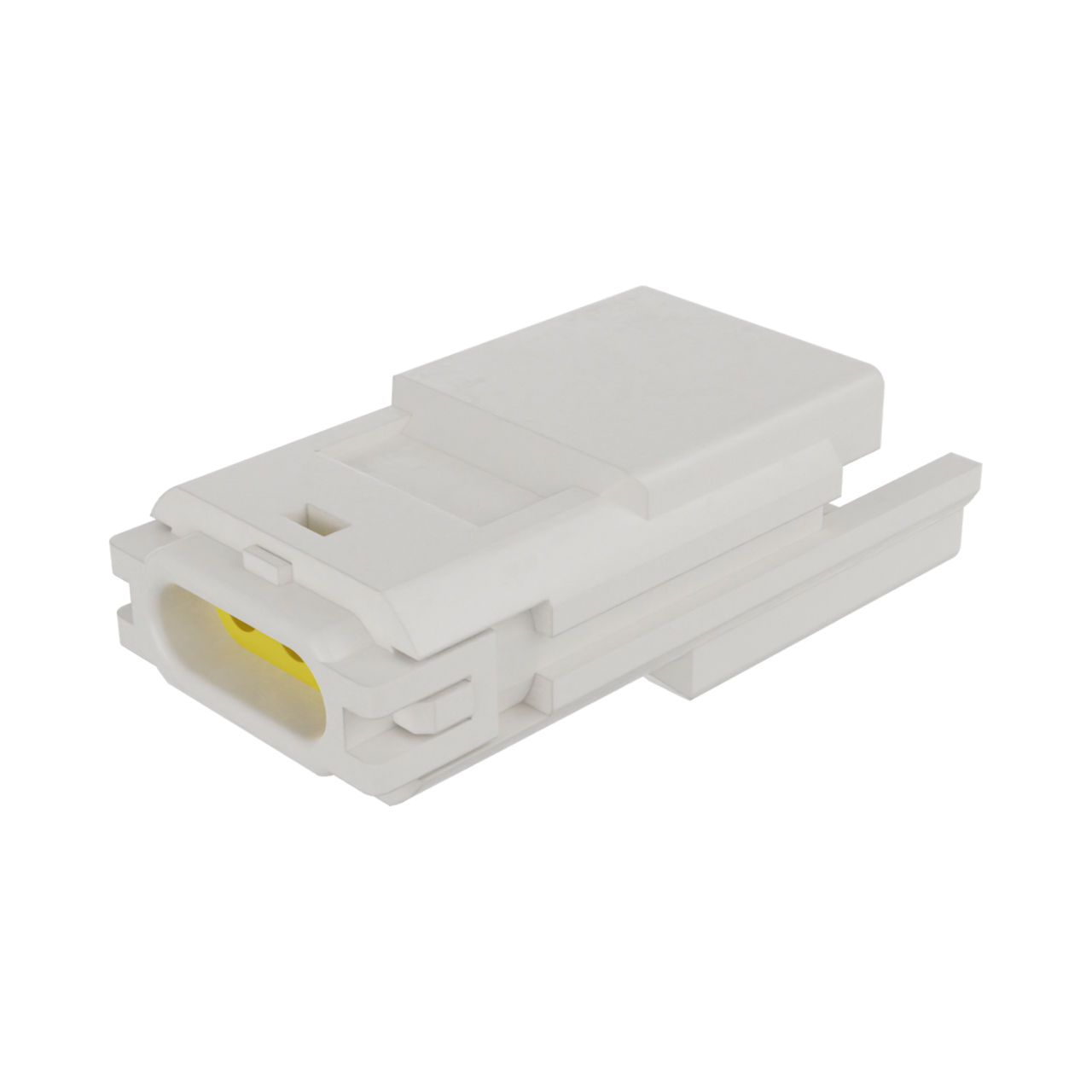

	Molex 52116-0340	Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 3 Circuits, White
