| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 50038-8000 |
| Series: | 50038 - Mizu-P25 Waterproof |
| Connector Type: | Mizu-P25 Waterproof |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Voltage: | 250 V |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .889 µm |
| Contact Termination Plating Thickness: | .914 µm |
| Wire Size: | 20 AWG, 22 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.8 - 1.9 mm |
| Part Aliases: | 0500388000 |
| SKU: | MOL50038-8000 |
50038-8000
| Heilind Number: | MOL50038-8000 |
| Manufacturer: | Molex |
| Manufacturer Number: | 50038-8000 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 50038-8000, a high-performance male connector from the Mizu-P25 Waterproof series. This connector, featuring a durable Phosphor Bronze contact material with tin plating, is designed for reliable signal transmission in demanding environments. With a voltage rating of 250 V, it ensures safe and efficient operation. The termination method, either crimp or compression, offers versatility in installation. Suitable for 22 AWG and 20 AWG wires with a diameter of 1.8-1.9 mm, this connector is perfect for a wide range of applications. RoHS compliant and available in bulk packaging, the 50038-8000 is the ideal choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19001-0001 | Avikrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm?), Box, Tab 6.35 x 0.81mm |  |
 | Molex 19070-0017 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 35156-0500 | 3.96mm Pitch Wire-to-Board Housing: Positive Locking, 5 Circuits, Natural | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-01-2040 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural | |
 | Molex 50217-9001 | 3.50mm Pitch Crimp Terminal 50217, 18-24 AWG, Reel, Brass | |
 | Molex 52116-0241 | Mizu-P25 5.00mm Pitch Waterproof Wire-to-Wire Plug Housing , 2 Circuits, Black | |
 | Molex 52116-0411 | Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 4 Circuits, Black | |
 | Molex 52213-0311 | Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing, 3 Circuits, Black | |
 | Molex 64319-1201 | CMC Wire Cap for 32 Circuits, CMC Receptacle Mat Sealed | |
 | Molex 64320-1301 | CMC Wire Cap for 48 Circuits and 28 Circuits, CMC Receptacle Mat Sealed | |
 | Molex 64320-1311 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Left Wire Output, Black Coding, Mat Sealed | |

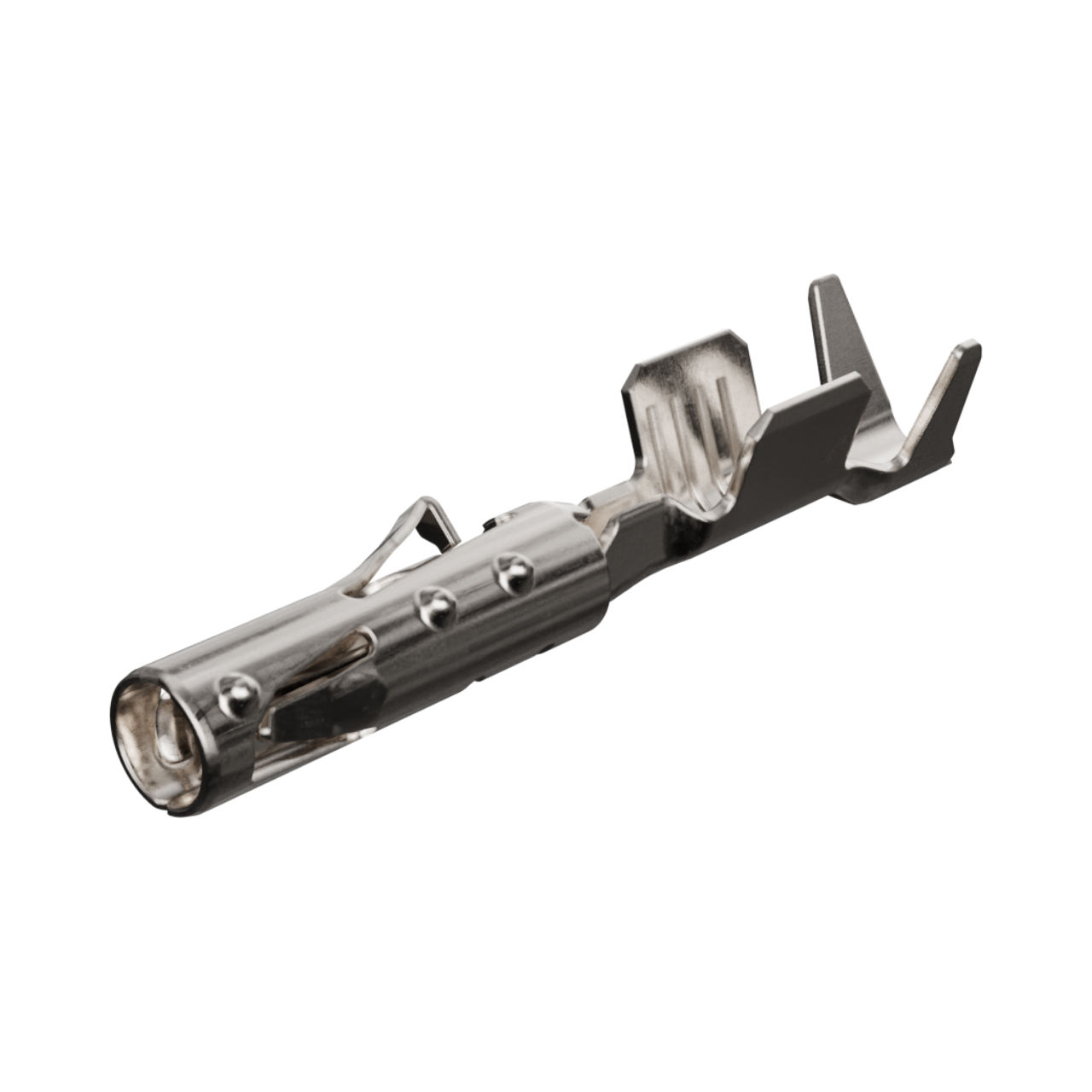

 | Molex 64322-1019 | 0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire Size 0.35mm | |
