| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 505151-0700 |
| Housing Material: | Polyester Alloy |
| Number of Rows: | 1 |
| Pitch: | 2 mm |
| Polarization: | Yes |
| Number of Positions: | 7 |
| Housing Color: | Black |
| Connector Housing Type: | Receptacle |
| Flammability Rating: | UL 94V-2 |
| Operating Temperature: | -40 to 125 °C |
| SKU: | MOL505151-0700 |
505151-0700
Specifications
Detailed Description
Introducing the 505151-0700, a high-performance DuraClik TPA Wire-to-Board Receptacle Housing designed for seamless signal connections. With 7 circuits housed in a sleek black polyester alloy casing, this connector ensures reliable performance even in demanding environments, with an operating temperature range of -40 to 125°C. Featuring a polarized mating design and a secure locking mechanism, it guarantees precise and stable connections. RoHS compliant and with a 2mm pitch, it is perfect for various applications in industries such as automotive, telecommunications, and consumer electronics. Upgrade to the DuraClik TPA Receptacle Housing for efficient and durable wire-to-board connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-55-0124 | KK High Pressure Crimp Terminal, Female, 30-24 AWG, Brass, 0.38µm Selective Gold (Au) Plating, Reel |  |
 | Molex 30700-1167 | 2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual Row, Female Harness Assembly, 16 Circuits, Polarization Option 1, Gray | |
 | Molex 30700-1207 | 2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual Row, Female Harness Assembly, 20 Circuits, Polarization Option 1, Gray | |
 | Molex 35155-0800 | 2.50mm Pitch Wire-to-Board Housing, Positive Lock, Natural, 8 Circuits | |
 | Molex 39-01-3029 | Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | |
 | Molex 43640-0201 | Micro-Fit 3.0 Plug Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 503149-1000 | CLIK-Mate Plug Housing, 1.50mm Pitch, Dual Row, Positive Lock, 10 Circuits, Natural | |

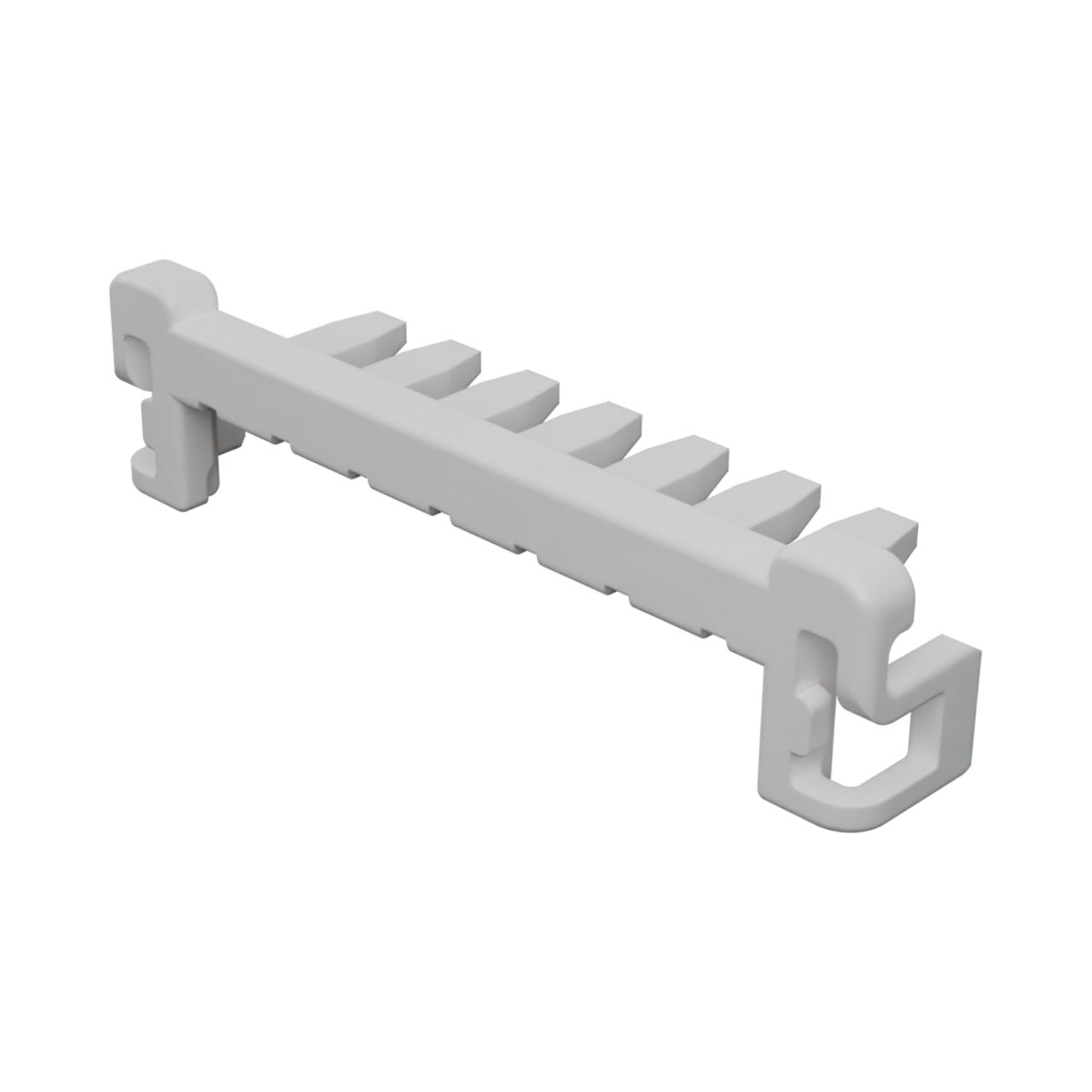

 | Molex 505152-0700 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 7 Circuits | |
 | Molex 70107-0003 | SL Wire-to-Wire Crimp Housing, Single Row, Version A, without Mounting Ears, 4 Circuits, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 10/03/2022 | 512508 - Change Supplier. there is unstable material delivery issue in order to support parts with out any delay the material will be replaced | Download | |||
| 03/07/2022 | Toray Resin Quality Notice - Recently, Toray Industries, Inc. issued a statement advising that certain resin products were improperly identified by Toray as having received certification from Underwriters Laboratories (UL) | Download | |||
| 07/01/2021 | 510049 - Change to Product. Remove the concave and then return to the original size of the air venting to reduce quality risks of bubble & gate flash. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
