| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 30700-1167 |
| Color: | Gray |
| Series: | 30700 - H-DAC 64 |
| Amperage: | 7 A |
| Connector Type: | H-DAC 64 |
| Gender: | Receptacle |
| Housing Material: | Polyester |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Pitch: | 2.54 mm |
| Material: | Modified Polystyrene Alloy, Polyester |
| Operating Temperature Range: | -40 - 100 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0307001167 |
| SKU: | MOL30700-1167 |
30700-1167
| Heilind Number: | MOL30700-1167 |
| Manufacturer: | Molex |
| Manufacturer Number: | 30700-1167 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual Row, Female Harness Assembly, 16 Circuits, Polarization Option 1, Gray
More >>Specifications
Detailed Description
Introducing the 30700-1167, a high-performance 16-contact receptacle connector from the renowned 30700 H-DAC 64 series. Designed for robust power applications, this connector features a durable polyester housing and is constructed from a Modified Polystyrene Alloy for enhanced reliability in extreme operating conditions ranging from -40 to 100 °C. With a pitch of 2.54 mm, it offers secure wire-to-wire and wire-to-board connectivity. Engineered for safety, it is polarized to mate correctly every time and includes a locking feature for added security. This RoHS-compliant connector is a perfect choice for a wide range of industrial and commercial applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 30968-1167 | 2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Crimp Housing, Dual Row, 16 Circuits, Polarization Option #1, Gray |  |

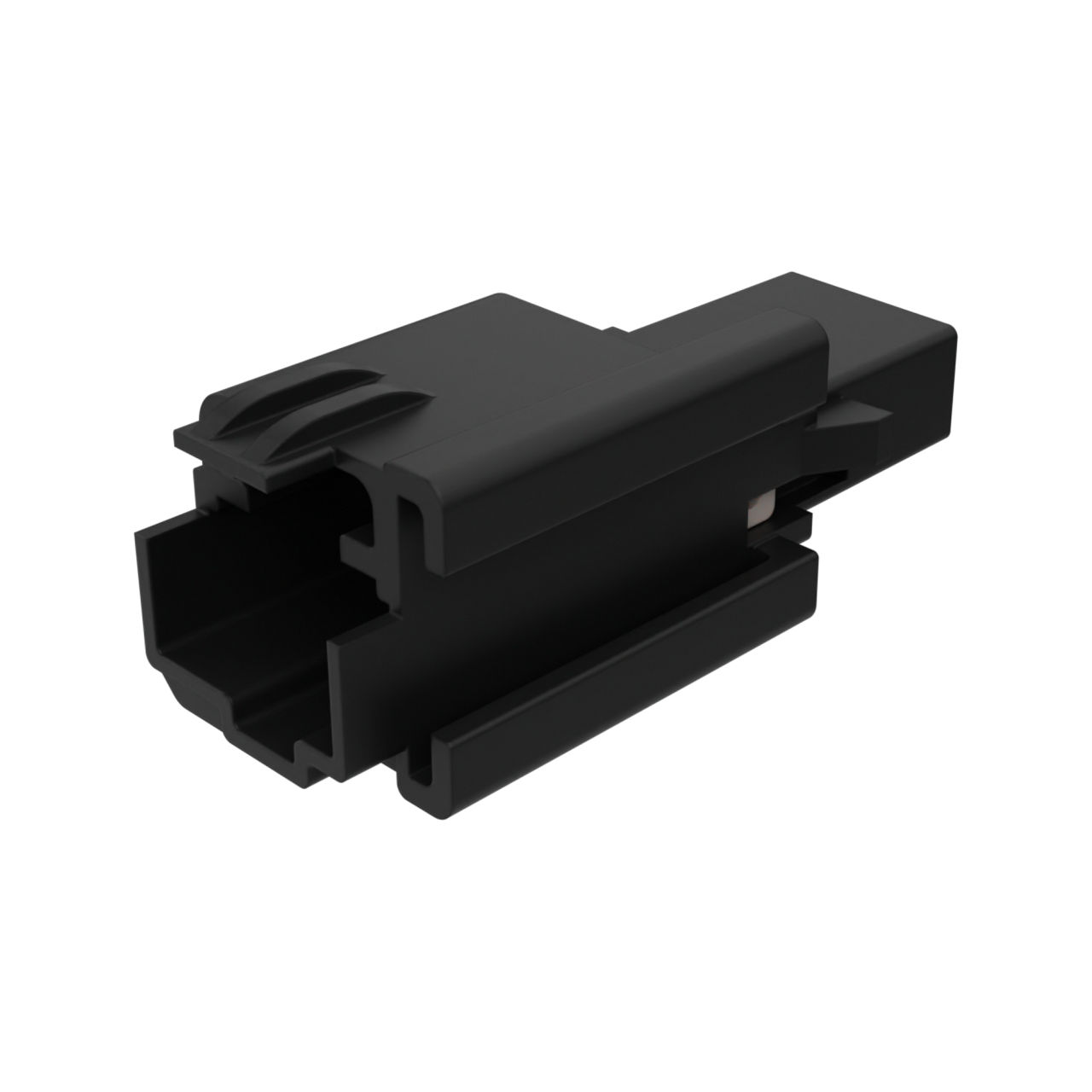

 | Molex 31067-1070 | 2.54mm H-DAC 64, 3 Way Male Housing Assembly, Single Row, Polarization A, with Xmas Tree Attachment, Black | |
 | Molex 31068-1010 | 2.54mm H-DAC 64, 4 Way Receptacle Assembly, Single Row, Polarization A | |

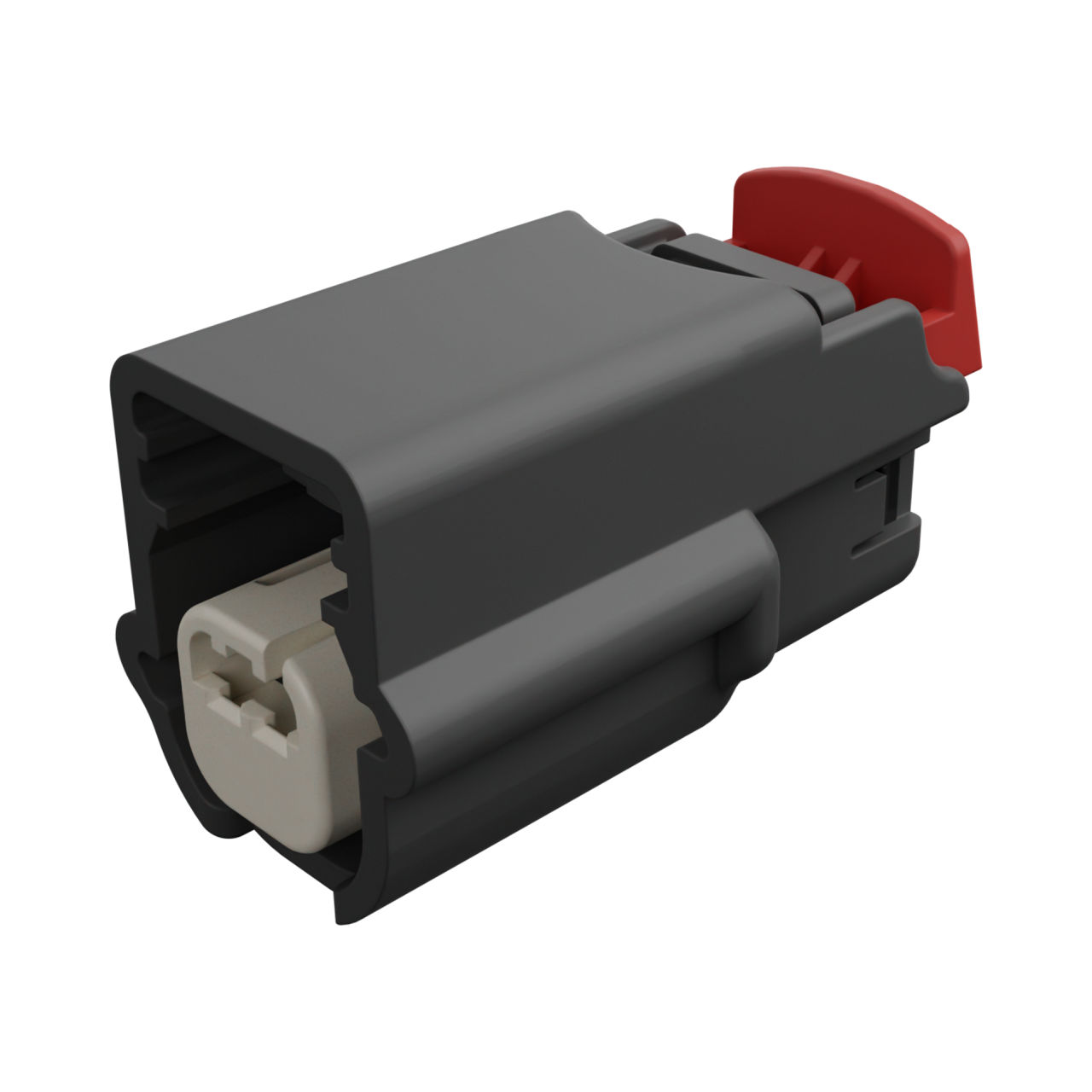

 | Molex 31403-2210 | 2.54mm MX64 Sealed Single Row Crimp Housing, MX64 Terminal, Gray, 2 Circuits, Key B, with CPA Lock | |
