501645-1620

Heilind Number:	MOL501645-1620
Manufacturer:	Molex
Manufacturer Number:	501645-1620
Datasheet:	Application Specification
ECAD Model:

Description:

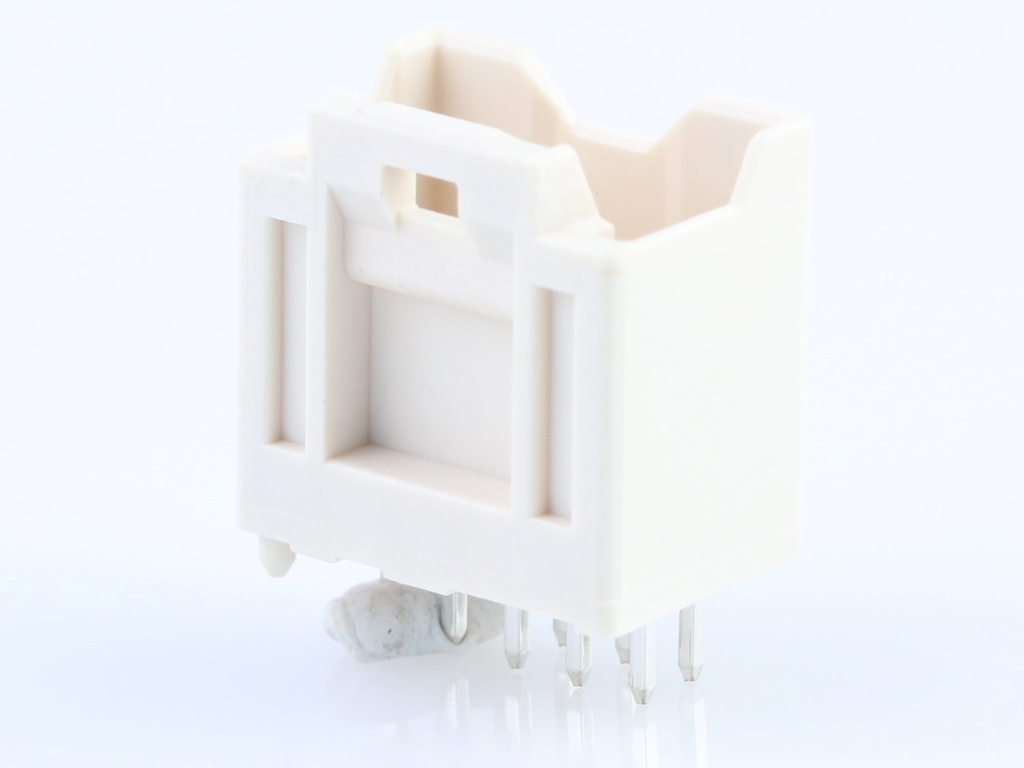

2.00mm Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, with PCB Locator, 16 Circuits

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 501645-1620
Color:	Natural
Series:	501645 - iGrid
Amperage:	2 A
Connector Type:	iGrid
Number of Contacts:	16
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	2 mm
Voltage:	250 V AC/DC
Material:	Nylon
Orientation:	Vertical
Keying:	Yes
Tail Length:	3.2 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Tin
Number of Contacts Loaded:	16
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Without
Polarized to PCB:	Yes
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.2 mm, 1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Material Flammability Standard:	94V-0
Part Aliases:	5016451620
SKU:	MOL501645-1620

Detailed Description

Introducing the 501645-1620 iGrid 2A 16-Contact Through Hole Connector, a versatile and reliable solution for your PCB connection needs. With a straight body orientation and vertical termination, this connector offers seamless integration onto your board. Constructed with brass contacts and a nylon housing, it ensures durability and performance in a wide range of applications. Featuring a pitch of 2mm and a voltage rating of 250V AC/DC, it is suitable for both power and signal transmission. With keying, polarization, and PCB locator features, it guarantees secure and accurate mating. RoHS compliant and with a wide operating temperature range, this connector is a dependable choice for your projects.
