| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 501568-1007 |
| Color: | Natural |
| Series: | 501568 - Pico-Clasp |
| Amperage: | 1 A |
| Connector Type: | Pico-Clasp |
| Number of Contacts: | 10 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Phosphor Bronze |
| Body Orientation: | Right Angle |
| Pitch: | 1 mm |
| Voltage: | 50 V AC/DC |
| Material: | Nylon |
| Orientation: | Right Angle |
| Packaging: | Embossed Tape on Reel |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 10 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Yes |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Breakaway: | No |
| Part Aliases: | 5015681007 |
| SKU: | MOL501568-1007 |
501568-1007
Specifications
Detailed Description
Introducing the 501568-1007 Pico-Clasp Wire-to-Board Connector, a compact and reliable solution for your PCB connectivity needs. This connector, part of the 501568 series, features 10 contacts in a single row, with a low 1A amperage and 50V AC/DC voltage rating, making it ideal for small-scale applications. Constructed with a durable nylon body and tin-plated phosphor bronze contacts, it offers excellent conductivity and longevity, even in harsh operating conditions ranging from -40 to 105°C. Its surface mount termination method and right-angle orientation allow for easy PCB assembly, while embossed tape packaging ensures convenient handling. With UL E29179 certification and RoHS compliance, this connector guarantees safety and environmental responsibility. Trust the Pico-Clasp Wire-to-Board Connector for secure and efficient board-level connections in your designs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-29-1025 | 2.54mm Pitch C-Grid Shunt Terminal Housings, 0.381 |  |
 | Molex 15-47-7620 | 2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 20 Circuits, 0.38 | |
 | Molex 22-11-2162 | KK 254 Solid Header, Vertical, with Friction Lock, 16 Circuits, Gold (Au) Plating | |

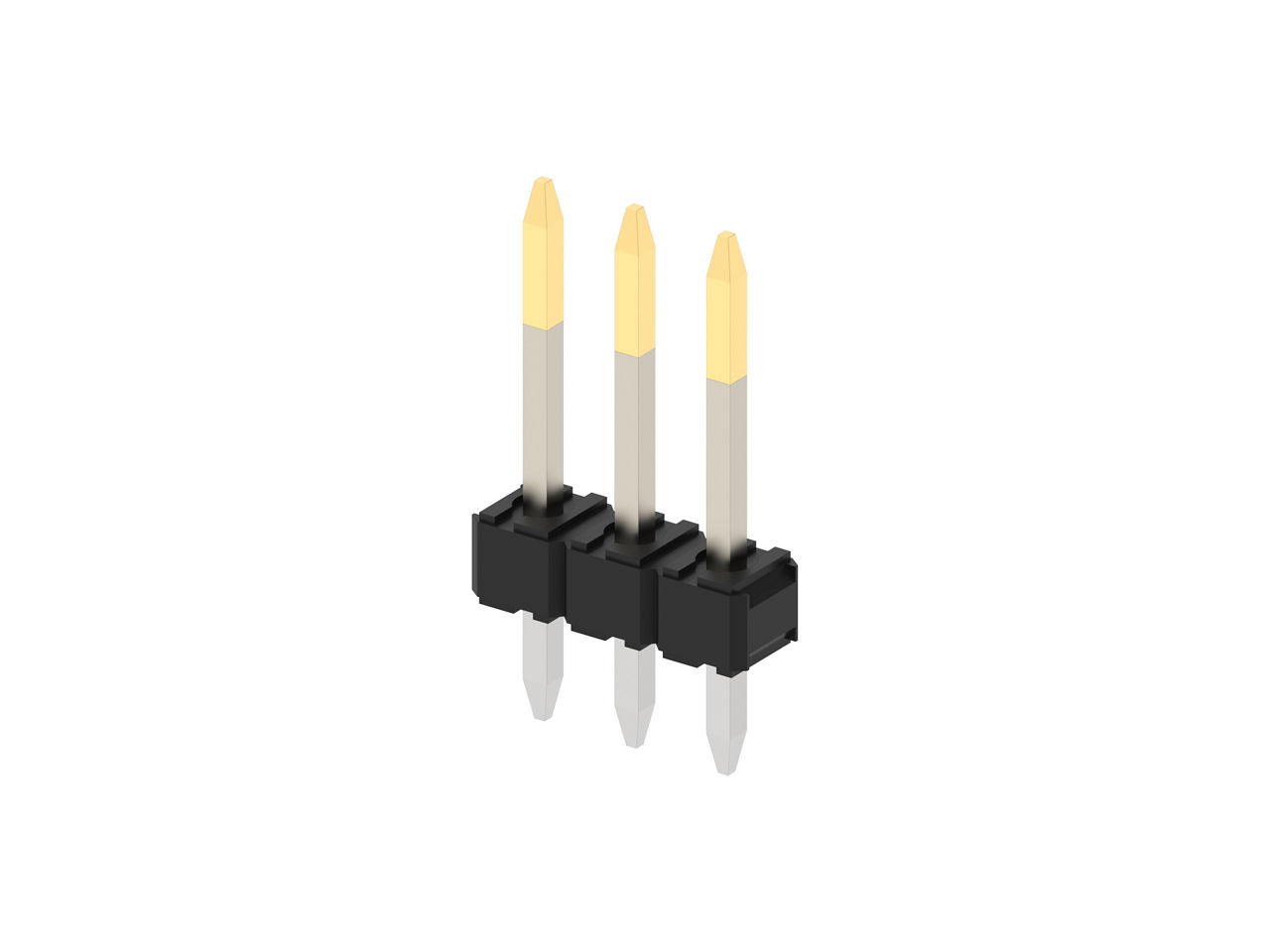

 | Molex 22-28-4034 | KK 254 Breakaway Header, Vertical, 3 Circuits, 0.38 | |
