50148-8100

Heilind Number:	MOL50148-8100
Manufacturer:	Molex
Manufacturer Number:	50148-8100
Datasheet:	Product Specification
ECAD Model:

Description:

2.50mm Pitch Mizu-P25 Crimp Terminal, 50148, Bag

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 50148-8100
Series:	50148 - Mizu-P25 Waterproof
Connector Type:	Mizu-P25 Waterproof
Gender:	Female
Termination Method:	Crimp or Compression
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Voltage:	125 V
Packaging:	Bag
Circuit Application:	Signal
Contact Mating Area Plating:	Tin
Wire Size:	20 AWG, 22 AWG
Connector System:	Wire to Wire
Contact Termination Plating:	Tin
Wire Insulation Diameter:	1.4 - 1.9 mm
Product Name:	Mizu-P25 Waterproof
Part Aliases:	0501488100
SKU:	MOL50148-8100

Detailed Description

The Mizu-P25 Waterproof Female Connector, part of the 50148 series, offers reliable signal transmission in demanding environments. With a voltage rating of 125V, it is suitable for various applications. Featuring a durable phosphor bronze contact material with tin plating, it ensures excellent conductivity and corrosion resistance. The crimp or compression termination method accommodates 22-20 AWG wires, with insulation diameters of 1.4-1.9mm. This connector, also known as 50148-8100, is RoHS compliant and comes in a convenient bag packaging. Perfect for wire-to-wire connections, it is a versatile and high-quality component for your projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-1119	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1381, Female, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Bag
	Molex 02-09-2118	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1380, Male, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Bag
	Molex 03-09-1064	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 6 Circuits, Dual Row, Natural
	Molex 03-09-2061	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 6 Circuits, Dual Row
	Molex 19003-0001	InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 6.35 x 0.81mm
	Molex 19070-0045	InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0040	Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-01-3023	Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-2, without Panel Mounting Ears, Natural
	Molex 43025-1600	Micro-Fit 3.0 Receptacle Housing, Dual Row, 16 Circuits, UL 94V-0, Black

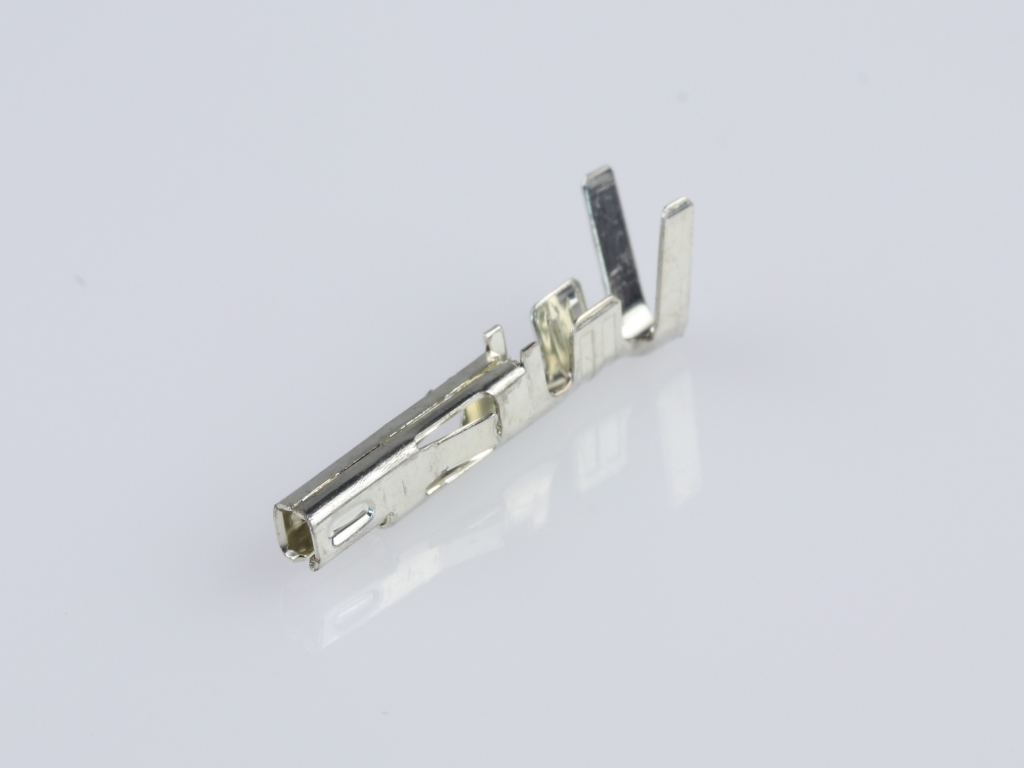

	Molex 45750-1111	Mini-Fit Plus Crimp Terminal, 20-18 AWG, Reel, Copper (Cu) Alloy, Tin (Sn)

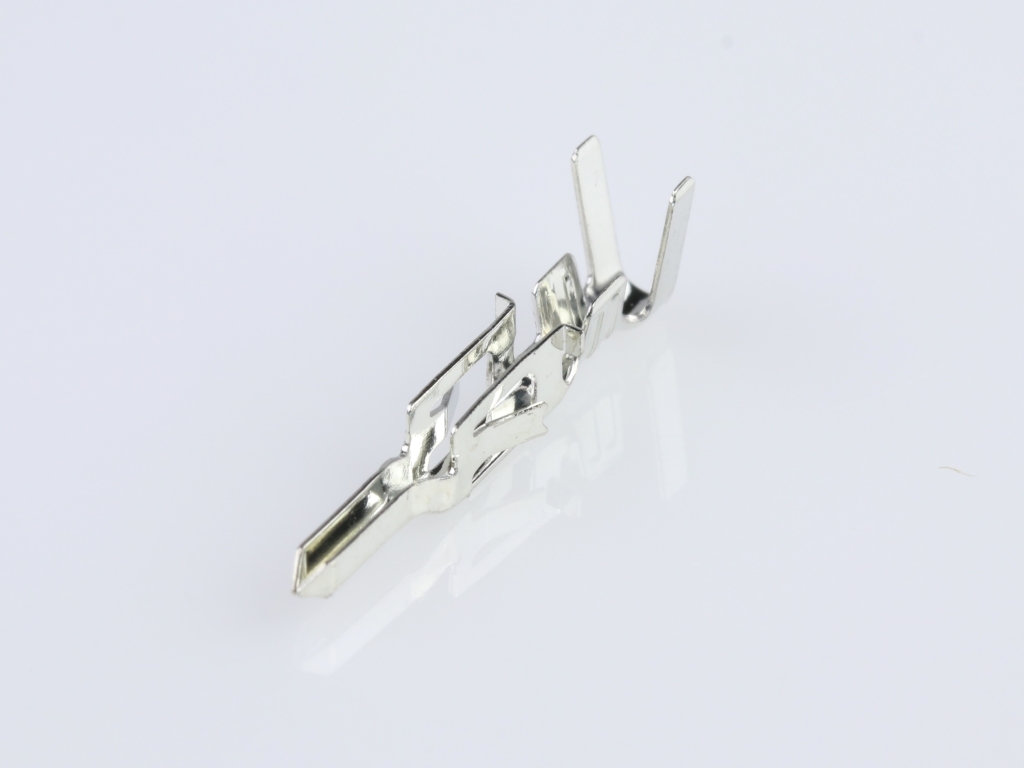

	Molex 46012-3142	Mini-Fit Plus Crimp Terminal, 16 AWG, Tin (Sn) Plating
	Molex 50147-8100	2.50mm Pitch Mizu-P25 Crimp Terminal, 50147, Bag

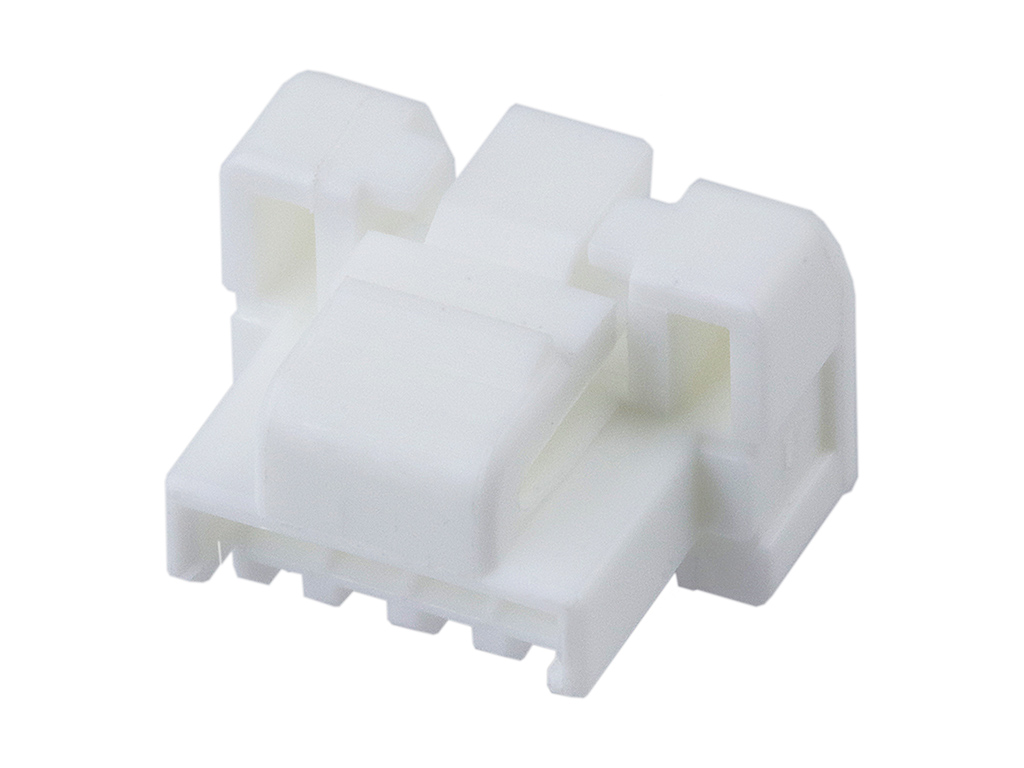

	Molex 502380-0400	1.25mm Pitch CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 4 Circuits, White
