| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 46012-3142 |
| Series: | 46012 - Mini-Fit Plus |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit Plus |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Mating Cycles: | 30 |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 16 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 2.2 - 3.15 mm |
| Part Aliases: | 0460123142 |
| SKU: | MOL46012-3142 |
46012-3142
Specifications
Detailed Description
Introducing the 46012-3142 Mini-Fit Plus Crimp Terminal, a versatile and reliable solution for your power connectivity needs. This male terminal, designed for 16 AWG wires, features a durable copper construction with a protective tin (Sn) plating, ensuring excellent conductivity and corrosion resistance. With a current rating of 13 A and a voltage tolerance of 600 V, it is suitable for a wide range of power applications. The crimp or compression termination method guarantees secure and efficient installation, while its compact size and wire-to-wire connector system offer flexibility in usage. RoHS compliant and in stock for immediate delivery, this terminal is a must-have for any project requiring high-performance power connections. Trust in the Mini-Fit Plus Crimp Terminal for seamless and dependable electrical connectivity.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-50-0189 | KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Bag, Brass Tin (Sn) |  |
 | Molex 19002-0001 | Avikrimp Fully Insulated Quick Disconnect, Female for 18-22 AWG Wire, Box | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-00-0040 | Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-01-2045 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2046 | Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-0, with Panel Mounting Ears, Natural | |
 | Molex 39-01-2085 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2086 | Mini-Fit Jr. Plug Housing, Dual Row, 8 Circuits, UL 94V-0, with Panel Mounting Ears, Natural | |
 | Molex 39-01-3028 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural | |
 | Molex 42815-0011 | Mini-Fit Sr. Crimp Terminal, Female, 10-12 AWG, Tin (Sn) | |
 | Molex 42816-0312 | 10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 3 Circuit, Black | |
 | Molex 43025-1200 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Black | |
 | Molex 44478-1111 | Mini-Fit HCS Crimp Terminal, 18-20 AWG, Reel, Copper (Cu) Alloy, Tin (Sn) | |
 | Molex 45750-1111 | Mini-Fit Plus Crimp Terminal, 20-18 AWG, Reel, Copper (Cu) Alloy, Tin (Sn) | |

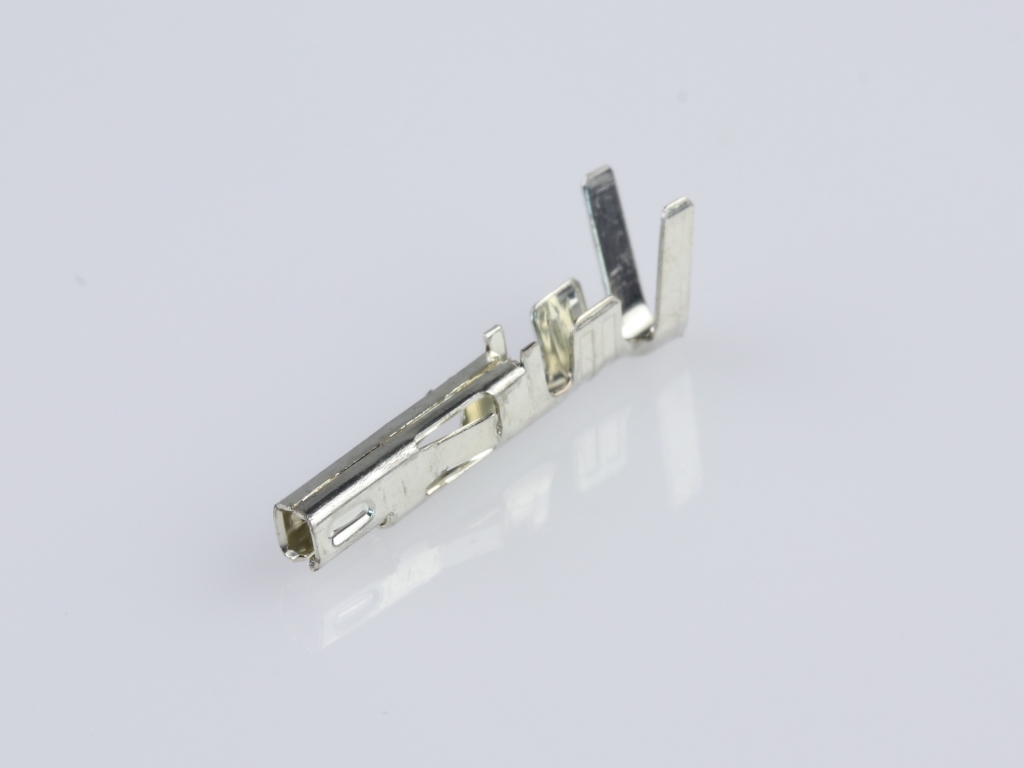

 | Molex 45750-3112 | Mini-Fit Plus Crimp Terminal, 16 AWG, Copper (Cu) Alloy, Tin (Sn) | |
