02-09-2118

Heilind Number:	MOL02-09-2118
Manufacturer:	Molex
Manufacturer Number:	02-09-2118
Datasheet:	Drawing
ECAD Model:

Description:

2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1380, Male, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Bag

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 02-09-2118
Series:	1380 - Standard .093"
Connector Type:	Standard .093"
Gender:	Male
Termination Method:	Crimp or Compression
Contact Material:	Brass
Contact Plating:	Tin
Packaging:	Bag
Circuit Application:	Power
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	.508 µm
Mating Cycles:	25
Contact Termination Plating Thickness:	.508 µm
Wire Size:	18 AWG, 20 AWG, 22 AWG
Connector System:	Wire to Wire
Contact Termination Plating:	Tin
Wire Insulation Diameter:	1.52 - 3.05 mm
Part Aliases:	0002092118 1380-(P901)L
SKU:	MOL02-09-2118

Detailed Description

Introducing the 02-09-2118, a male Standard .093" connector designed for reliable power applications. Crafted with brass contacts and tin plating, this connector ensures efficient signal transmission with minimal signal loss. Featuring a versatile crimp or compression termination method, it accommodates 22 AWG to 18 AWG wires, with insulation diameters ranging from 1.52 to 3.05 mm. With a durable construction and a mating cycle of 25, it guarantees long-lasting performance in various environments. RoHS compliant and packaged in a convenient bag, the 02-09-2118 is the ideal choice for your wire to wire connection needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-06-1103	1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Female, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Bag
	Molex 02-06-2103	1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Series 1560, Male, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Bag
	Molex 02-09-1104	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
	Molex 02-09-1119	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1381, Female, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Bag
	Molex 02-09-2103	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1190, Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
	Molex 03-09-1022	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, with Ramps, Natural
	Molex 03-09-1032	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural
	Molex 03-09-1049	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 4 Circuits, Dual Row, without Mounting Ears, Natural

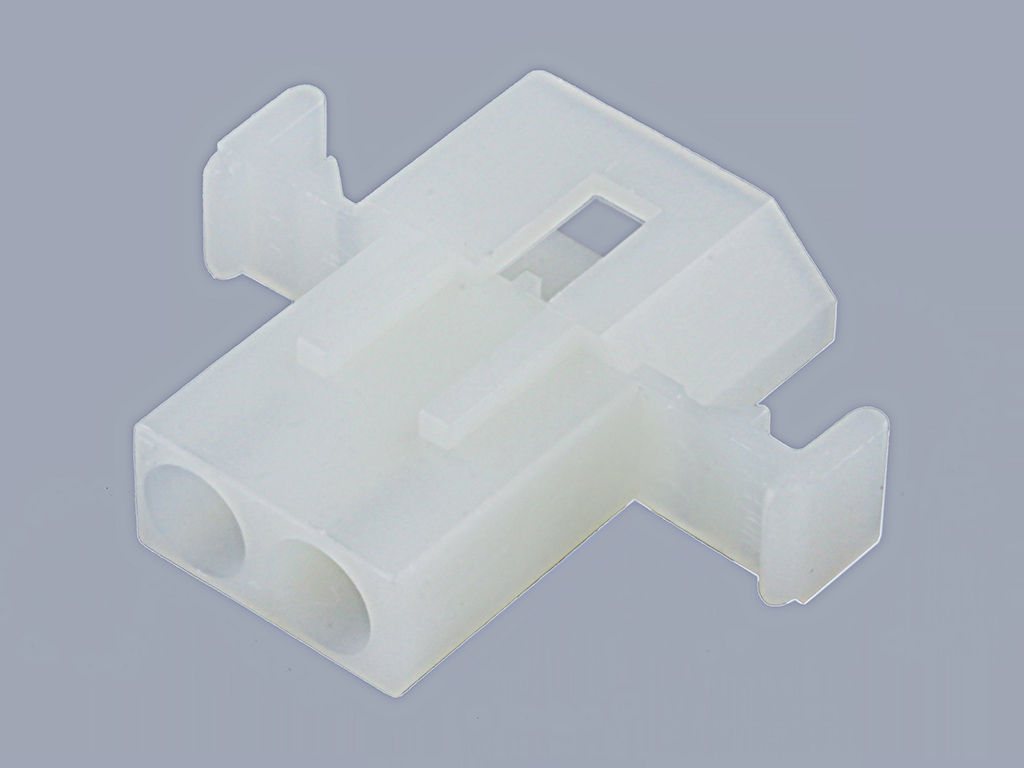

	Molex 03-09-2021	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 2 Circuits, with Standard Mounting Ears, Natural
	Molex 03-09-2022	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 2 Circuits, without Mounting Ears, Natural
	Molex 03-09-2032	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 3 Circuits, Single Row, Natural

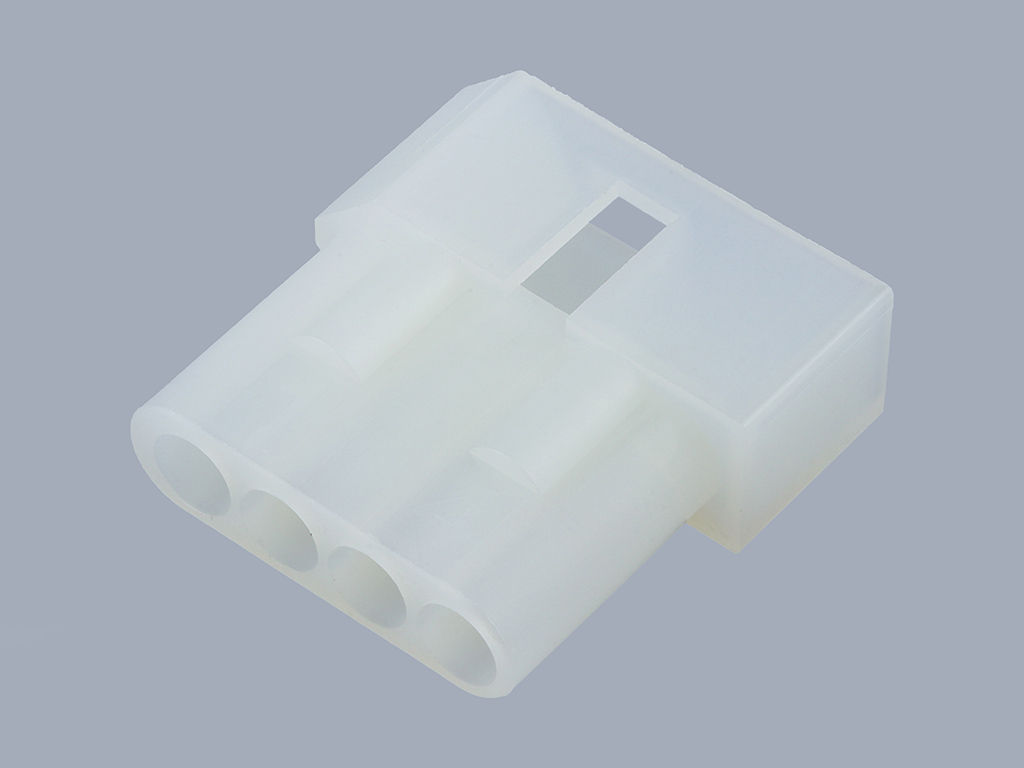

	Molex 03-09-2042	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 4 Circuits, Single Row

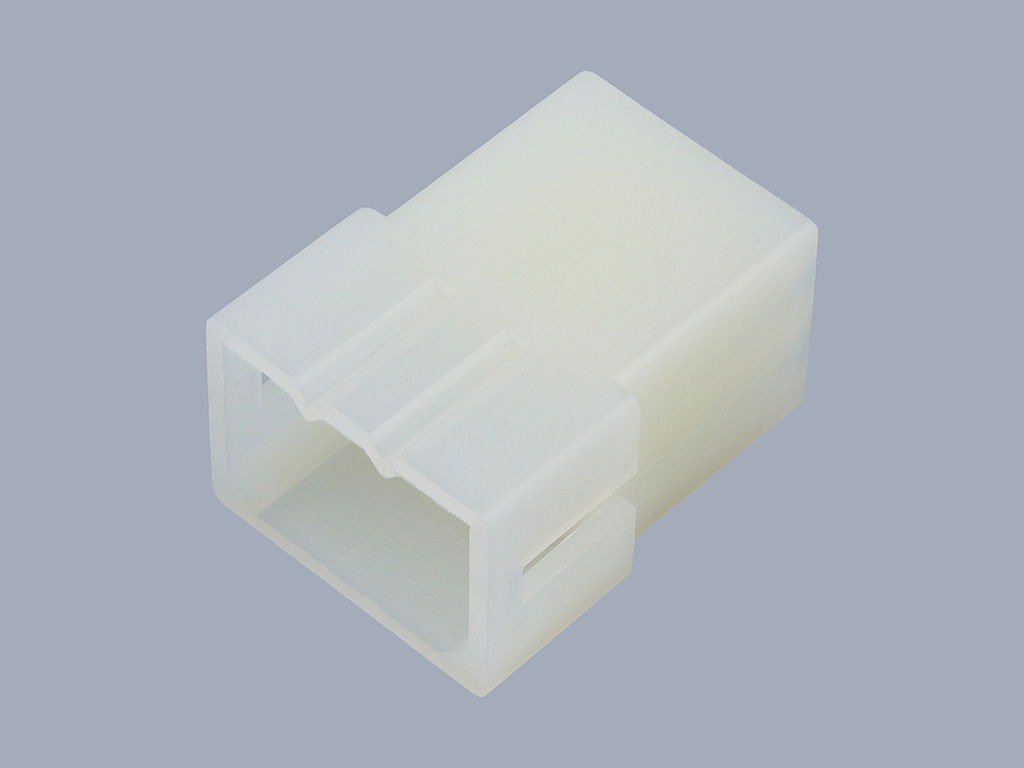

	Molex 03-09-2062	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 6 Circuits, Dual Row
	Molex 03-09-2092	2.36mm Diameter Standard .093 Pin and Socket Plug Housings, 9 Circuits, 3 Rows

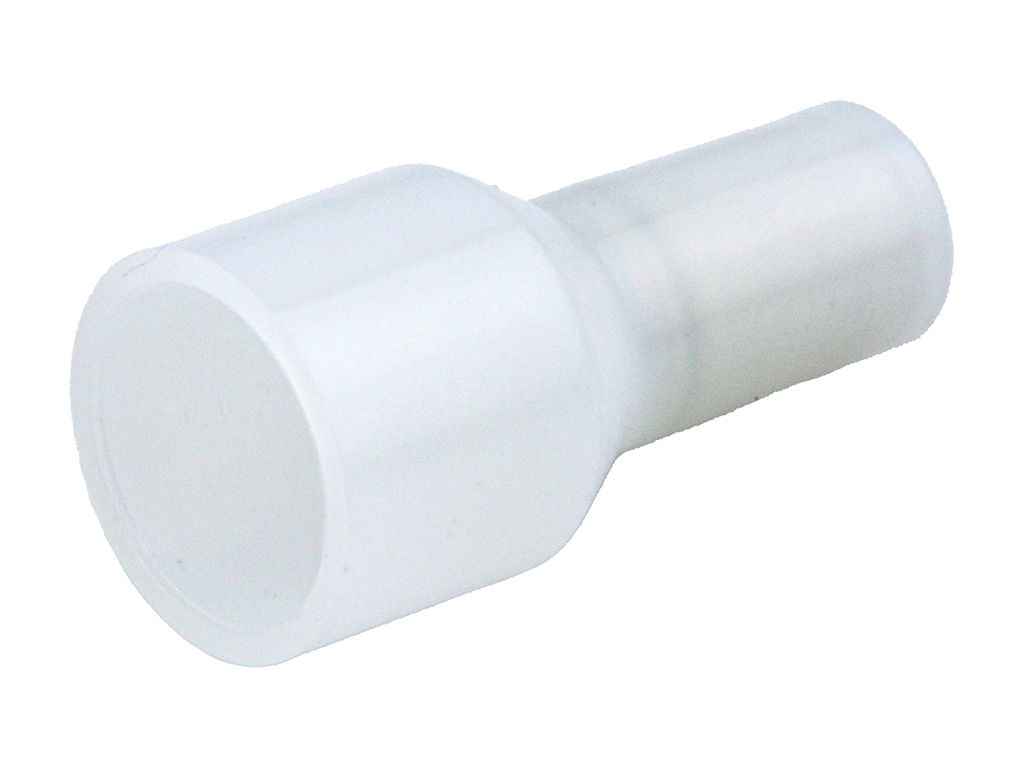

	Molex 19160-0071	Closed-End Insulated Splice for 12-22 AWG Wire, Tape and Reel
