50-57-9306

Heilind Number:	MOL50-57-9306
Manufacturer:	Molex
Manufacturer Number:	50-57-9306
Datasheet:	Product Specification
ECAD Model:

Description:

SL Crimp Housing, Single Row, Version D, Back Ribs, 6 Circuits, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 50-57-9306
Color:	Black
Series:	70066
Amperage:	3 A
Connector Type:	SL
Gender:	Receptacle
Number of Contacts:	6
Number of Rows:	1
Pitch:	2.54 mm
Material:	Polyester Alloy
Keying:	Yes
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	No
Stackable:	Yes
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0050579306 70066-0110
SKU:	MOL50-57-9306

Detailed Description

Introducing the 50-57-9306 SL Crimp Housing, a versatile and reliable solution for your wire-to-board connectivity needs. This single-row housing, featuring Version D design with back ribs, accommodates 6 circuits with precision. Crafted from durable black polyester alloy, it offers excellent performance even in demanding environments. With a low amperage rating of 3A, this connector is ideal for signal applications. Its 2.54mm pitch and keying feature ensure secure and accurate mating. While not glow-wire capable or lockable to mating parts, it is stackable for added convenience. Rest assured, this product is RoHS compliant, making it a sustainable choice for your projects. Update your connector system with the SL Crimp Housing and experience seamless wire-to-board connectivity.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-06-1101	1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Female, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Reel
	Molex 03-06-2032	1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 3 Circuits, without Mounting Ears, Natural
	Molex 10-84-4042-TAN	6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 4 Circuits
	Molex 15-04-5084	2.54mm SL Interim Clip, 8 Circuits, Polarized
	Molex 15-04-5124	2.54mm SL Interim Clip, 12 Circuits, Polarized

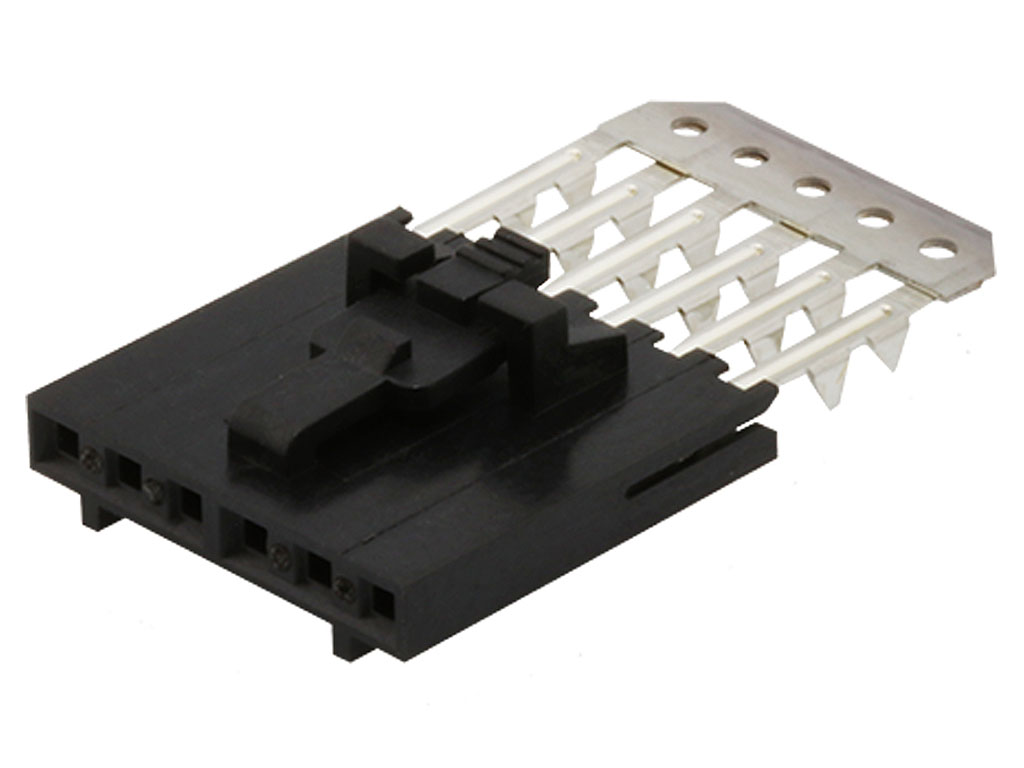

	Molex 15-47-4253	SL Single Row, Female, Version G Receptacle, 25 Circuits
	Molex 16-02-0087	SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact, Reel
	Molex 19073-0067	Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 6 (M3.5), Length 20.32mm
	Molex 19419-0008	MX150L 2 Circuit Plug for 18-22 AWG Wire
	Molex 39-01-2085	Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Natural
	Molex 39-30-1040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural

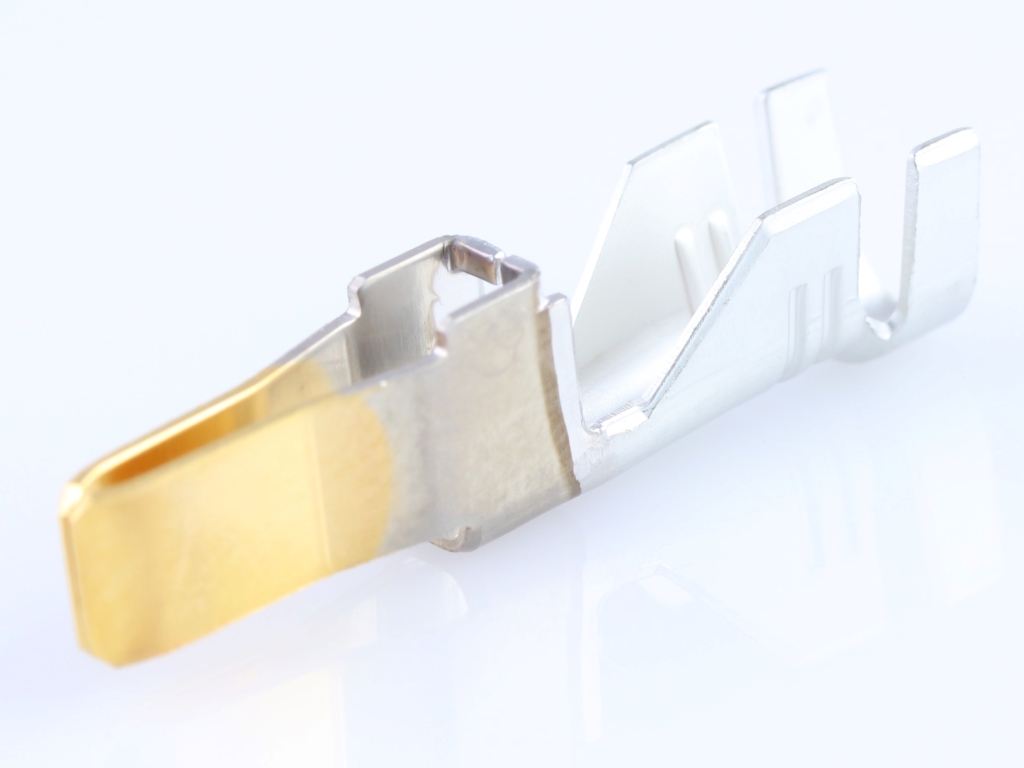

	Molex 42817-0032	Mini-Fit Sr. Crimp Terminal, Male, 8 AWG, Gold (Au)
	Molex 43025-1200	Micro-Fit 3.0 Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Black
	Molex 43025-1400	Micro-Fit 3.0 Receptacle Housing, Dual Row, 14 Circuits, UL 94V-0, Low-Halogen, Black

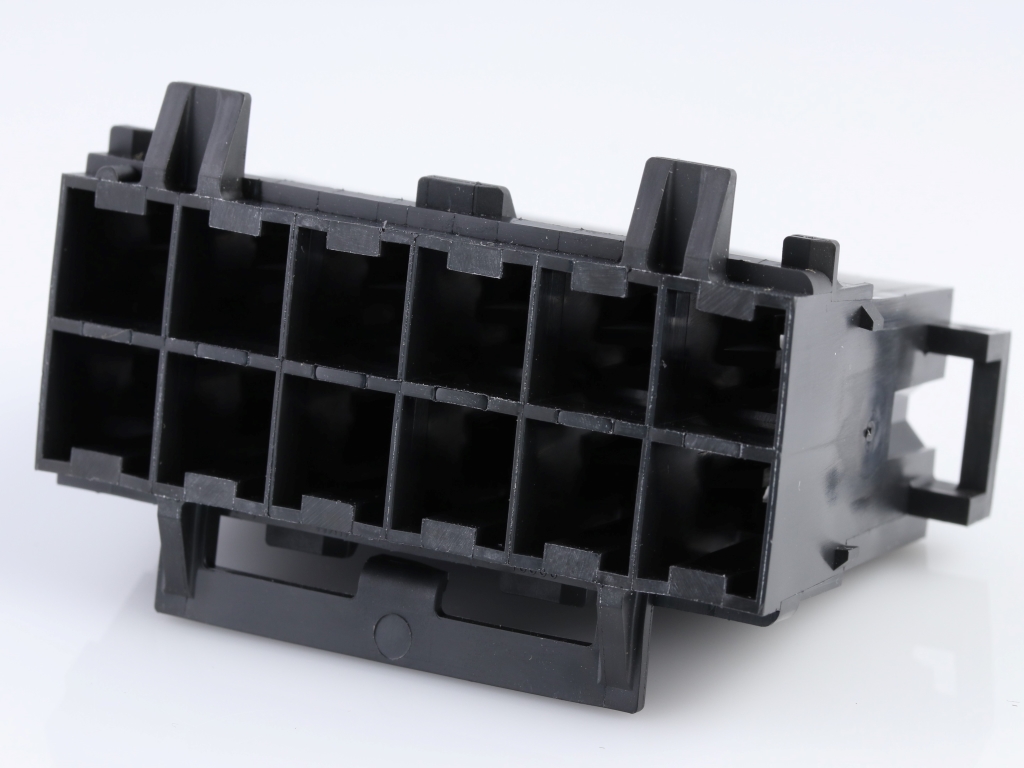

	Molex 43938-2204	10.00mm Pitch Mini-Fit Sr. Plug Housing, Dual Row, Panel Mount, 12 Circuits, Black
