| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19073-0067 |
| Series: | 19073 - Avikrimp |
| Connector Type: | Avikrimp |
| Contact Plating: | Tin |
| Stud Size: | 5-6 (M3-3.5) |
| Insulation Material: | Nylon (PA) |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 4.3 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190730067 BB-823-06 |
| SKU: | MOL19073-0067 |
19073-0067
Specifications
Detailed Description
The 19073-0067 is a high-quality Avikrimp Ring Tongue Terminal designed for 14 to 16 AWG wires, featuring a durable tin contact plating for excellent conductivity. With a stud size of 6 (M3.5) and a length of 20.32mm, this terminal is suitable for a variety of applications. Constructed with Nylon (PA) insulation material, it meets international safety standards with both LR18689 and E32244 certifications. The closed barrel design ensures secure wire connections, accommodating insulation diameters up to 4.3mm. This RoHS-compliant terminal, also known as part number 190730067, is a reliable solution for your crimping needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

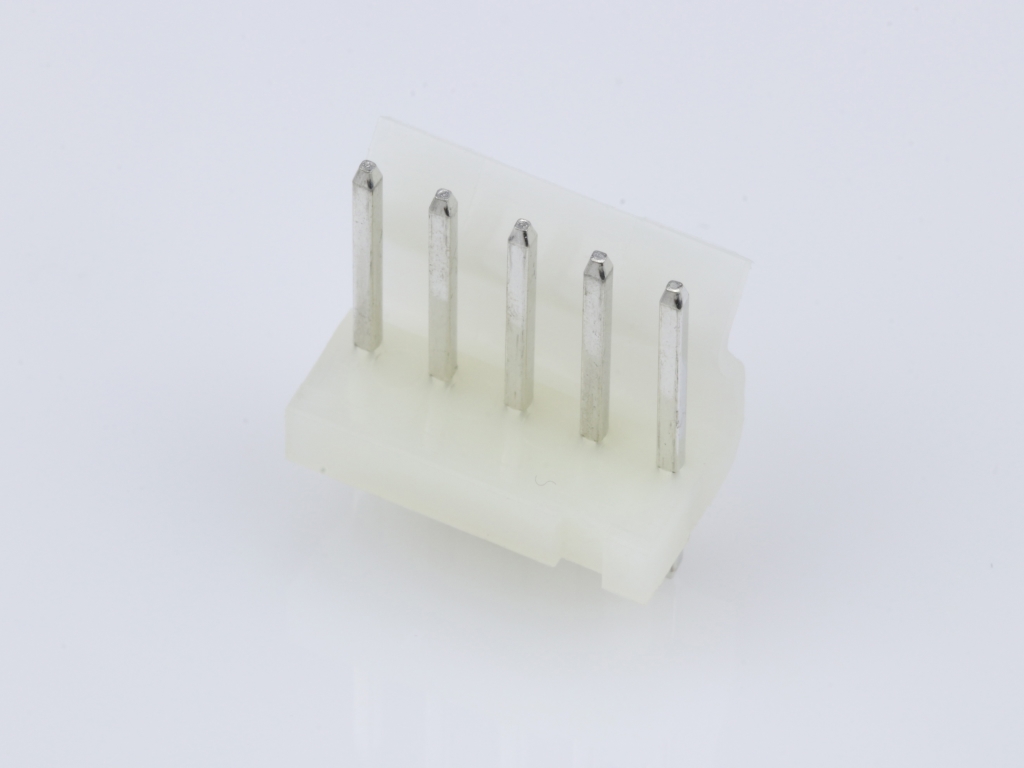

 | Molex 09-65-2058 | SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits |  |

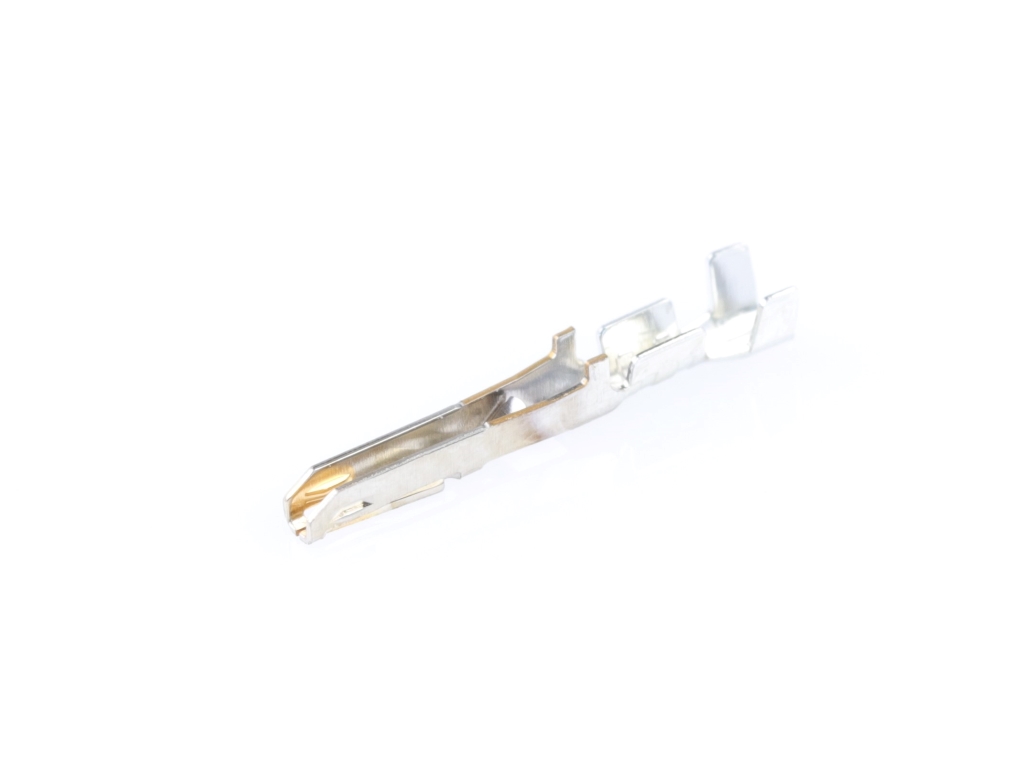

 | Molex 105300-1200 | Nano-Fit Crimp Terminal, Female, 0.38 | |
 | Molex 19019-0038 | Avikrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |

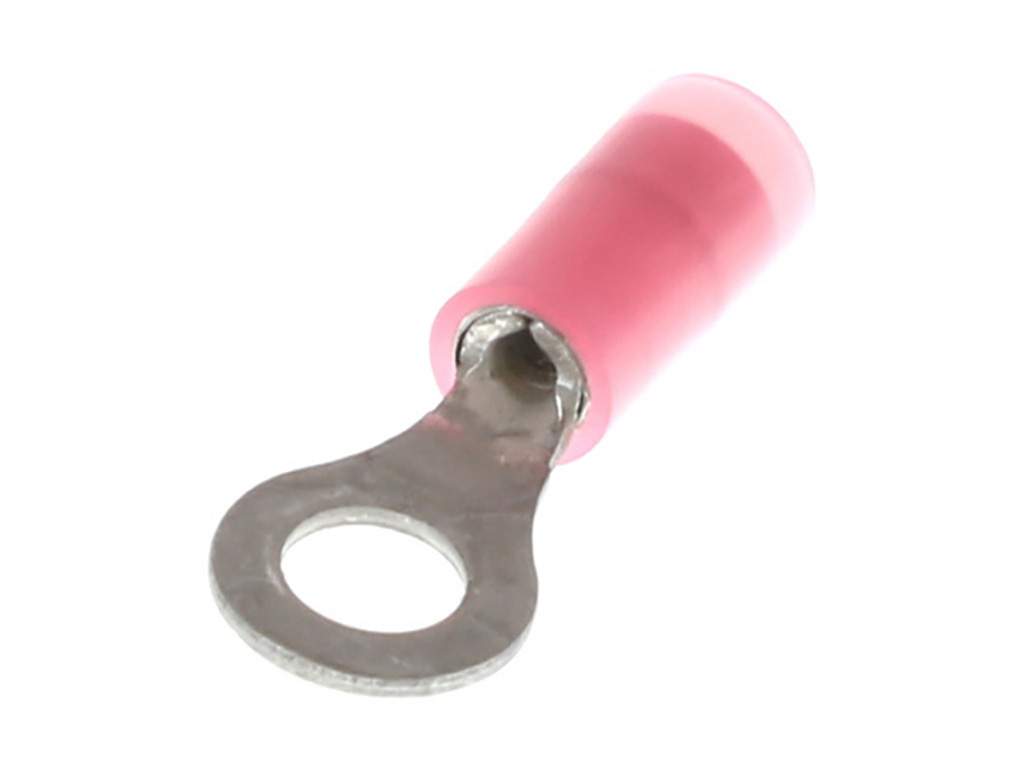

 | Molex 19073-0013 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 8 (M4), Length 22.00mm | |
