| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 50-57-9411 |
| Color: | Black |
| Series: | 70066 - CyClone - SL |
| Amperage: | 3 A |
| Connector Type: | CyClone, SL |
| Gender: | Receptacle |
| Number of Contacts: | 11 |
| Number of Rows: | 1 |
| Pitch: | 2.54 mm |
| Material: | Polyester Alloy |
| Keying: | Yes |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Connector System: | Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0050579411 70066-0185 |
| SKU: | MOL50-57-9411 |
50-57-9411
| Heilind Number: | MOL50-57-9411 |
| Manufacturer: | Molex |
| Manufacturer Number: | 50-57-9411 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 50-57-9411, a SL Crimp Housing designed for high-performance connectivity in electronic systems. This single-row housing, featuring Version G and a Positive Latch mechanism, ensures secure and reliable mating with CyClone SL receptacles. With 11 circuits and a pitch of 2.54mm, it accommodates signal transmission with precision. Constructed from a durable Polyester Alloy, this black housing is not only CSA and UL certified but also RoHS compliant, guaranteeing safety and quality. Operating efficiently in a wide temperature range from -40 to 105 °C, it is suitable for various applications. Whether in industrial machinery or consumer electronics, the 50-57-9411 offers uncompromising performance, making it the ideal choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-06-1101 | 1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Female, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Reel |  |
 | Molex 15-04-5124 | 2.54mm SL Interim Clip, 12 Circuits, Polarized | |
 | Molex 16-02-0087 | SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact, Reel | |
 | Molex 19-09-1039 | 2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, 94V-2, 3 Circuits | |
 | Molex 19221-0237 | Compression Style Ring Tongue Terminal for 1 AWG Wire, Stud Size 5/16 (M8), Tin Plated | |
 | Molex 19221-0422 | Compression Style Ring Tongue Terminal for 1/0 AWG Wire, Stud Size 1/4 (M6), Plated | |
 | Molex 35156-0300 | 3.96mm Pitch Wire-to-Board Housing: Positive Locking, 3 Circuits, Natural | |
 | Molex 39-00-0181 | Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 24-18 AWG, Reel | |
 | Molex 39-01-2060 | Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Natural | |
 | Molex 43640-0201 | Micro-Fit 3.0 Plug Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |

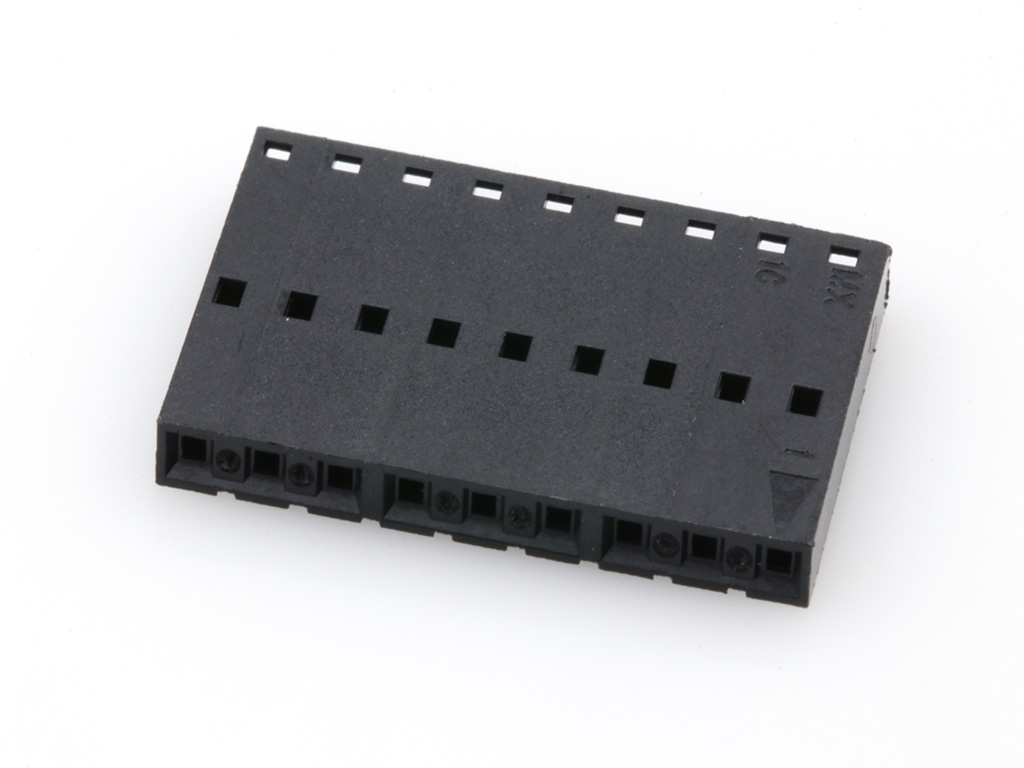

 | Molex 50-57-9009 | SL Crimp Housing, Single Row, Version A, Non-polarized, 9 Circuits, Black | |
 | Molex 50-57-9306 | SL Crimp Housing, Single Row, Version D, Back Ribs, 6 Circuits, Black | |
 | Molex 50-57-9404 | SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black | |
 | Molex 50-57-9405 | SL Crimp Housing, Single Row, Version G, Positive Latch, 5 Circuits, Black | |
 | Molex 50-57-9408 | SL Crimp Housing, Single Row, Version G, Positive Latch, 8 Circuits, Black | |

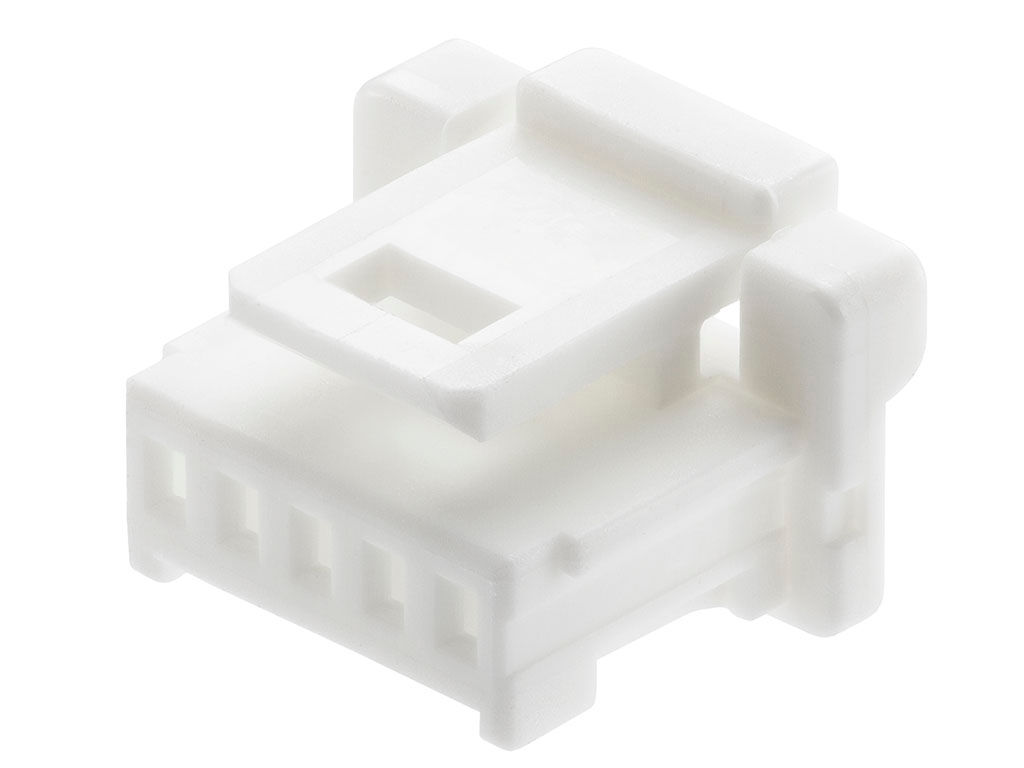

 | Molex 501939-0500 | 1.00mm Pitch Pico-Clasp Wire-to-Board Housing, Positive Lock, 5 Circuits | |
