50-57-9004

Heilind Number:	MOL50-57-9004
Manufacturer:	Molex
Manufacturer Number:	50-57-9004
Datasheet:	Product Specification
ECAD Model:

Description:

SL Crimp Housing, Single Row, Version A, Non-polarized, 4 Circuits, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 50-57-9004
Color:	Black
Series:	70066
Amperage:	3 A
Connector Type:	SL
Gender:	Receptacle
Number of Contacts:	4
Number of Rows:	1
Pitch:	2.54 mm
Material:	Polyester Alloy
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	No
Stackable:	Yes
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0050579004 70066-0003
SKU:	MOL50-57-9004

Detailed Description

Introducing the 50-57-9004, a high-quality SL Crimp Housing designed for efficient wire-to-board connectivity. This single-row housing, featuring Version A design with 4 non-polarized circuits, is essential for signal transmission in various electronic applications. Crafted from a durable polyester alloy, it ensures reliable performance even in demanding environments, with an operating temperature range of -40 to 105 °C. Its 2.54 mm pitch and receptacle gender make it compatible with SL connectors, offering easy and secure mating. RoHS compliant and stackable, this housing is not only environmentally friendly but also versatile in design. Trust the 50-57-9004 for your connectivity needs, guaranteeing quality and performance.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-50-0114	KK 254 Crimp Terminal, 22-30 AWG, Bag, Hot Tin (Sn) Dip Plating
	Molex 08-55-0102	KK 254 Crimp Terminal, 22-30 AWG, Bag, Selective Gold (Au), Nickel (Ni) Under Plating
	Molex 15-04-0292	Universal Polarizing Key, Black

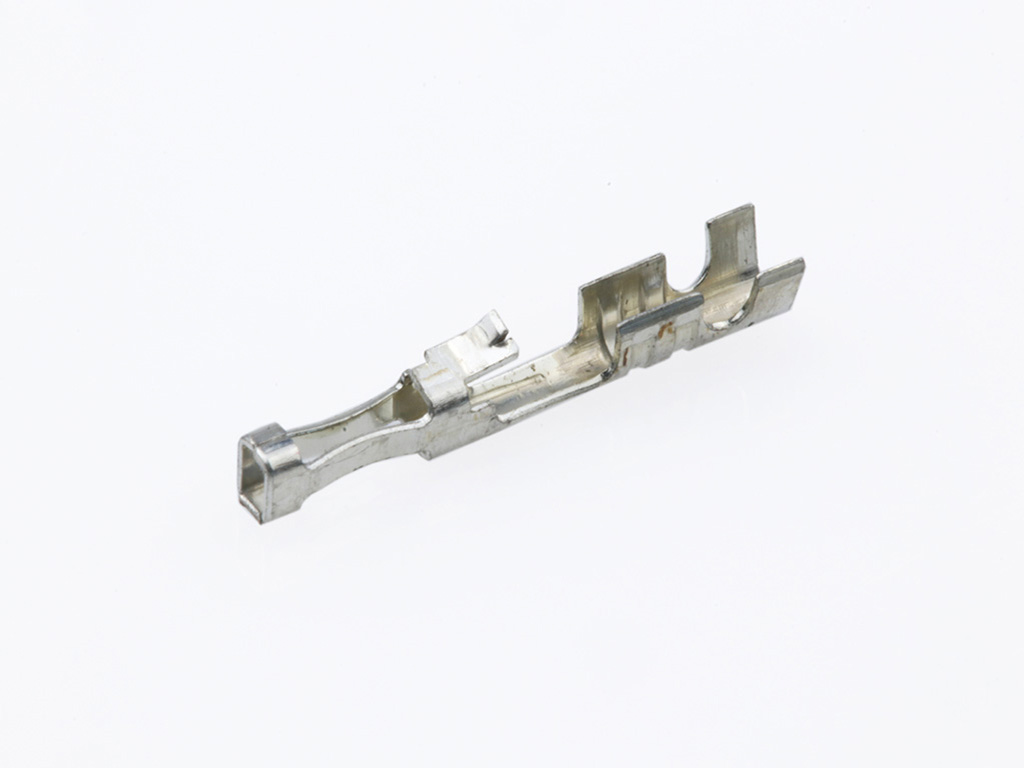

	Molex 16-02-1110	SL Crimp Terminal, Series 71851, Female, with Tin (Sn) Plated Contact, 24-22 AWG, Reel
