Attribute | Value |
---|---|
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 47725-6030 |
Color: | Gray (Dark) |
Series: | 47725 - MX150 |
Connector Type: | MX150 |
Gender: | Plug |
Housing Material: | Polybutylene Terephthalate |
Number of Contacts: | 12 |
Number of Rows: | 2 |
Mount Type: | Panel Mount |
Pitch: | 3.5 mm |
Material: | PBT |
Keying: | Yes |
Polarization: | C |
Packaging: | Tray |
Operating Temperature Range: | -40 - 125 °C |
Circuit Application: | Power |
Polarized to Mate: | Yes |
Connector System: | Wire to Wire |
Glow Wire Capable: | No |
Lock to Mating Part: | Yes |
Stackable: | No |
Product Name: | MX150 |
Part Aliases: | 0477256030 |
SKU: | MOL47725-6030 |
47725-6030
Specifications
Detailed Description
Introducing the MX150 Male Connector, a versatile and reliable solution for your power circuit applications. This panel mount connector features a dual-row design with 12 circuits, allowing for efficient connectivity. Constructed with a dark gray housing and a blue gasket, it not only offers durability but also ensures proper insulation. The Polybutylene Terephthalate housing material, along with a wide operating temperature range of -40 to 125 °C, guarantees performance in harsh environments. With keying and polarization features, this connector provides secure mating and prevents incorrect connections. RoHS compliant and suitable for wire-to-wire applications, the MX150 is a cost-effective and high-quality choice for your connectivity needs.
Frequently Bought Together
Product | Part # | Description | Stock |
---|---|---|---|
![]() | Molex 03-06-2024 | 1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 2 Circuits, with Pre-bent Mounting Ears, Natural | ![]() |
![]() | Molex 105307-1202 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 2 Circuits, Black, Glow-Wire Capable | ![]() |
![]() | Molex 172708-0006 | Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits | ![]() |
![]() | Molex 172709-0005 | Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 5 Circuits, White | ![]() |

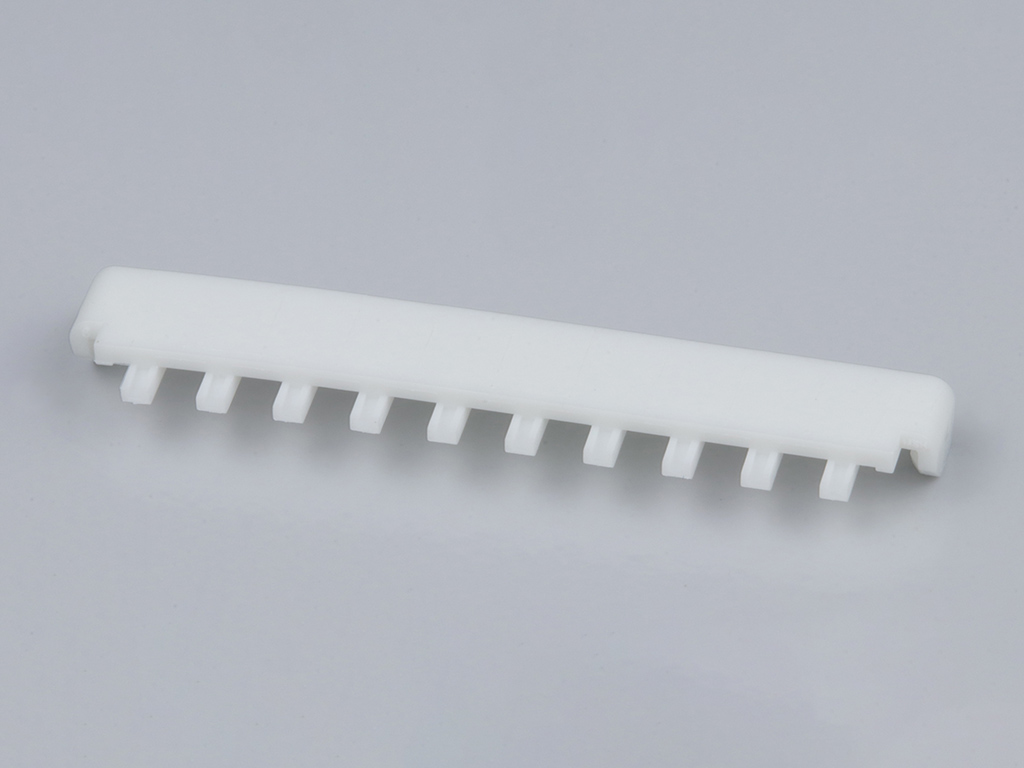

![]() | Molex 172953-2001 | Micro-Fit Terminal Position Assurance (TPA) Retainer, 20 Circuits, 3.00mm Pitch, UL 94V-0, Low-Halogen, Natural | ![]() |

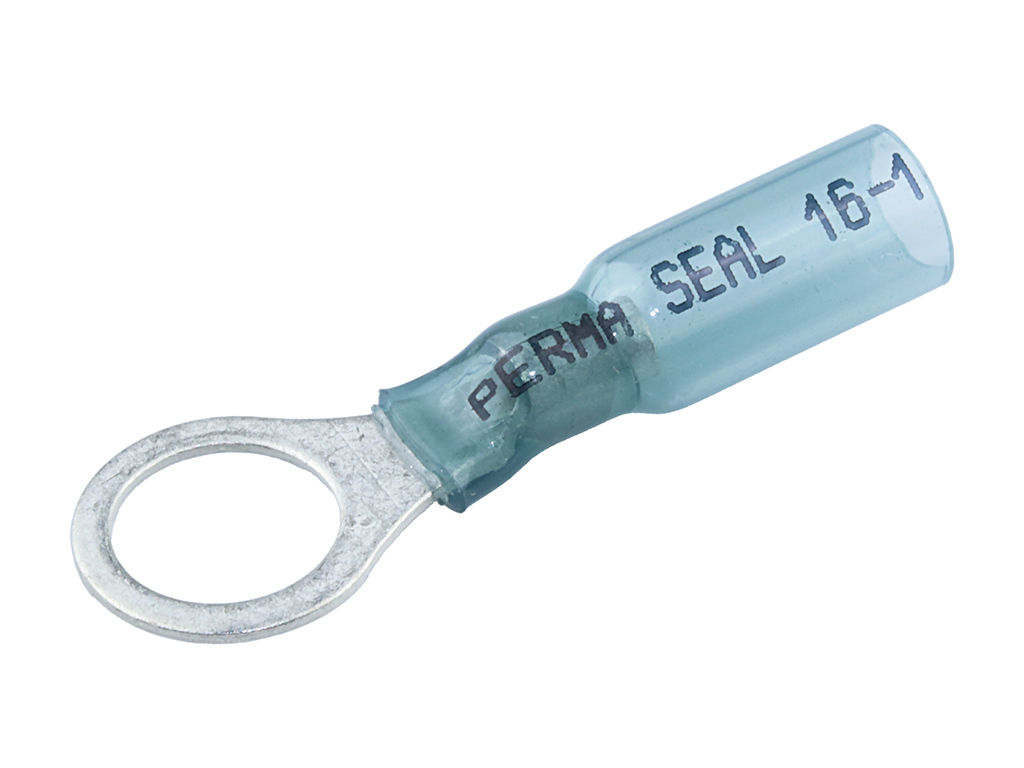

![]() | Molex 19164-0309 | Perma-Seal Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 5/16 (M8), Mylar Tape Carrier | ![]() |
![]() | Molex 19221-0224 | Compression Style Ring Tongue Terminal for 8 AWG Wire, Stud Size 1/4 (M6), Plated | ![]() |
![]() | Molex 19221-0236 | Compression Style Ring Tongue Terminal for 2 AWG Wire, Stud Size 1/2 (M12), Tin Plated, Wide Pad | ![]() |
![]() | Molex 19221-0422 | Compression Style Ring Tongue Terminal for 1/0 AWG Wire, Stud Size 1/4 (M6), Plated | ![]() |

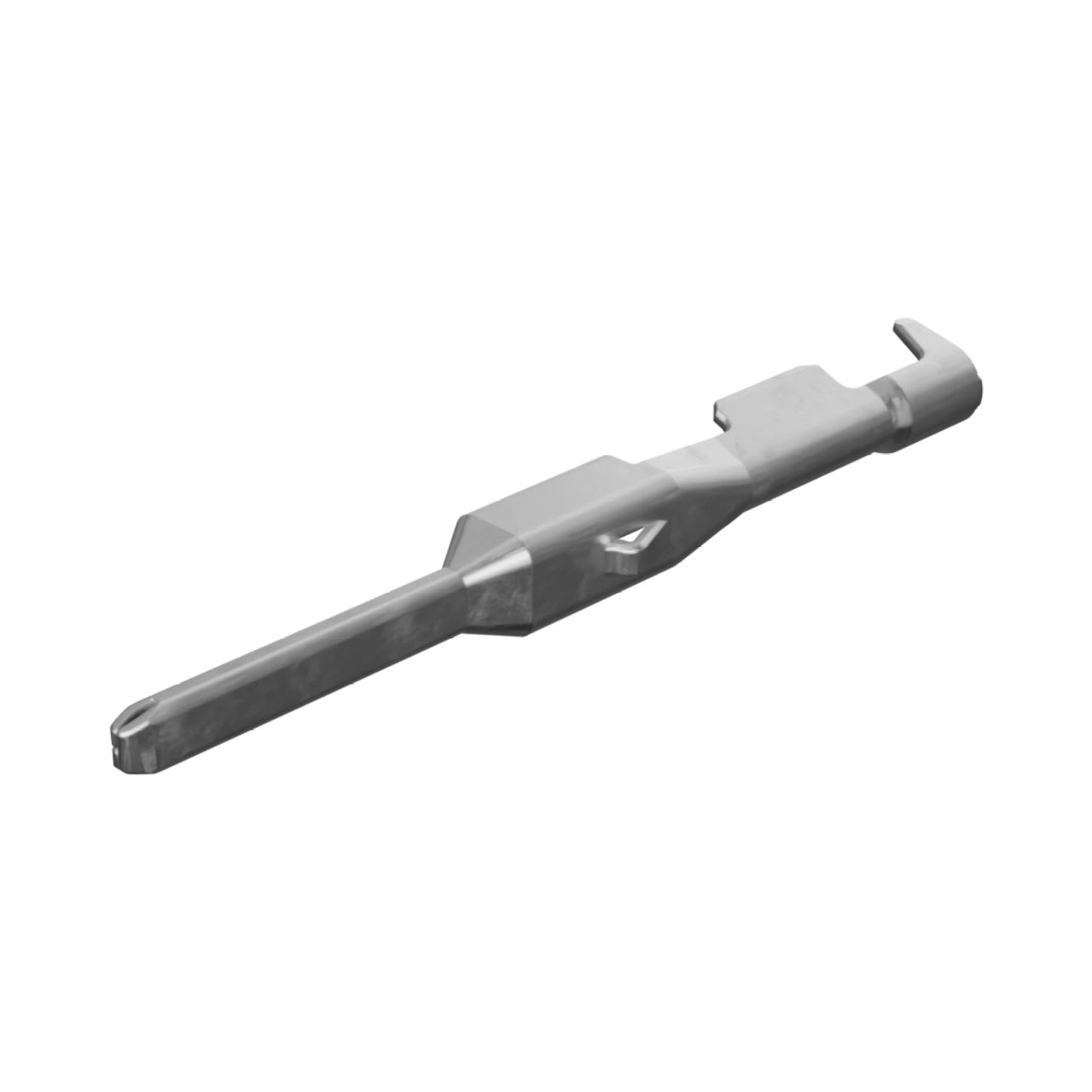

![]() | Molex 33000-0004 | MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm | ![]() |
![]() | Molex 33472-0607 | MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization B, with Connector Position Assurance, Light Gray | ![]() |
![]() | Molex 33472-1206 | MX150 Sealed Female Connector, Dual Row, 12 Circuits, Polarization A, with Connector Position Assurance, Black | ![]() |
![]() | Molex 33472-4806 | MX150 Sealed Female Connector, Dual Row, 8 Circuits, Polarization A, with Connector Position Assurance, Black | ![]() |
![]() | Molex 47725-6010 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization A, Black Housing, Blue Gasket | ![]() |

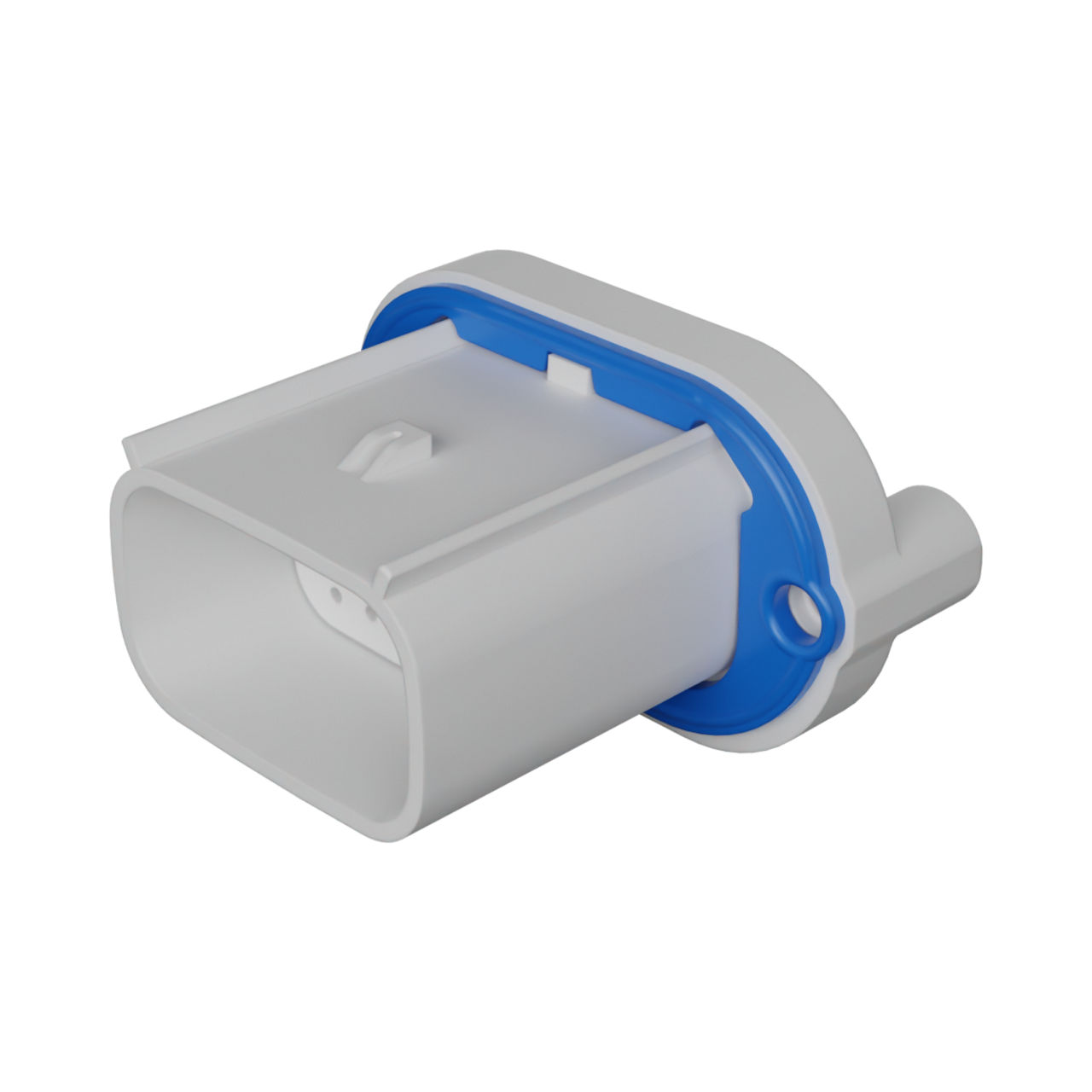

![]() | Molex 47725-6040 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization D, Stone Gray Housing, Blue Gasket | ![]() |
![]() | Molex 500638-0507 | 2.00mm Pitch MircoClasp Wire-to-Board Terminal Position Assurance (TPA) Retainer, Brown, 5 Circuits | ![]() |
![]() | Molex 501646-1000 | 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 10 Circuits | ![]() |

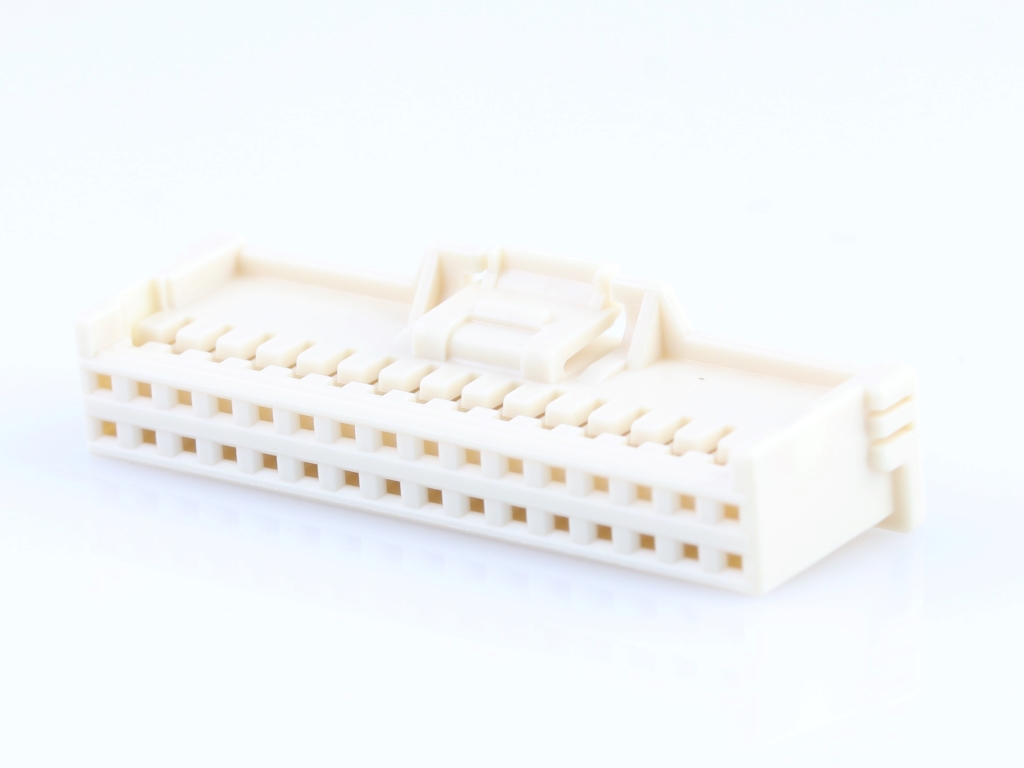

![]() | Molex 501646-3200 | 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 32 Circuits | ![]() |
