47352-1001

ICC Number:	MOL47352-1001
Manufacturer:	Molex
Manufacturer Number:	47352-1001
Datasheet:	Datasheet
ECAD Model:

Description:

1.10mm Pitch microSD Card Connector, Push-Push Type, with VSS (Supply Voltage Ground) Detect Switch, Lead-Free

More >>

Specifications

Attribute	Value
Product Category:	Memory Sockets & Connectors SD & Micro-SD Memory Card Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 47352-1001
Color:	Black
Series:	47352 - microSD Card
Amperage:	.5 A
Connector Type:	microSD Card
Housing Material:	Thermoplastic
Number of Contacts:	8
Termination Method:	Surface Mount
Contact Material:	Copper Alloy
Contact Plating:	Gold Over Nickel
Maximum Operating Temperature:	85 °C
Minimum Operating Temperature:	-20 °C
Pitch:	1.1 mm
Voltage:	100 V DC
Material:	High Temperature Thermoplastic
Shell Material:	Stainless Steel
Operating Temperature Range:	-20 - 85 °C
Contact Mating Area Plating:	Gold over Nickel
Number of Contacts Loaded:	8
Mating Cycles:	5000
PCB Locator:	No
Shielded:	Yes
PCB Retention:	Yes
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	250 °C
Lead Free Process Capability:	REFLOW
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	002
Termination Pitch:	1.1 mm
Card Detection Switch:	Open
Card Entry Location:	Front
Material Flammability Standard:	94V-0
Part Aliases:	0473521001
SKU:	MOL47352-1001

Detailed Description

Easily expand the storage capabilities of your devices with the 47352-1001 microSD Card Connector. This black connector, part of the 47352 series, features a durable thermoplastic housing and surface mount termination for reliable performance. With 8 gold-plated copper alloy contacts, it ensures efficient data transfer at up to 100 V DC. Operating in a wide temperature range from -20 to 85 °C, this connector is suitable for various environments. Its embossed tape packaging and compatibility with lead-free processes make it convenient for assembly. With CSA and UL certifications, as well as RoHS compliance, you can trust in the quality and reliability of this essential component for your electronic projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105057-0001	Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Vertical, 0.76Âµm Gold (Au) Plating, 2.80mm Tail Length, with 3 Beveled Solder Tabs, Tray, Lead-Free
	Molex 15267-0213	1.00mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 178.00mm Cable Length, Tin (Sn) Plating, 6 Circuits
	Molex 15267-0219	1.00mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 254.00mm Cable Length, Tin (Sn) Plating, 6 Circuits
	Molex 15267-0221	1.00mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 305.00mm Cable Length, Tin (Sn) Plating, 6 Circuits
	Molex 19006-0001	Avikrimp Quick Disconnect, Female Flag, for 22-18 AWG (0.80-0.35mmÂ²) Wire, Tab 6.35 x 0.81mm, Red, Carton
	Molex 19069-0038	Krimptite Ring Tongue Terminal for 22-18 AWG Wire
	Molex 19221-0223	Compression Style Ring Tongue Terminal for 8 AWG Wire, Stud Size 10 (M5), Plated,, Carton
	Molex 22-28-4020	KK 254 Breakaway Header, Vertical, 2 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm
	Molex 26-60-4020	KK 396 Header, Vertical, Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 43160-3104	Sabre Right-Angle Header, 4 Circuits, Glow-Wire Capable, PCB Thickness 1.60mm, with Board Lock
	Molex 43645-0400	Micro-Fit 3.0 Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Black

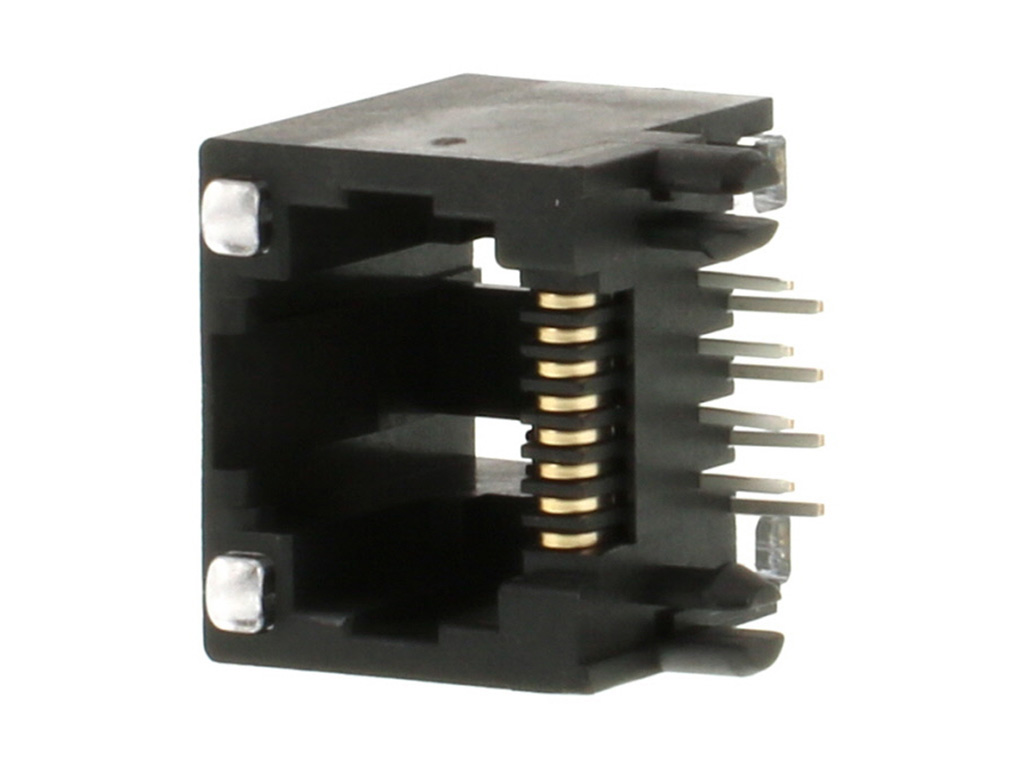

	Molex 43860-0007	Modular Jack, Right-Angle, Low Profile, Inverted, Lightpipes, 8/8
