| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0038 |
| Series: | 19069 - Krimptite |
| Connector Type: | Krimptite |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | None |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .35 - .8 mm² |
| Contact Termination Plating: | Tin |
| Barrel Type: | Closed |
| Part Aliases: | 0190690038 AA-121-10T |
| SKU: | MOL19069-0038 |
19069-0038
Specifications
Detailed Description
Introducing the 19069-0038 Krimptite Ring Tongue Terminal, a versatile connector designed for 18-22 AWG wires. With a durable tin contact plating and a secure crimp or compression termination method, this terminal ensures reliable conductivity in various applications. The closed barrel design offers added protection, while accommodating wire sizes ranging from 18 to 22 AWG (.35 - .8 mm²). RoHS compliant and featuring a 10 (M5) stud size, this terminal is ideal for environmentally conscious projects. Upgrade your connectivity with the 19069-0038 for efficient and dependable wire termination.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-52-0112 | KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Reel, Phosphor Bronze Tin(Sn) |  |
 | Molex 19001-0003 | Avikrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm?), Box, Tab 4.75 x 0.51mm | |
 | Molex 19003-0003 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Mylar Tape, Tab 6.35 x 0.81mm | |

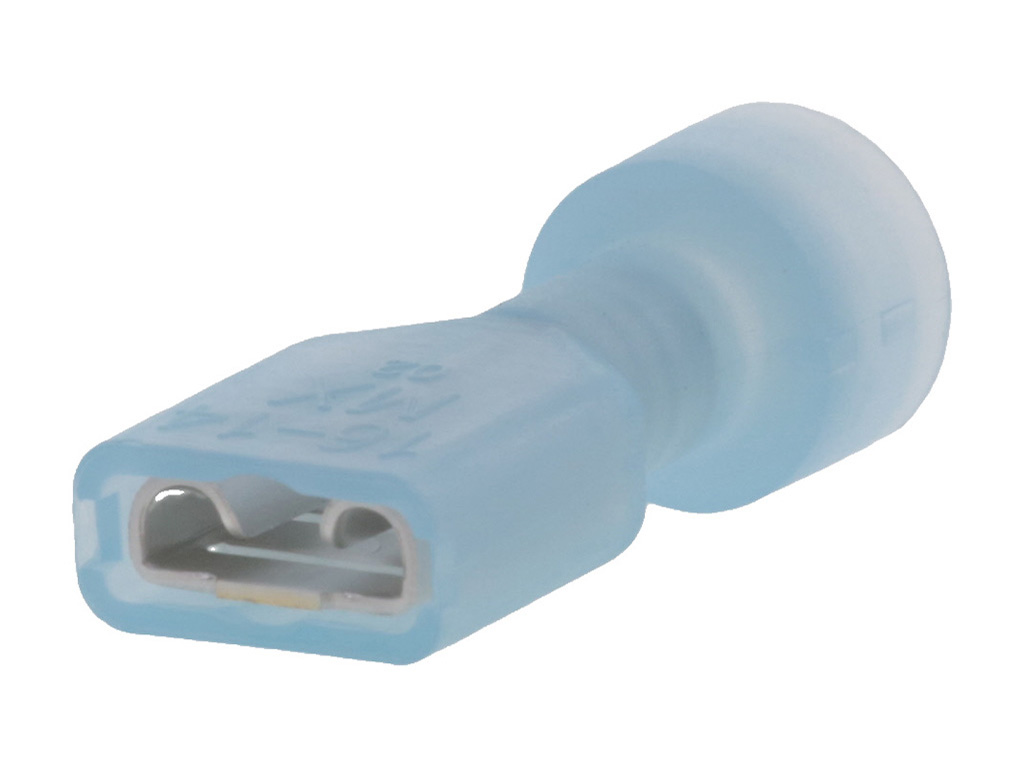

 | Molex 19003-0049 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?), Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19006-0001 | Avikrimp Quick Disconnect, for 18-22 AWG Wire, Female Flag, Tab 6.35 x 0.81mm | |
 | Molex 19007-0024 | Flag InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19017-0012 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 4.75 x 0.51mm | |
 | Molex 19018-0006 | VibraKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |

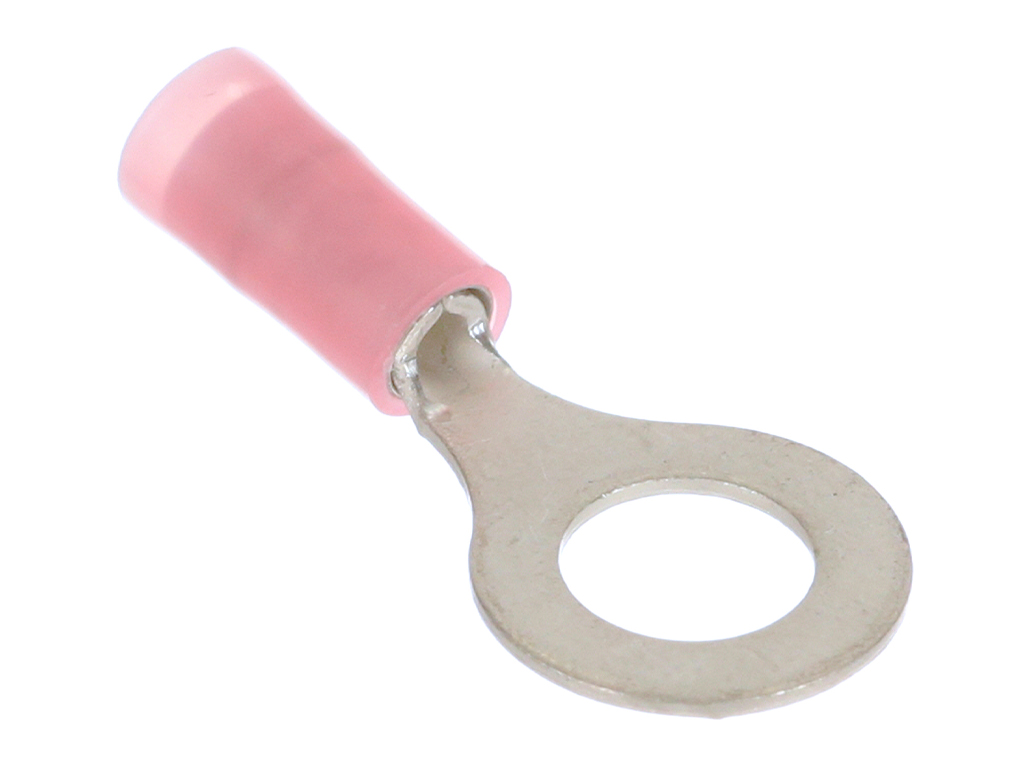

 | Molex 19073-0024 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 1/4 (M6), Length 26.90mm | |
 | Molex 19074-0017 | Krimptite Star Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 8 (M4) | |
 | Molex 19193-0325 | VersaKrimp Ring Tongue Terminal for 1/0 AWG Wire | |
 | Molex 19193-0331 | VersaKrimp Ring Tongue Terminal for 1/0 AWG Wire | |

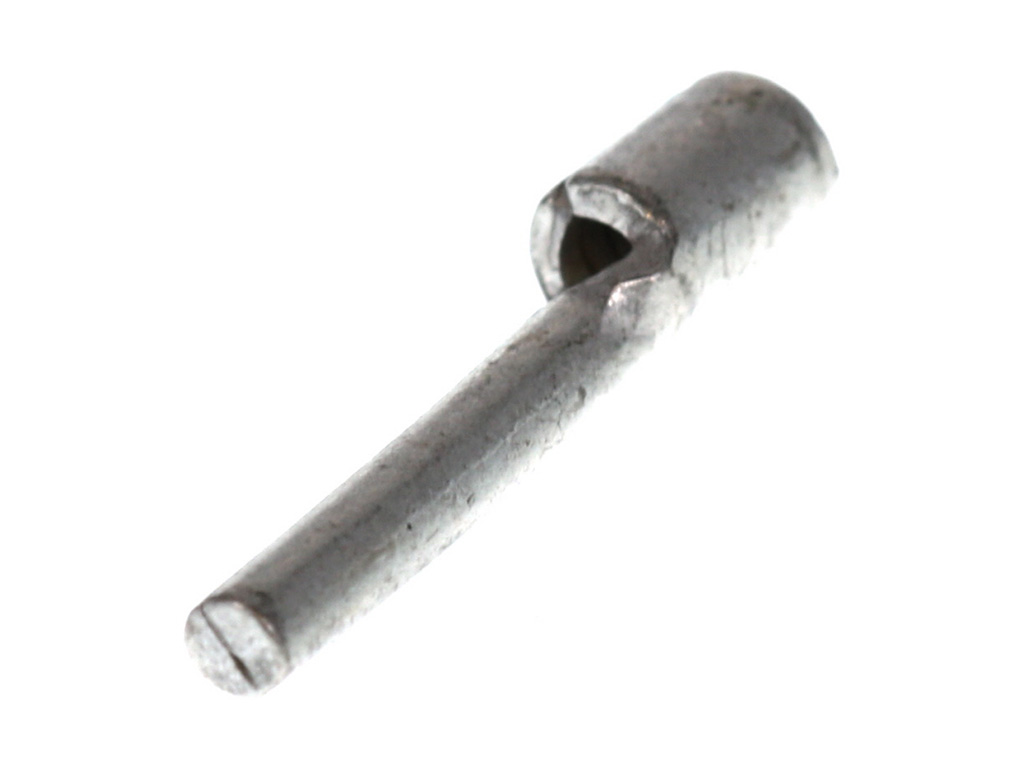

 | Molex 19211-0003 | Krimptite Wire Pin Terminal for 22-18 AWG Wire | |
