| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 46235-0002 |
| Series: | 46235 - Micro-Fit RMF |
| Amperage: | 5 A |
| Connector Type: | Micro-Fit RMF |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper-Zinc-Tin |
| Contact Plating: | Nickel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Mating Cycles: | 40 |
| Contact Termination Plating Thickness: | 1.27 µm |
| Wire Size: | 20 AWG, 22 AWG, 24 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Nickel |
| Wire Insulation Diameter: | 1.85 mm |
| Part Aliases: | 0462350002 |
| SKU: | MOL46235-0002 |
46235-0002
| Heilind Number: | MOL46235-0002 |
| Manufacturer: | Molex |
| Manufacturer Number: | 46235-0002 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Micro-Fit RMF Reduced Mating Force, Crimp Terminal, Female, with 0.76µm Selective Gold (Au) over Nickel (Ni), 24-20 AWG, without Lubricant
More >>Specifications
Detailed Description
Introducing the Molex Micro-Fit RMF Reduced Mating Force Crimp Terminal, a high-performance solution for your power connectivity needs. This female terminal, featuring 0.76µm Selective Gold (Au) over Nickel (Ni) plating, ensures reliable and durable contact with minimal signal loss. Suitable for 24-20 AWG wires, it accommodates a wide range of applications in wire-to-wire or wire-to-board connectors. With a low insertion force of 5 A, it minimizes strain on components during assembly. The copper-zinc-tin construction and nickel-plated termination guarantee excellent conductivity and corrosion resistance. RoHS compliant and rated for 40 mating cycles, this terminal offers long-lasting performance in various environments. Upgrade your connectivity infrastructure with the Micro-Fit RMF Crimp Terminal for seamless and efficient power transmission.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 171692-0106 | Mega-Fit Receptacle Housing, Dual Row, 6 Circuit, UL 94 V-0, Bag |  |

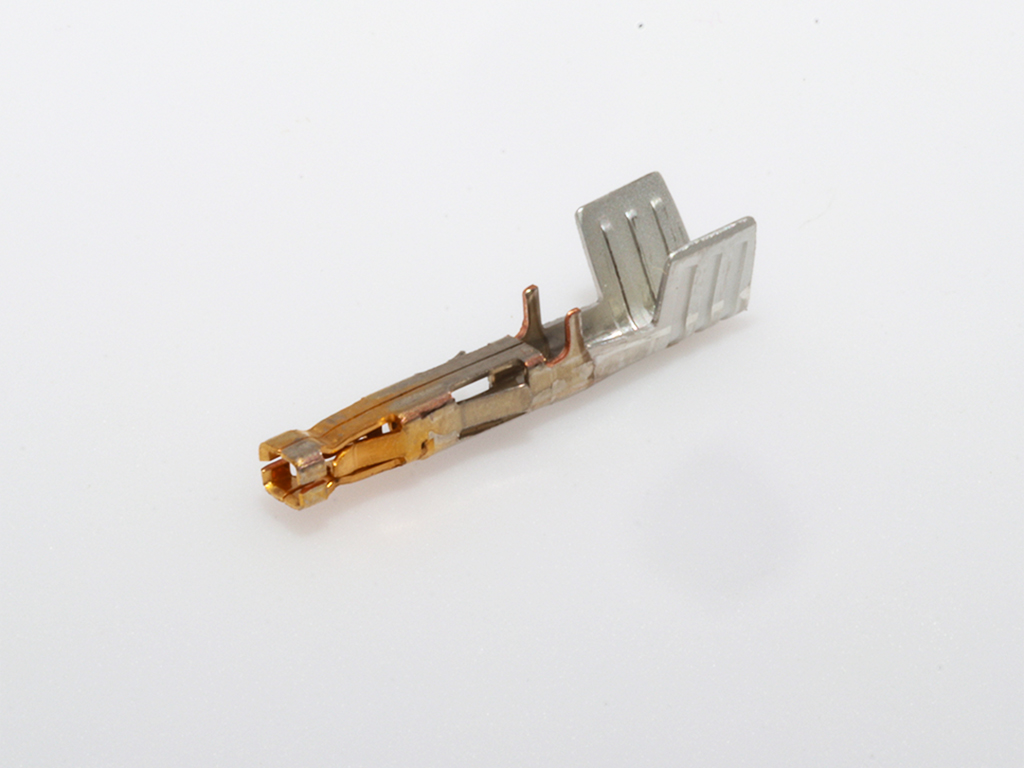

 | Molex 172063-1311 | Mega-Fit Female Crimp Terminal, 14 and 16 AWG 30 | |
 | Molex 39-00-0073 | Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel (Ni), 24-18 AWG, Reel | |
 | Molex 39-01-2061 | Mini-Fit Jr. Plug Housing, Dual Row, 6 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
 | Molex 42816-0212 | 10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 2 Circuit, Black | |
 | Molex 43025-0400 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43025-0600 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43025-0800 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43025-1600 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 16 Circuits, UL 94V-0, Black | |
 | Molex 43645-0308 | Micro-Fit 3.0 Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen Since Inception, Black | |
 | Molex 43914-1101 | 10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Dual Row, 6 Circuits, Black | |

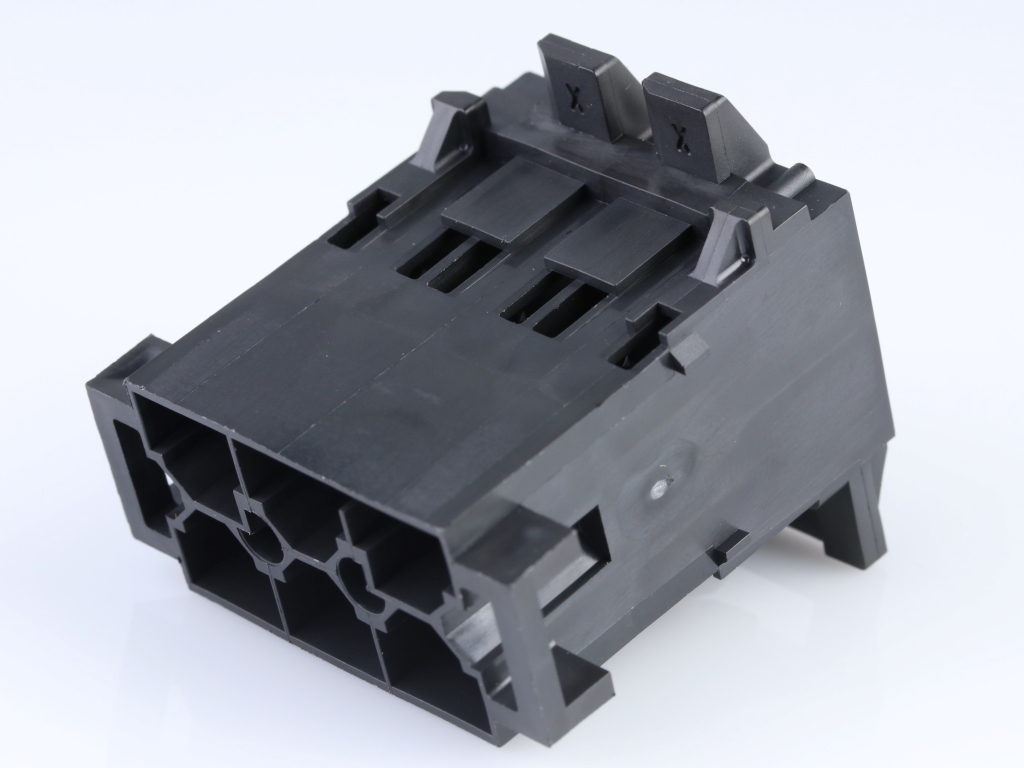

 | Molex 43938-2101 | 10.00mm Pitch Mini-Fit Sr. Plug Housing, Dual Row, Panel Mount, 6 Circuits, Black | |
