504052-0098

Heilind Number:	MOL504052-0098
Manufacturer:	Molex
Manufacturer Number:	504052-0098
Datasheet:	Packaging Specifications
ECAD Model:

Description:

1.50mm Pitch Pico-Lock Crimp Terminal, Reel, AWG 24-28

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 504052-0098
Series:	504052 - Pico-Lock
Amperage:	3 A
Connector Type:	Pico-Lock
Gender:	Female
Contact Material:	Copper Alloy
Contact Plating:	Gold Over Nickel
Voltage:	150 V
Circuit Application:	Power, Signal
Contact Mating Area Plating:	Gold over Nickel
Mating Cycles:	30
Wire Size:	24 AWG, 26 AWG, 28 AWG
Connector System:	Wire to Board, Wire to Wire
Wire Insulation Diameter:	.8 - 1.15 mm
Part Aliases:	5040520098
SKU:	MOL504052-0098

Detailed Description

Introducing the Molex Pico-Lock 504052-0098, a high-performance female connector designed for signal and power applications. With a low amperage of 3A and a maximum voltage of 150V, this connector ensures reliable performance in various electronic systems. Featuring durable copper alloy contacts plated with gold over nickel, it offers excellent conductivity and corrosion resistance. The Pico-Lock connector is compatible with 24-28 AWG wires, with a mating cycle of 30, guaranteeing long-term durability. Its compact design and wire-to-wire or wire-to-board connectivity make it ideal for space-constrained applications. RoHS compliant and in stock, the Pico-Lock 504052-0098 is the perfect choice for your high-reliability connector needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105307-2203	Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 3 Circuits, Natural, Glow-Wire Capable

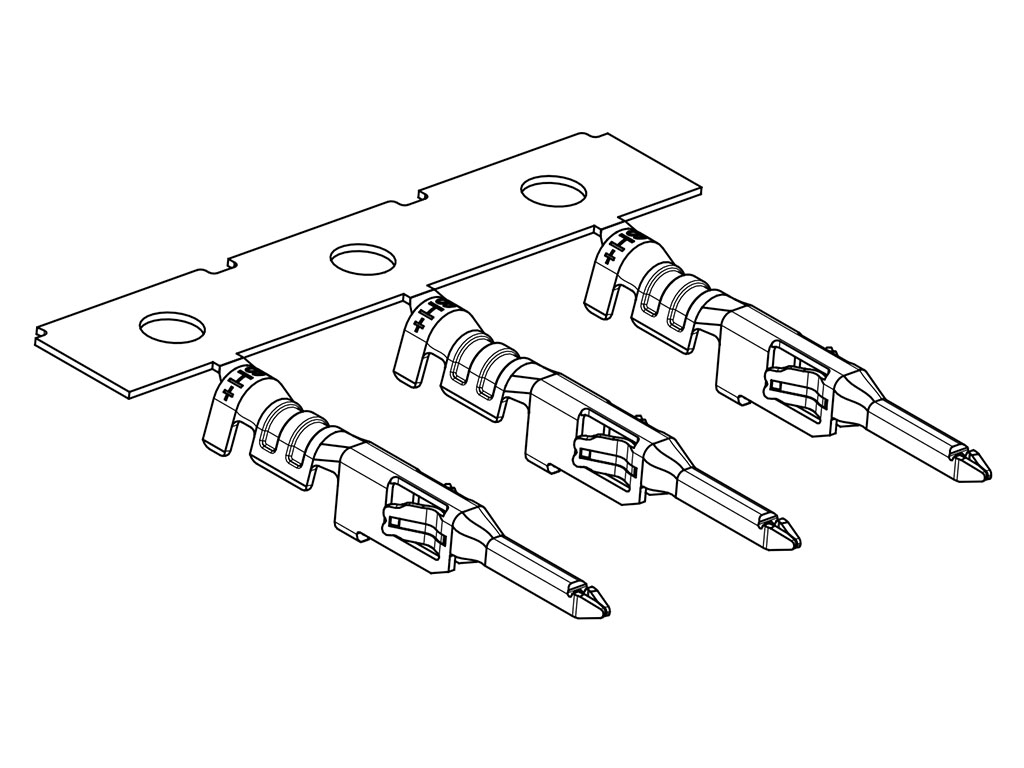

	Molex 35021-1201	Board-In Right Angle Crimp Terminal 35021, Reel, Brass Tin (Sn)
	Molex 501334-0000	Pico-Clasp 1.00mm Pitch Wire-to-Board Crimp Terminal, 28-32 AWG, Tin Plating, Reel
	Molex 504051-0301	Pico-Lock 1.5 W/B Rec Hsg 3P
	Molex 504051-0401	1.50mm Pitch Pico-Lock Crimp Housing, 2.00mm Mated Height, Positive Side Locks, 4 Circuits
	Molex 504051-0601	1.50mm Pitch Pico-Lock Crimp Housing, 2.00mm Mated Height, Positive Side Locks, 6 Circuits
	Molex 504051-0801	1.50mm Pitch Pico-Lock Crimp Housing, 2.00mm Mated Height, Positive Side Locks, 8 Circuits

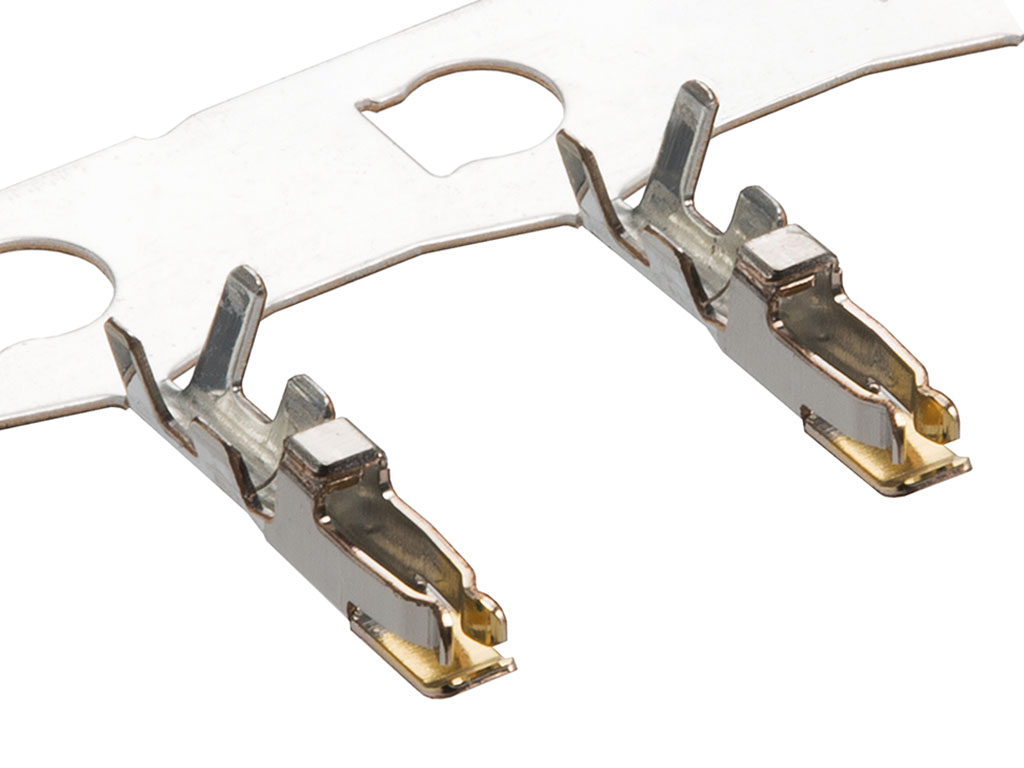

	Molex 505431-1100	Micro-Lock PLUS 1.25mm Pitch Receptacle Terminal, Gold, 26-30 AWG
