39-30-1020

ICC Number:	MOL39-30-1020
Manufacturer:	Molex
Manufacturer Number:	39-30-1020
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-30-1020
Gender:	Male
Number of Contacts:	2
Number of Rows:	2
Contact Material:	Brass
Contact Plating:	Tin
Pitch:	4.2 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-2
Current Rating:	13 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Right Angle
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL39-30-1020

Detailed Description

Introducing the Mini-Fit Jr. Header, a versatile and reliable connectivity solution for your PCB projects. This dual-row header features a convenient right-angle design, complete with a snap-in plastic peg for secure PCB locking. With 2 circuits and 2.54µm Matte Tin (Sn) plating on durable Nylon 6/6 construction, it ensures excellent performance and longevity. Rated for 13 A and 600 V, this header is suitable for a wide range of applications. Its brass contacts and through-hole termination method guarantee robust connectivity, while its compact 4.2 mm pitch saves valuable board space. RoHS compliant and lead-free process capable, the Mini-Fit Jr. Header is both environmentally friendly and industry-approved. Trust in its quality and dependability for your next project.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105133-0031	Micro-USB B Receptacle with Flange, Vertical, Surface Mount, 9.80mm Height, 2.30mm Solder Tabs, with Cover, Lead-Free
	Molex 39-28-1023	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1043	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1083	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1103	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-0040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 39-30-1039	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-1040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural
	Molex 39-30-1060	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural
	Molex 39-30-1140	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 14 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural
	Molex 39-30-3035	Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, PA Polyamide Nylon 6/6, 94V-2, Tin (Sn) Plating
	Molex 43045-0200	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43045-0600	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43650-0227	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black

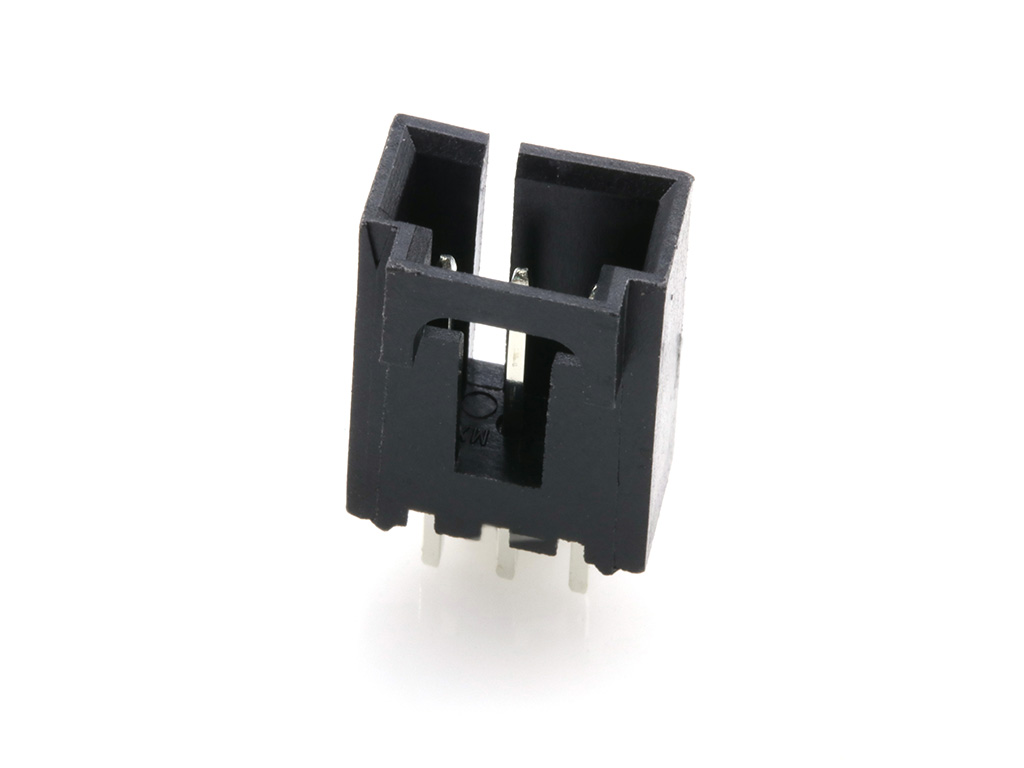

	Molex 70543-0037	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 3 Circuits, Tin (Sn) Plating
