87831-0820

ICC Number:	MOL87831-0820
Manufacturer:	Molex
Manufacturer Number:	87831-0820
Datasheet:	Datasheet
ECAD Model:

Description:

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, Shrouded, 8 Circuits, 0.38µm Gold (Au) Plating, 2.50mm Tail Length, Dual Side Slots, Center Polarization, Tube

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87831-0820
Gender:	Male
Number of Contacts:	8
Number of Rows:	2
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Pitch:	2 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	2 A
Voltage Rating:	125 V
Operating Temperature:	-55 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL87831-0820

Detailed Description

Introducing the 87831-0820, a black Milli-Grid connector designed for high performance in electronic applications. With a low amperage rating of 2A and featuring 8 contacts arranged in 2 rows, this connector ensures reliable power and signal transmission. Constructed with a durable nylon body and phosphor bronze contacts plated with gold, it offers excellent conductivity and resistance to wear. Its straight body orientation and through-hole termination method make it easy to install on PCBs, while its vertical orientation saves space in compact designs. With UL and CSA agency certifications, as well as RoHS compliance, this connector guarantees safety and environmental responsibility. Whether used in consumer electronics or industrial machinery, the 87831-0820 is a dependable solution for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 22-03-2061	KK 254 Wire-to-Board Header, Single Row, Vertical, 6 Circuits, PA Polyamide Nylon, Tin (Sn) Plating
	Molex 22-05-3031	KK 254 Solid Header, Right-Angle, with Friction Lock, 3 Circuits, Matte Tin (Sn) Plating
	Molex 22-23-2031	KK 254 Solid Header, Vertical, with Friction Lock, 3 Circuits, 2.54µm Matte Tin (Sn) Plating, 3.56mm Tail Length

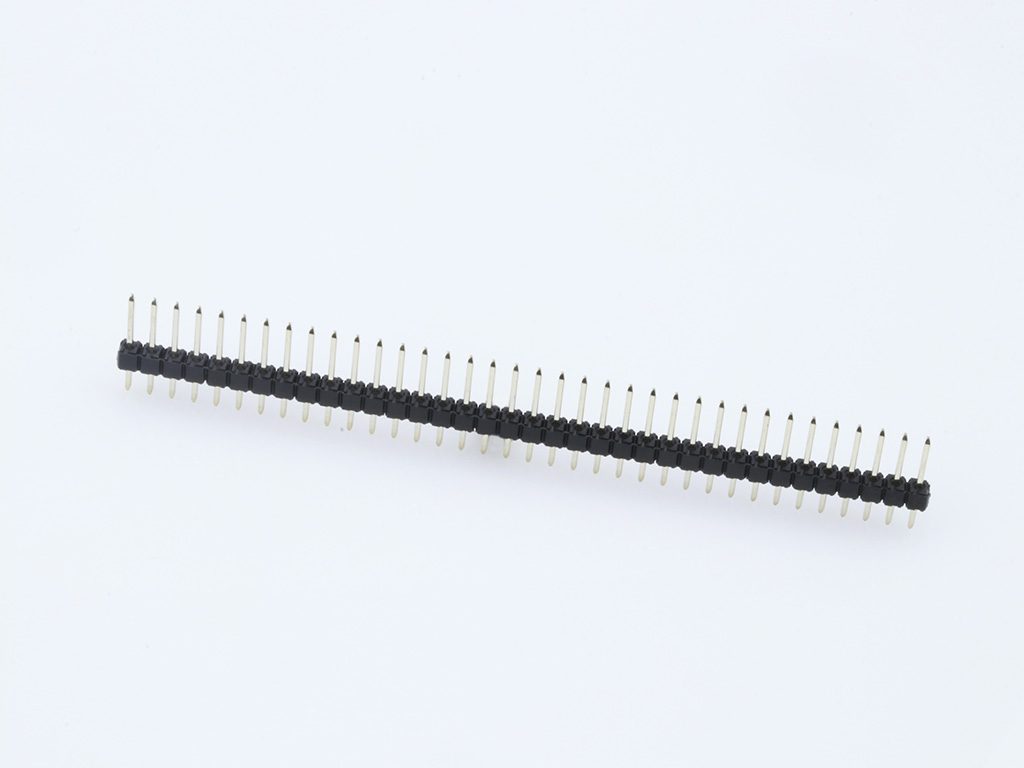

	Molex 22-28-4361	KK 254 Breakaway Header, Vertical, 36 Circuits, Tin (Sn) Plating, Mating Pin Length 8.13mm
